2010-2018 Sprinter 3500/3500XD 2WD Suspension Lift Kit (7020-KIT)

The Striker 2" front suspension lift system gives your 2WD Sprinter the clearance it needs to take you farther on your next adventure. This bolt-on kit opens up room for tires up to 33", helping you avoid obstacles on the trail, while retaining the stock suspension geometry, payload rating, and ride quality, so you get all the benefits of added clearance with none of the usual downsides.

Features

• Bolt-on front lift system for added ground clearance
• Provides clearance for tires up to 33"
• Retains stock suspension geometry, payload rating, and ride quality
• Components constructed of high-quality materials in the USA
• Powder coated for durability and corrosion resistance

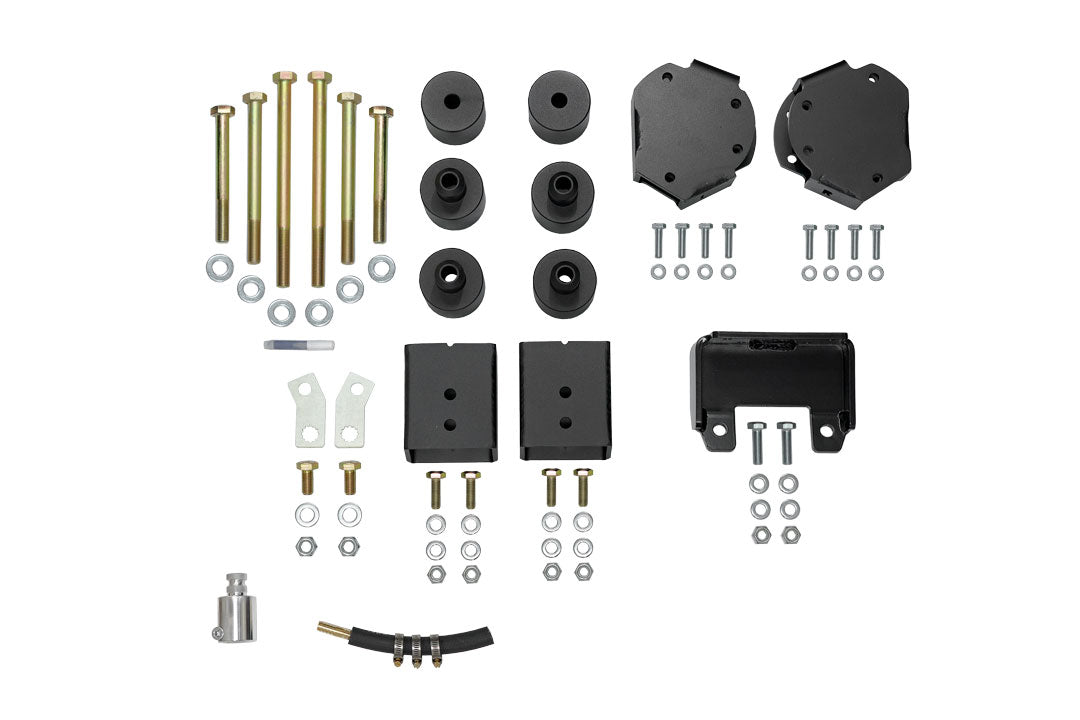

Included Components

• Front 2" strut spacers
• Front 2" subframe drop spacers
• Engine and transmission mount 2" lift spacers
• CNC Machined 2" steering shaft extension
• Low pressure power steering hose extension
• Front brake line relocation brackets
• All necessary hardware and detailed instructions

Important Notes

• Raises Front 2"
• Minor front bumper/fender and rear fender modification required to clear 33" tire. Max 3500 tire - 235/85/16

Installation Instructions

• NCV3 2500 Front Lift Installation Instructions
• NCV3 3500 Front Lift Installation Instructions

Labor Time

Recommended shop labor time: 8 hours.

Specifications

• Maximum Lift: 2.0 IN
