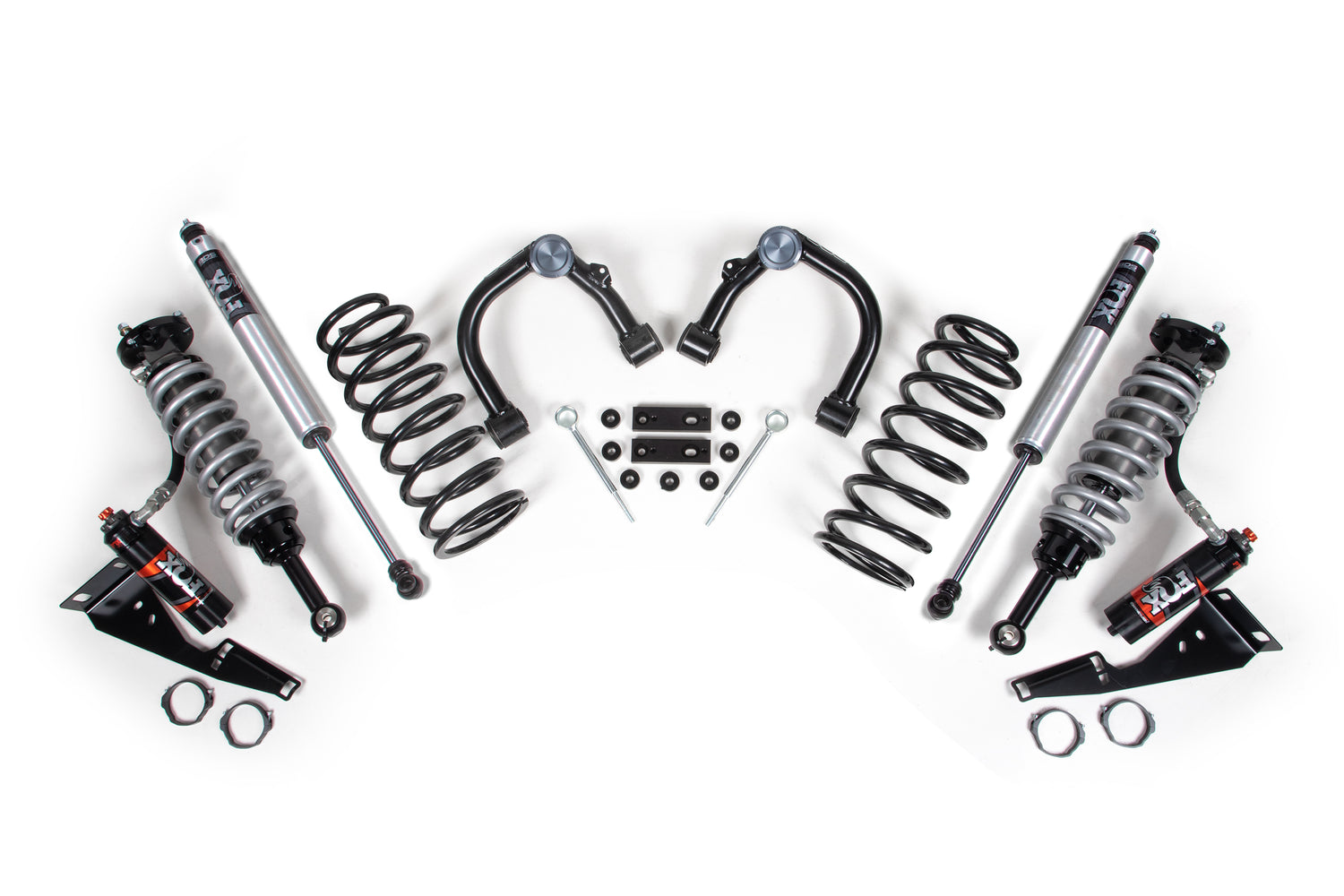

2010-2024 4Runner 3" Lift FOX 2.5 Front Coilover XT Lift Kit (BDS841FPE)

Engineered for serious 4Runner enthusiasts, this BDS Suspension 3" lift system transforms your Toyota 4Runner's capability. The FOX 2.5 Performance Elite coil-overs up front deliver responsive damping and improved articulation, while the 1.5" rear spring lift maintains balanced geometry. Heavy-duty tubular upper control arms ensure durability under demanding terrain. Fox's 2.5 rear shocks to dial in ride characteristics. The result: enhanced ground clearance, superior traction, and increased payload capacity for serious off-road adventures.

Features

• Highly engineered upper control arms featuring 1.5" tubular steel construction with indexed ball joint to provide maximum travel with factory style rubber bushings which provide long lasting maintenance free operation.
• Factory Protection Plus drivetrain warranty included
• Easy, 100% Bolt on installation
• XTra Travel: Surpass the ordinary with enhanced travel that takes off-road capability to new heights.

Shock Features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Notes

• Will not work on TRD Pro models equipped with the X-REAS shock system.
• Will not work with factory KDSS sway bar system.
• Other equivalent tire/wheel size options should work - may require minor trimming for some combinations.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 3"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 1.5"
• Shocks Included : Yes
• Lift Height : 2-3.5"

Tire Fitment

• 285 / 70 with 17 x 8 and 5 in. Backspace
