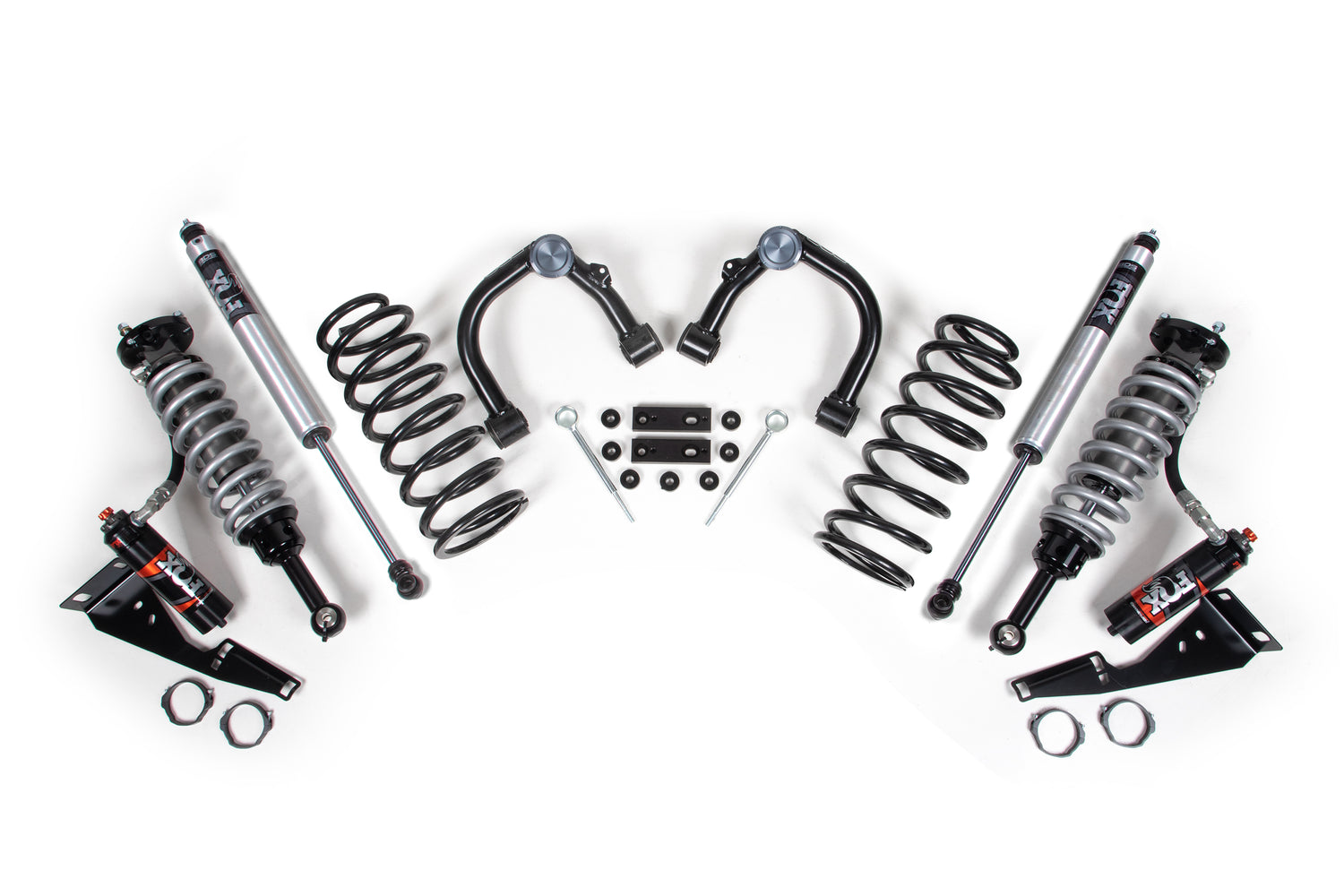

2010-2024 4Runner 3" Lift FOX 2.0 Front Coilover Kit (BDS841PSS)

Description

Designed for 2010-2023 Toyota 4Runner 4WD vehicles, this suspension system pairs FOX 2.0 Performance series front coil-over shocks with 1.5-inch rear springs to deliver a 3-inch elevation. The setup enhances both on and off-road performance while delivering an aggressive stance. Accommodate up to 285/70R17 tires for increased ground clearance and improved traction across diverse terrain conditions.

Features

• Highly engineered upper control arms featuring 1.5" tubular steel construction with indexed ball joint to provide maximum travel with factory style rubber bushings which provide long lasting maintenance free operation.
• Factory Protection Plus drivetrain warranty included
• Easy, 100% Bolt on installation


Shock Features

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Notes

• Will not work on TRD Pro models equipped with the X-REAS shock system.
• Will not work with factory KDSS sway bar system.
• Other equivalent tire/wheel size options should work - may require minor trimming for some combinations

Specs

• Front Lift Method : Coil-Over
• Front Lift Height : 3"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 1.5"
• Shocks Included : Yes
• Lift Height : 2-3.5"
