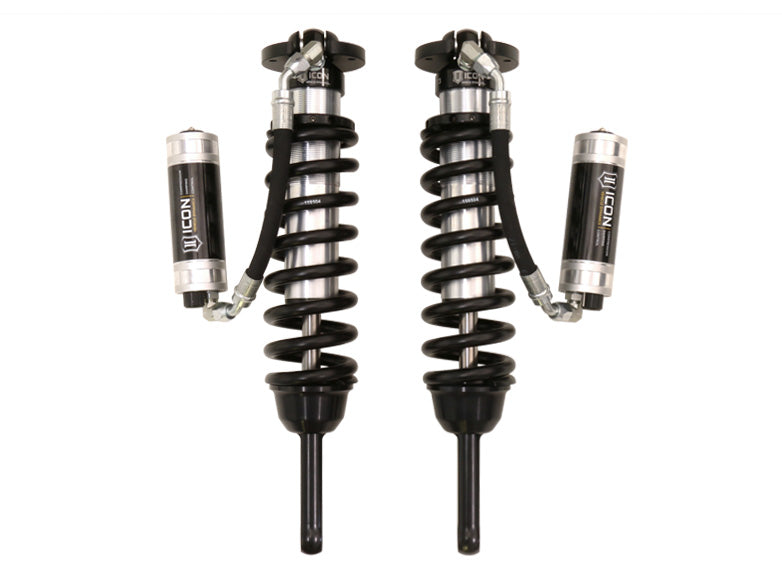

2010-2024 4Runner 2.5 RR CDCV Front Coilover Kit (ICO58746C)

Drop in serious suspension performance on your 2010-2024 4Runner with ICON 2.5 Series coilovers. Remote reservoirs keep temps down and damping consistent when you push hard. CDCV technology lets you dial in compression damping on the fly — no tools needed. Adjustable from 0-3.5" of lift over stock.

Features

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable ride height for 0-3.5" of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
• ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
• Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Important Notes

• 700lb coil spring available for heavier equipped vehicles.
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
• Standard travel length coilovers are compatible with stock front upper control arms

Manufacturer Description

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5" of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible, while still being compatible with the vehicle’s stock front upper control arms, along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.
