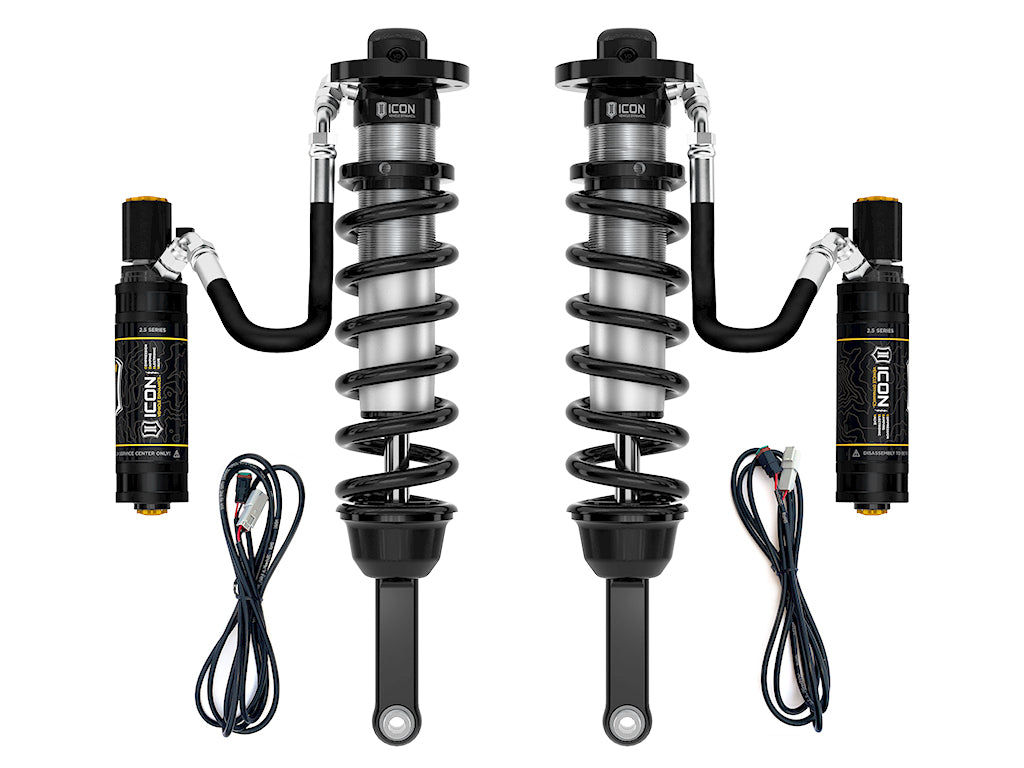

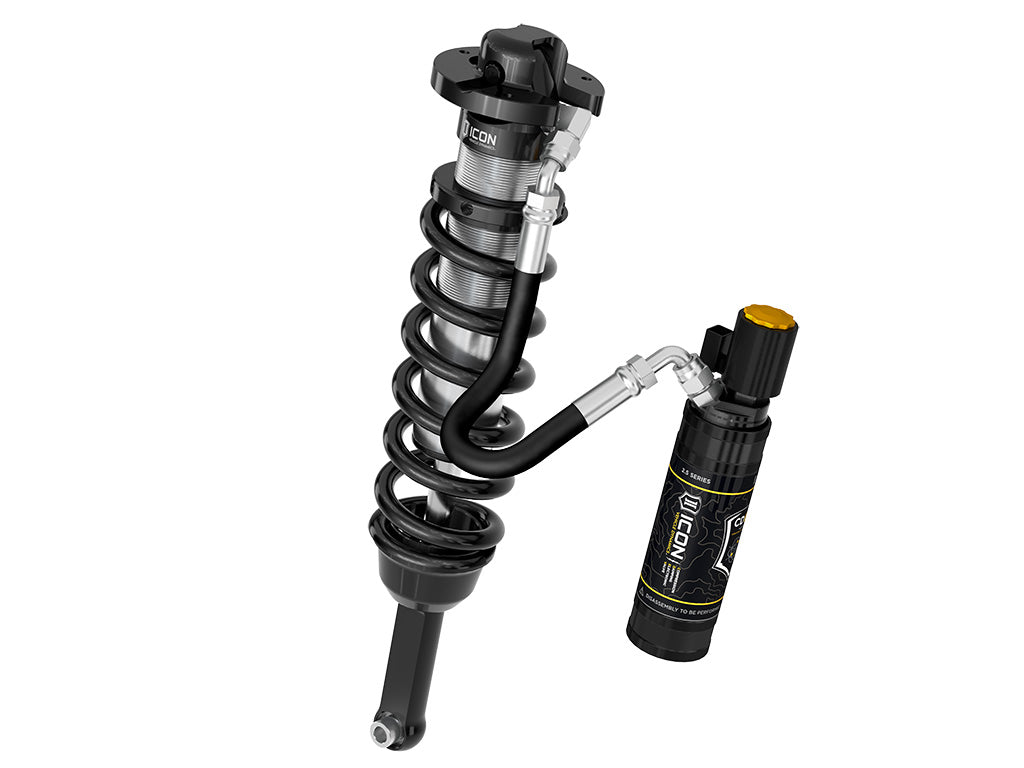

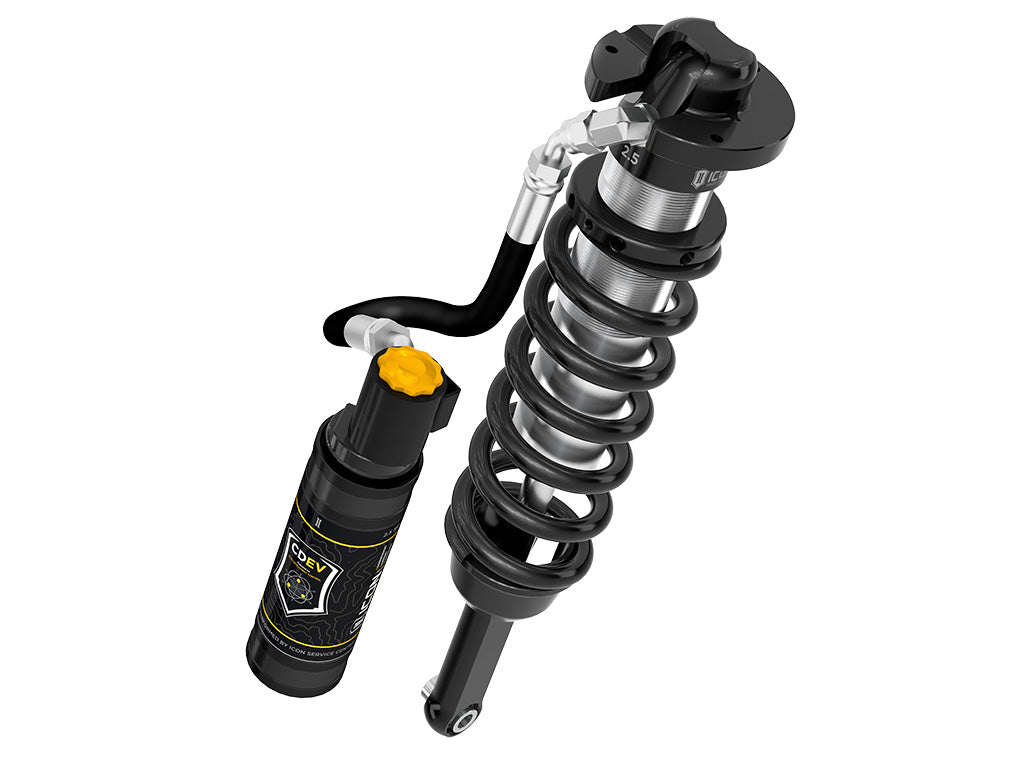

2010-2024 4Runner 2.5 RR CDEV Front Coilover Kit (ICO58747E-700)

Drop in serious suspension performance on your 2010-2024 4Runner with ICON 2.5 Series coilovers. Remote reservoirs keep temps down and damping consistent when you push hard. Adjustable from 0-3.5" of lift over stock.

Features

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 0-3.5" of lift height over stock
• ICON engineered coil springs with 700 lbs/in spring rate
• External reservoirs to attain cooler operating temperatures during extended off-road use
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• FK rod end bearings for extended longevity and minimal deflection
• Bolt-on kit - no cutting or welding necessary for installation
• 100% Rebuildable
• 100% Revalveable

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
• ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
• Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Important Notes

• These systems are to be used with aftermarket upper control arms only.
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
• Also requires installation of IIC kit (Part # 53504) and CDEV rear shocks (Part # 57810EP)
• 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.

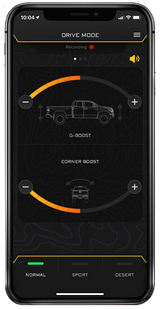

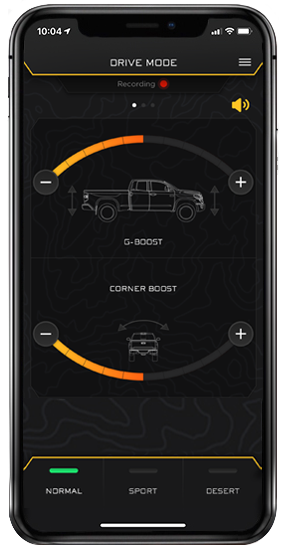

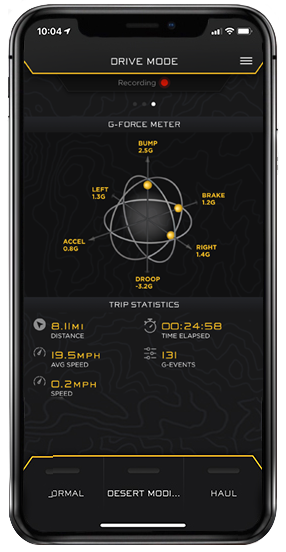

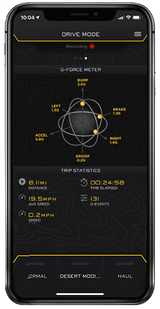

• An iOS operated device is required to run ICON Intelligent Control App

Manufacturer Description

The ICON Vehicle Dynamics V.S. Series 2.5" remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2010-2024 Toyota 4runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability for use of larger, more aggressive wheel and tire combinations. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. ICON's larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
