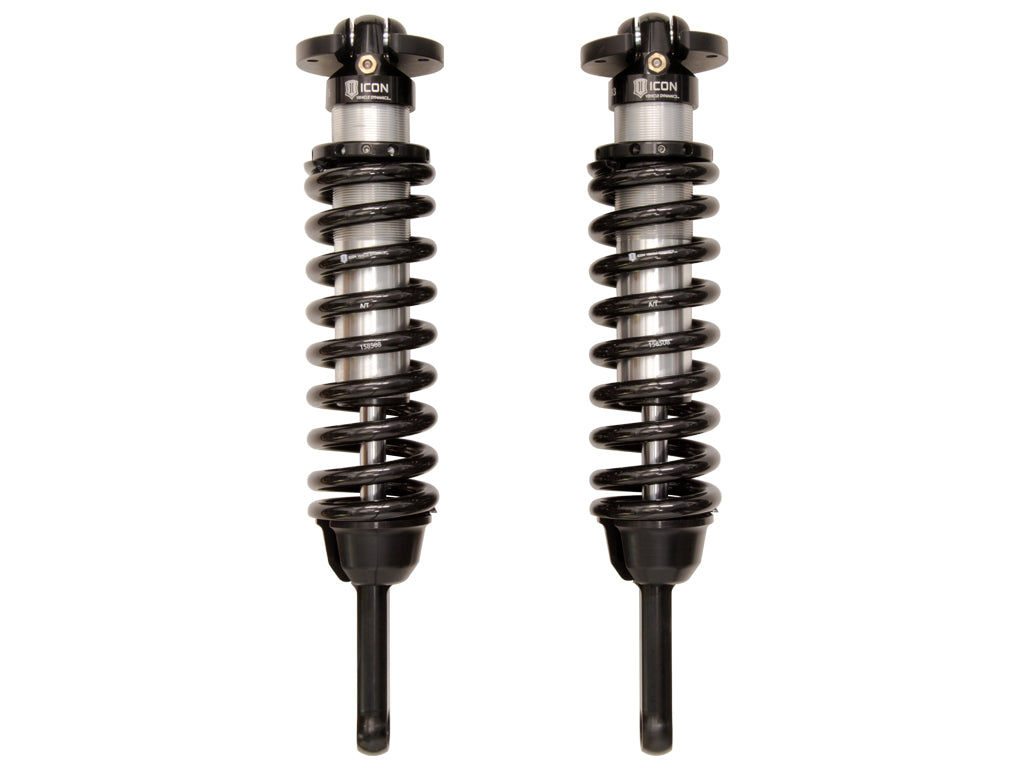

2010-2024 FJ 4Runner 2.5 IR Front Coilover Kit (ICO58647-700)

Drop in serious suspension performance on your 2010-2024 4Runner with ICON 2.5 Series coilovers.

Features

• Adjustable coilovers yield 0-3.5" of front lift height
• Coil springs rated at 700 lb-in
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Extended Travel length requires installation of aftermarket front upper control arms
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
• ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
• Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Important Notes

• These systems are to be used with aftermarket upper control arms only.
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
• 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.

Manufacturer Description

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5" of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel shock length yields the maximum travel possible with aftermarket front upper control arms and ICON’s Vehicle-specific valving along with the larger 2.5" shock body and increased piston area over stock components provide superior ride quality and suspension performance both on- and off-road. Coil springs with increased spring rate are included to help support added weight of accessories such as bumpers, winches, etc., and help ensure proper lift heights for heavier equipped vehicles. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.
