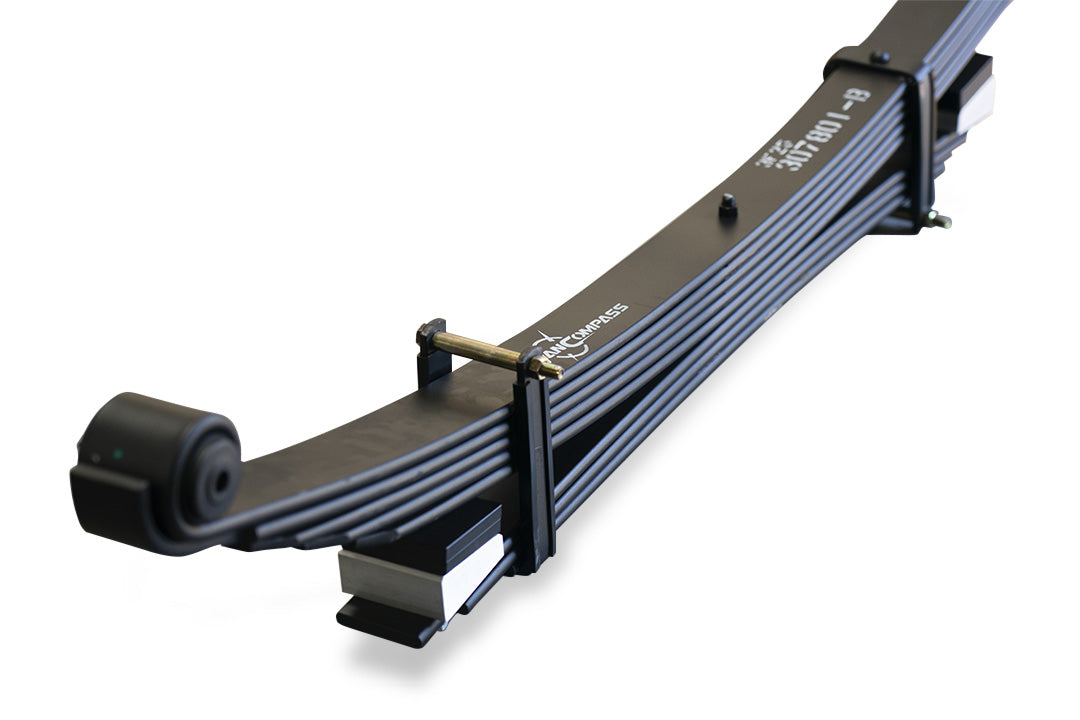

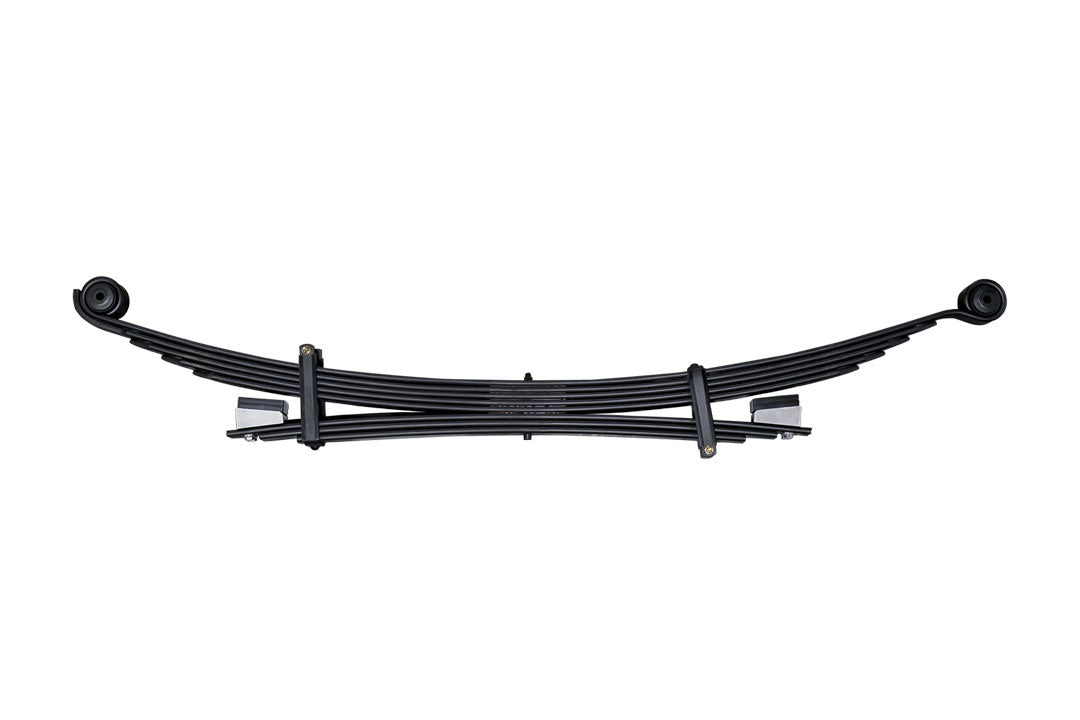

2010-2026 Sprinter 2500 2WD Leaf Spring (3078)

Dial in your Sprinter 2500's ride height and spring rate with the Van Compass Opti-Rate leaf spring, the culmination of over a decade of leaf spring tuning. Built-out vans often suffer harsh bottom-out from the constant weight they carry, and this industry-first tunable preload system finally makes one spring a true one-size-fits-all solution. Whether you run light or fully loaded, the Adjustable Preload Spacers let you tune both spring rate and ride height in a single package.

Features

• Industry-first tunable preload system for adjustable spring rate and ride height
• Three-part design: primary main springs, a 3-leaf secondary stage, and Adjustable Preload Spacers (APS)
• Run with no APS for the softest ride, 1 delrin glide pad for medium weight, or 2 pads for maximum rate and height
• Preload spacers adjust with just a floor jack, socket wrench, and mallet, with springs left in the vehicle
• Restores lost ride height without adding excessive lift
• Fully compatible with lift blocks and rear geometry components for use with Van Compass 2" lift kits

Included Components

• Opti-Rate Full Replacement Leaf Springs (matched pair)
• 4 Billet Adjustable Preload Spacer Blocks
• 4 Top preload spacers glide pads
• 4 Middle preload spacers
• U-bolts and Nuts

Important Notes

• Raises Rear 2" - 2.5"
• with 2" Lift Kit
• These require truck freight to ship; providing a commercial address will help save on shipping costs.
• These springs are designed for a minimum 2" of lift over a stock height, unloaded van. Striker rear lift kit required to maintain proper suspension geometry.
• Progressive rate leaf springs operate differently to factory style parabolic leaf springs. Periodic maintenance, lubrication and deep cleaning may be necessary to maintain quiet, optimum operation.

Labor Time

Recommended shop labor time: 2 hours.

Specifications

• Material: Steel
• Color: Black
