2010-2026 Sprinter 2500 2WD Rear Mini Spring Pack, 3 Leaf, 1.25" Lift Sag Correction (3016-023)

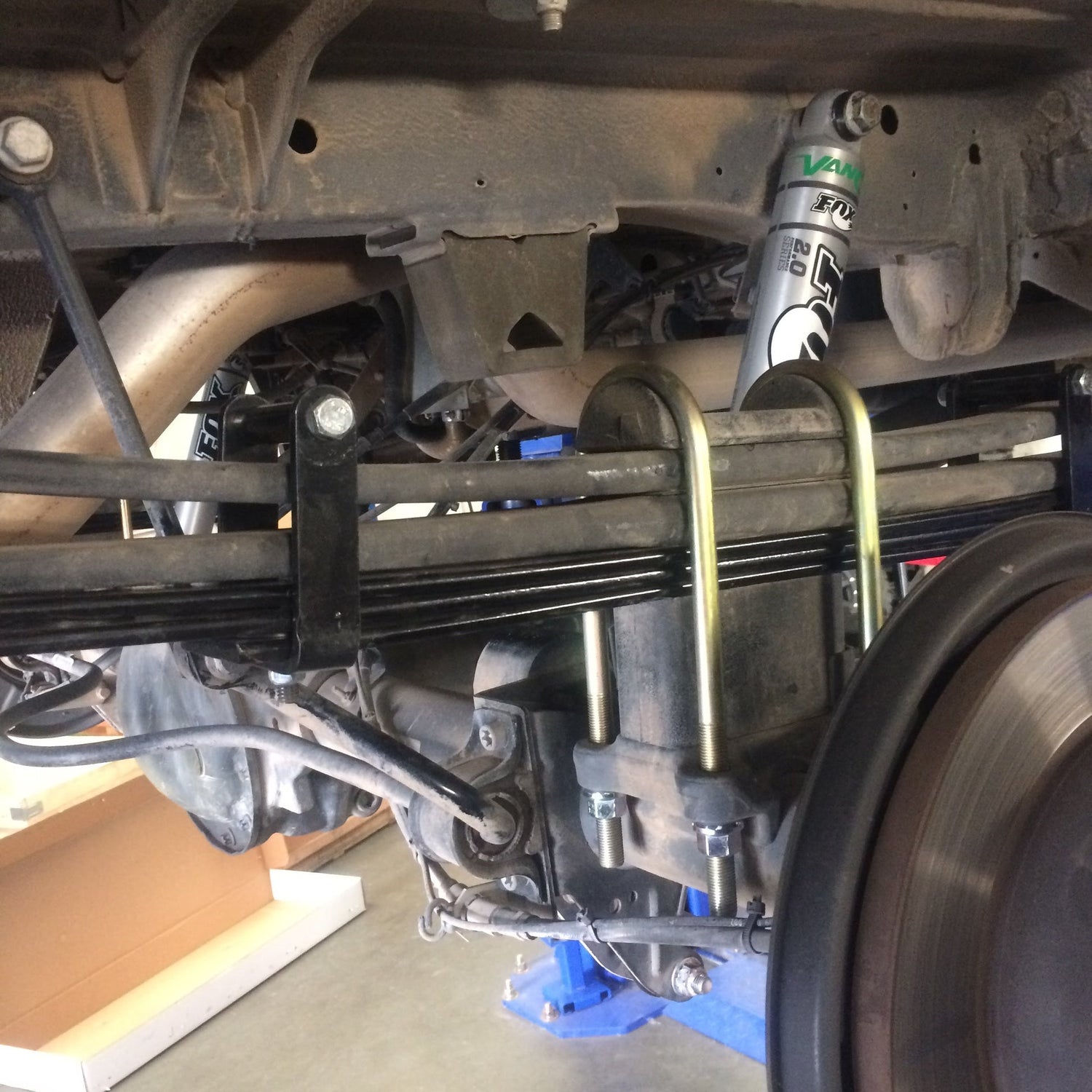

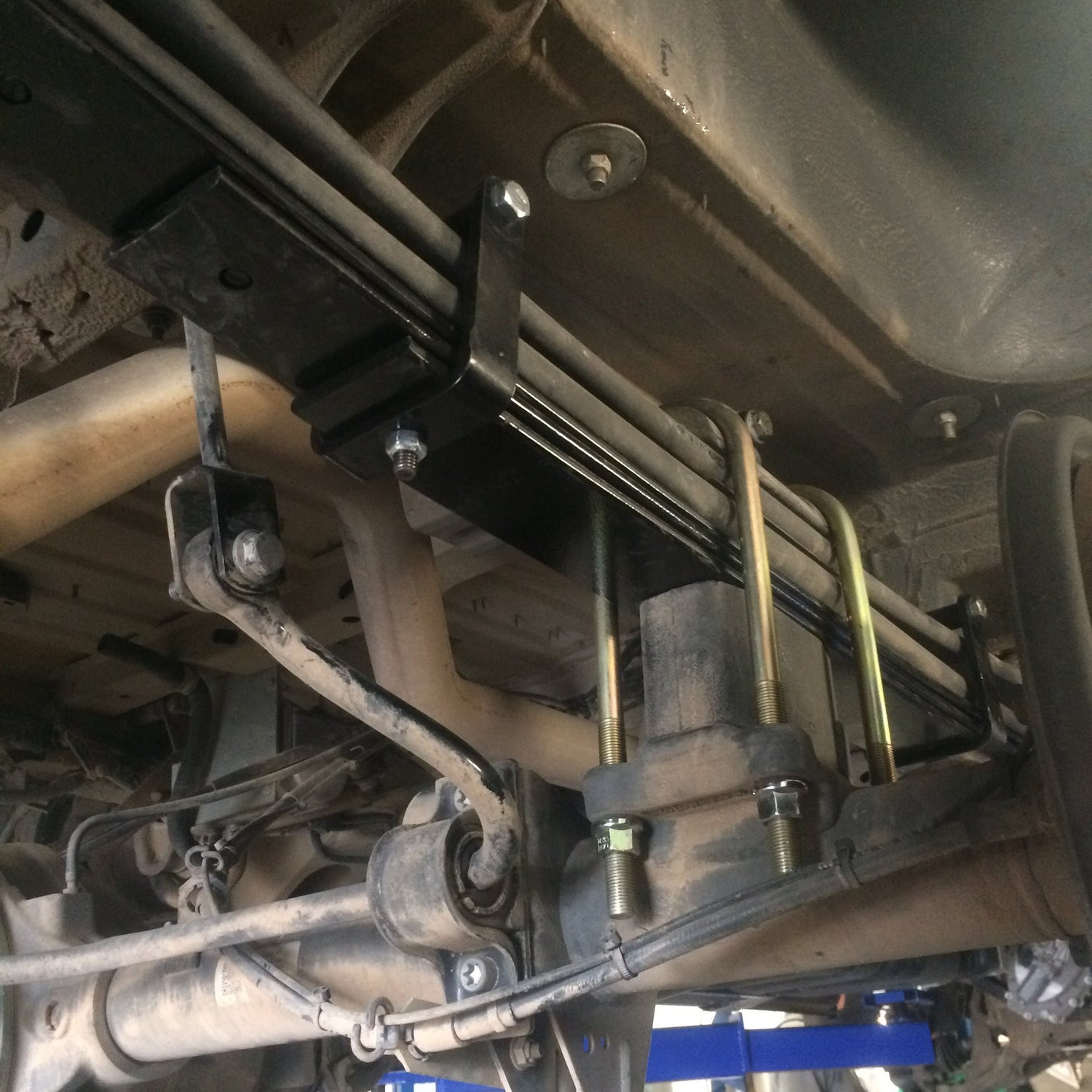

As your van approaches its GVWR, the rear suspension naturally begins to sag and ride quality suffers. The Van Compass mini spring pack installs under the factory leaf springs to correct that sag and restore lost wheel travel on a built-up van. The added spring rate and the extra clearance it creates between the bump stop and axle reduce the chance of bottoming out, enhance stability and ride comfort, and bring back the factory look, all while keeping you within the manufacturer's GVWR.

Features

• Installs under the factory leaf springs to correct rear sag near GVWR
• Adds spring rate and bump-stop-to-axle clearance to reduce bottoming out
• Restores lost ride height and the factory stance
• Can be run as a 3-leaf sag correction (preserves factory geometry) or as a 6-leaf pack for 2" of total lift
• Steel construction with a black finish

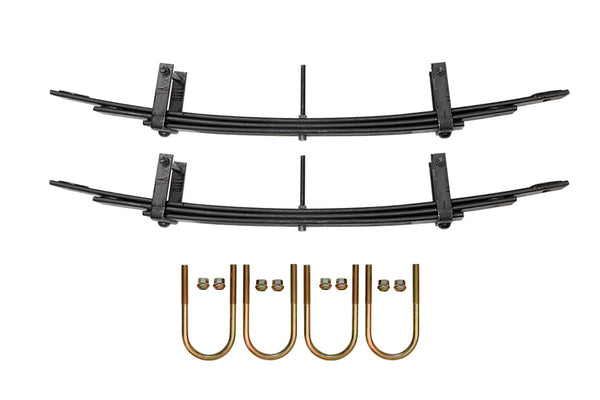

Included Components

• Van Compass mini leaf pack (pair)
• U-bolts and nuts for installation

Important Notes

• Only compatible with 2WD vans that have a factory 2-leaf spring pack. Not compatible with the factory 'mono leaf' or the 3500 spring pack with a third 'overload' spring.
• The 6-leaf 2" lift configuration requires the Striker or Scout rear lift kit for proper suspension geometry and cycling range.
• Not compatible with OE 'Monoleaf' rear suspension. Can only be installed on 2-leaf springs.

Labor Time

Recommended shop labor time: 3 hours.

Specifications

• Color: Black
• Material: Steel
• Maximum Lift: 1.25 in
• Grade: Performance
