2010-2026 Sprinter Suspension Stabilizer Bar Link Kit (X02-09-009)

Experience the comfort and articulation benefits of a sway bar disconnect without ever removing a link, thanks to the revolutionary AIRLYNX stabilizer bar link kit by Apex Designs. Each link contains an air spring, so adjusting the internal pressure lets you dial in exactly how your sway bar behaves, like a progressive sway bar you tune on the fly. Soften the initial rate to take the harshness out of potholes and off-camber entries, or fully inflate to lock out like a rigid link and preserve factory on-road handling.

Features

• Air spring links replace rigid sway bar end links for fully tunable behavior
• Softens the initial rate on single-corner impacts to reduce head toss
• Increases articulation and traction off road at lower pressures
• Locks out like a rigid link at maximum pressure to retain original handling
• Maintains return-to-center feel even at low pressure
• Adjusts in seconds with a mountain bike style air pump, no tools required

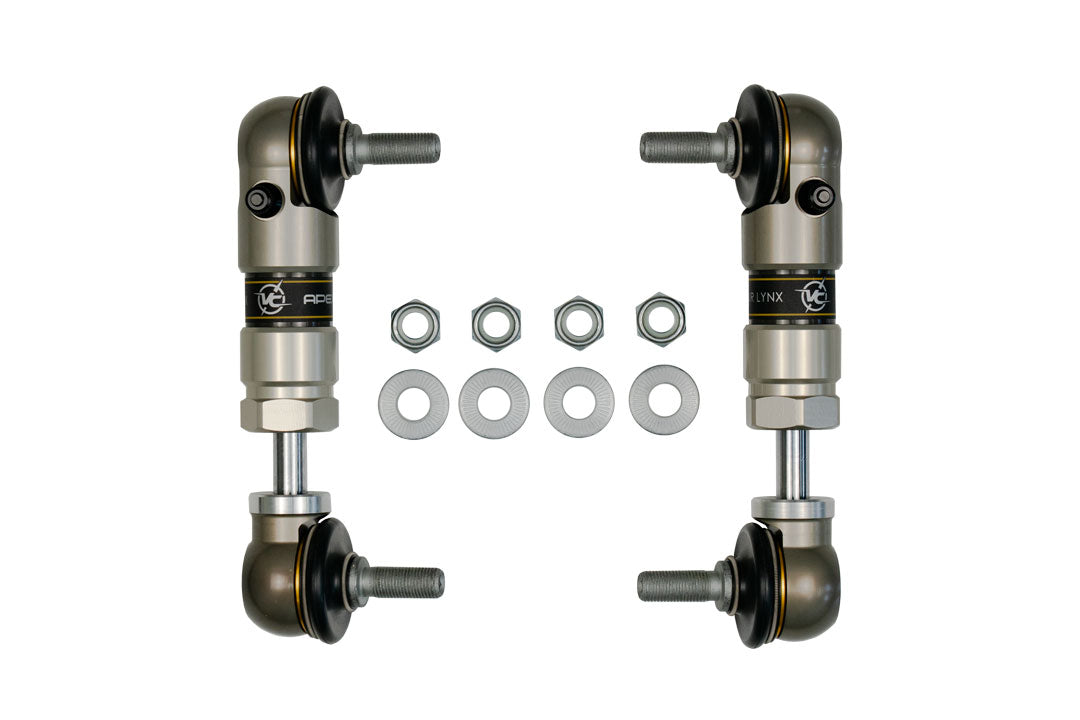

Included Components

• Apex AIRLYNX Adjustable Sway Bar Disconnects (Pair)
• Mounting hardware

Important Notes

• Does NOT fit 2015-22 4x4 model vans with aluminum body aftermarket struts.
• 2023-UP AWD model vans with aluminum body aftermarket struts will have camber adjustment limited to neutral-positive settings.

Labor Time

Recommended shop labor time: 0.5 hours.

Specifications

• Grade Type: Performance
