2011-2012 F-150 EcoBoost 3.5L Turbo Kit w/ Silver Ceramic Coating (A0159A)

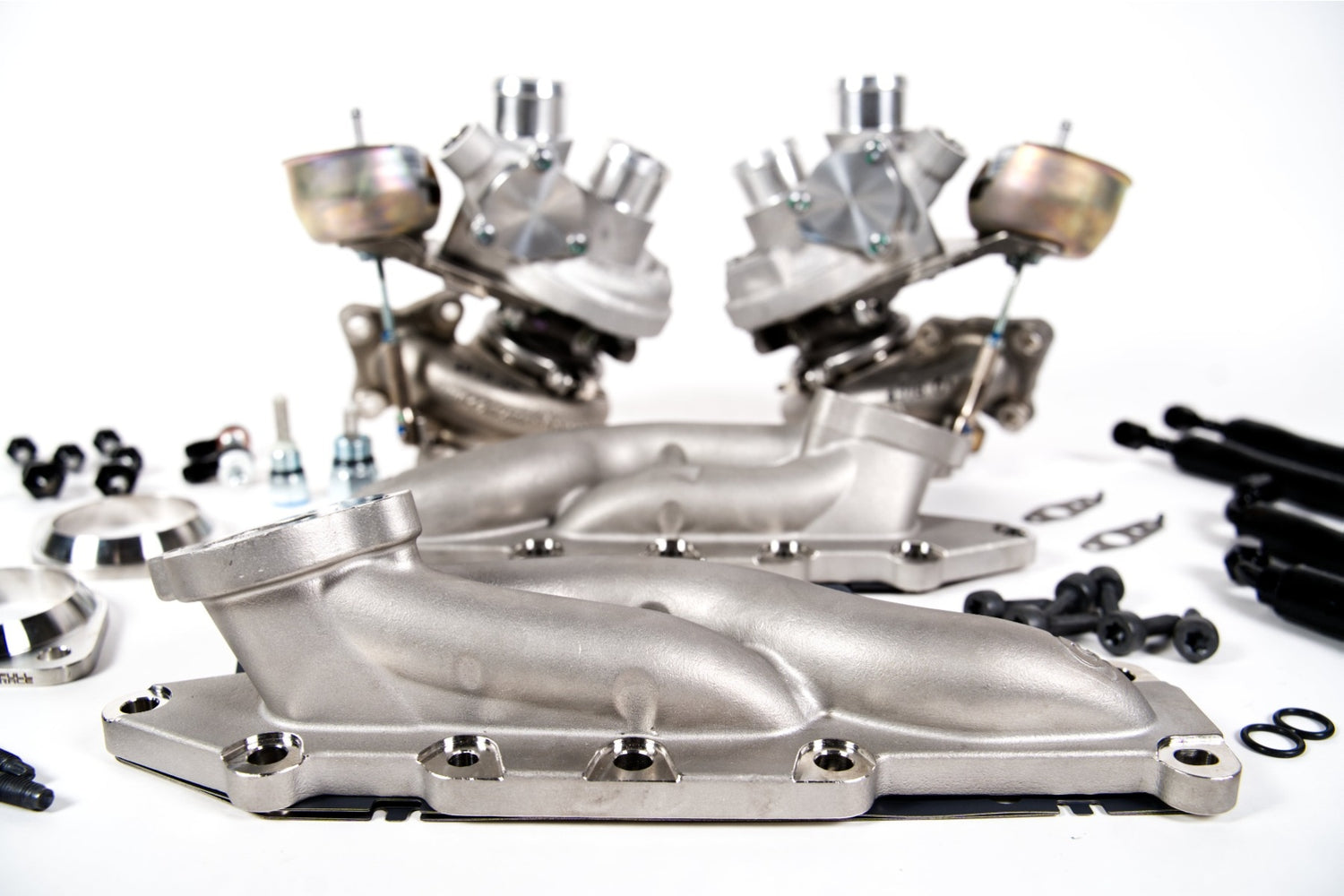

The Full-Race Formline Turbo Kit is the complete, high-performance solution for upgrading your 2011-2012 Ford F-150 3.5L EcoBoost. This version includes our Formline cast stainless exhaust manifolds with a high-performance Silver Ceramic Coating to reduce engine bay temperatures and enhance thermal efficiency. The comprehensive package includes everything necessary to reliably install Garrett PowerMax Stage 1 turbos, which are designed for a significant performance increase while maintaining OEM reliability. The kit also features upgraded AN turbo coolant lines, a Billet Turbo Adapter Kit, and Inconel hardware, providing a complete "remove and replace" process that unlocks the engine's full potential for approximately 450 horsepower.

Features

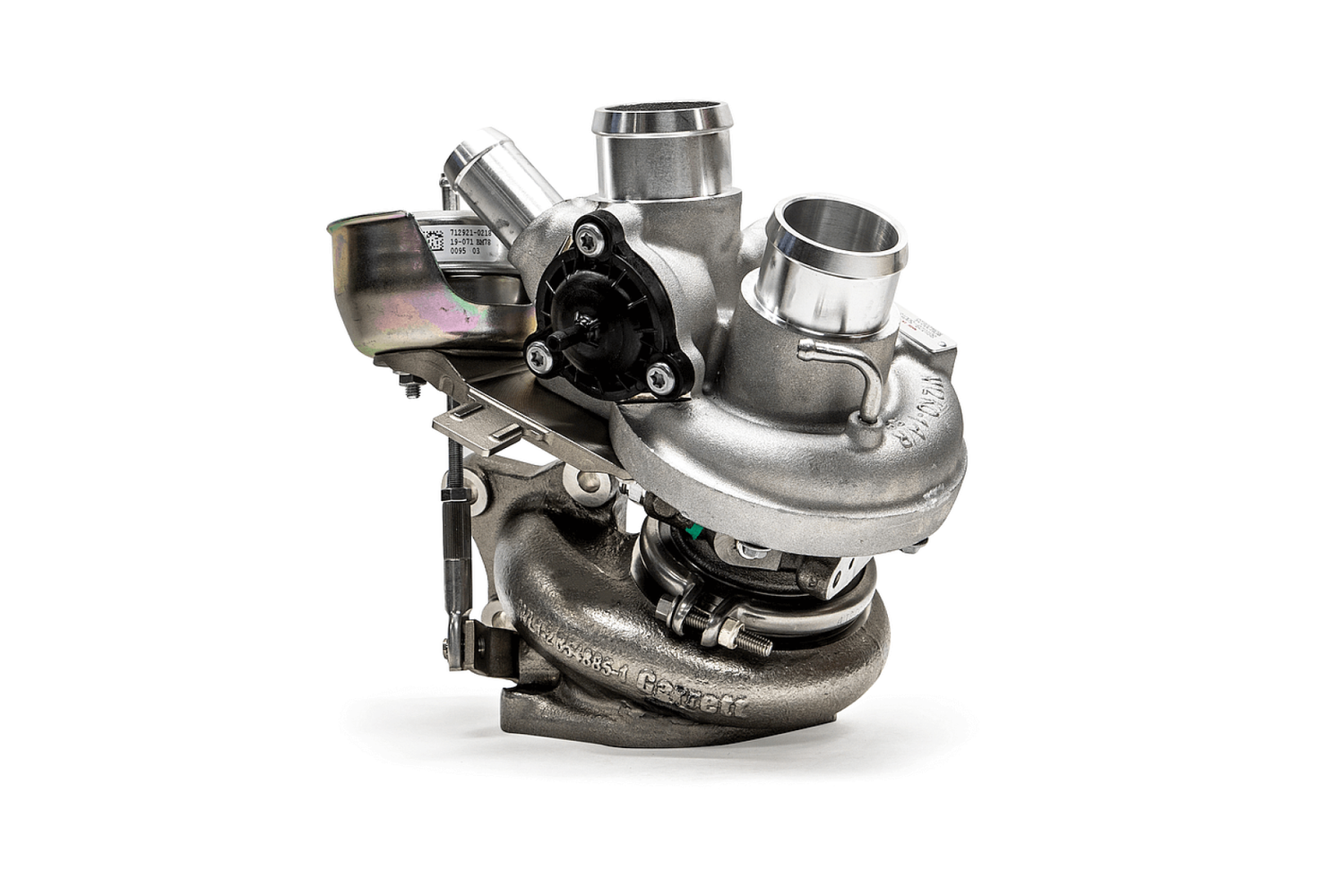

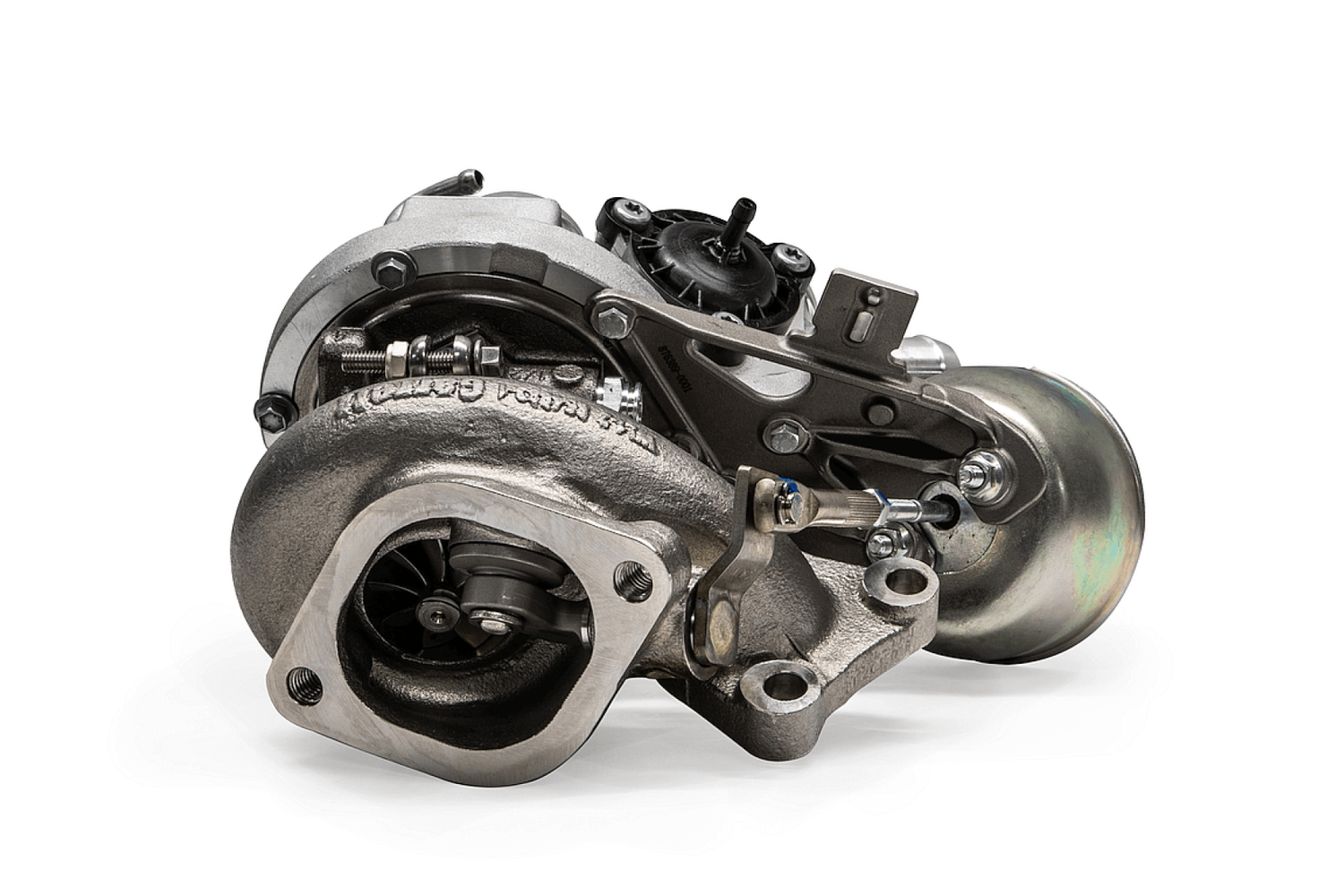

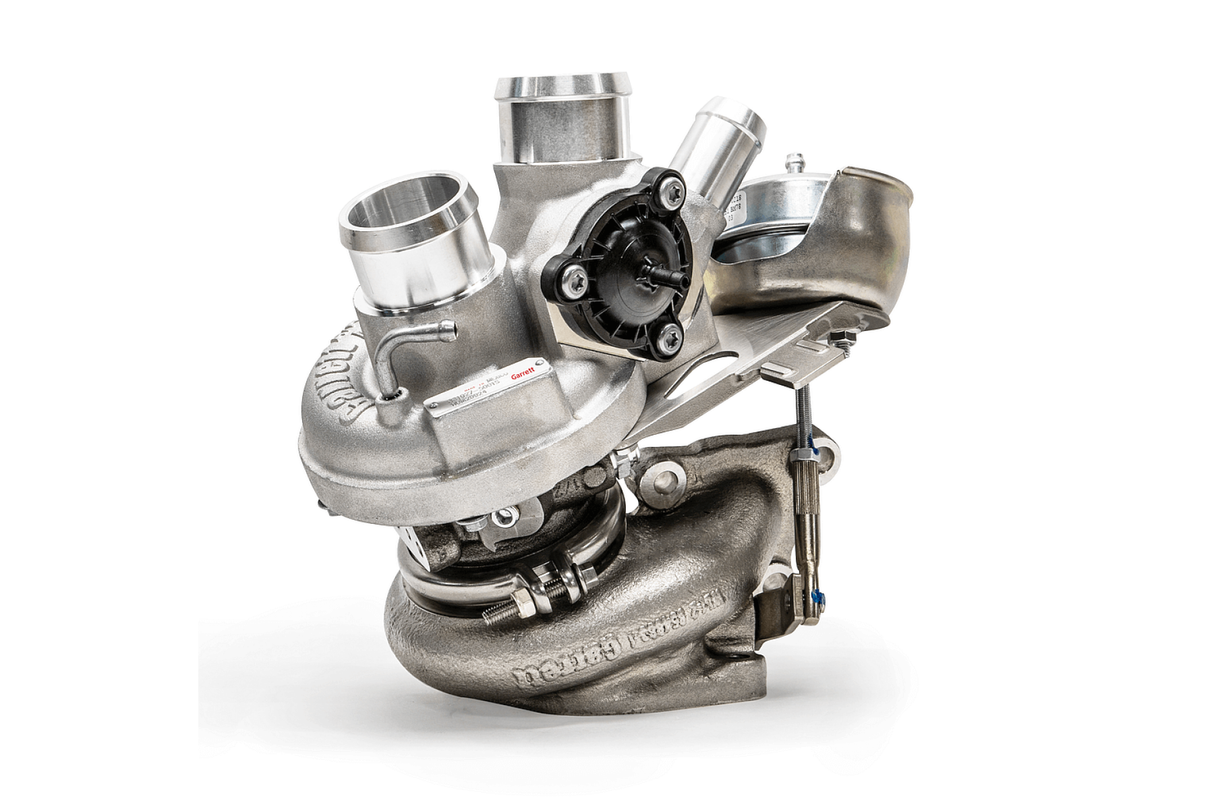

• Includes Garrett PowerMax Stage 1 Turbos, providing up to a 22 percent increase in flow over OEM turbos.

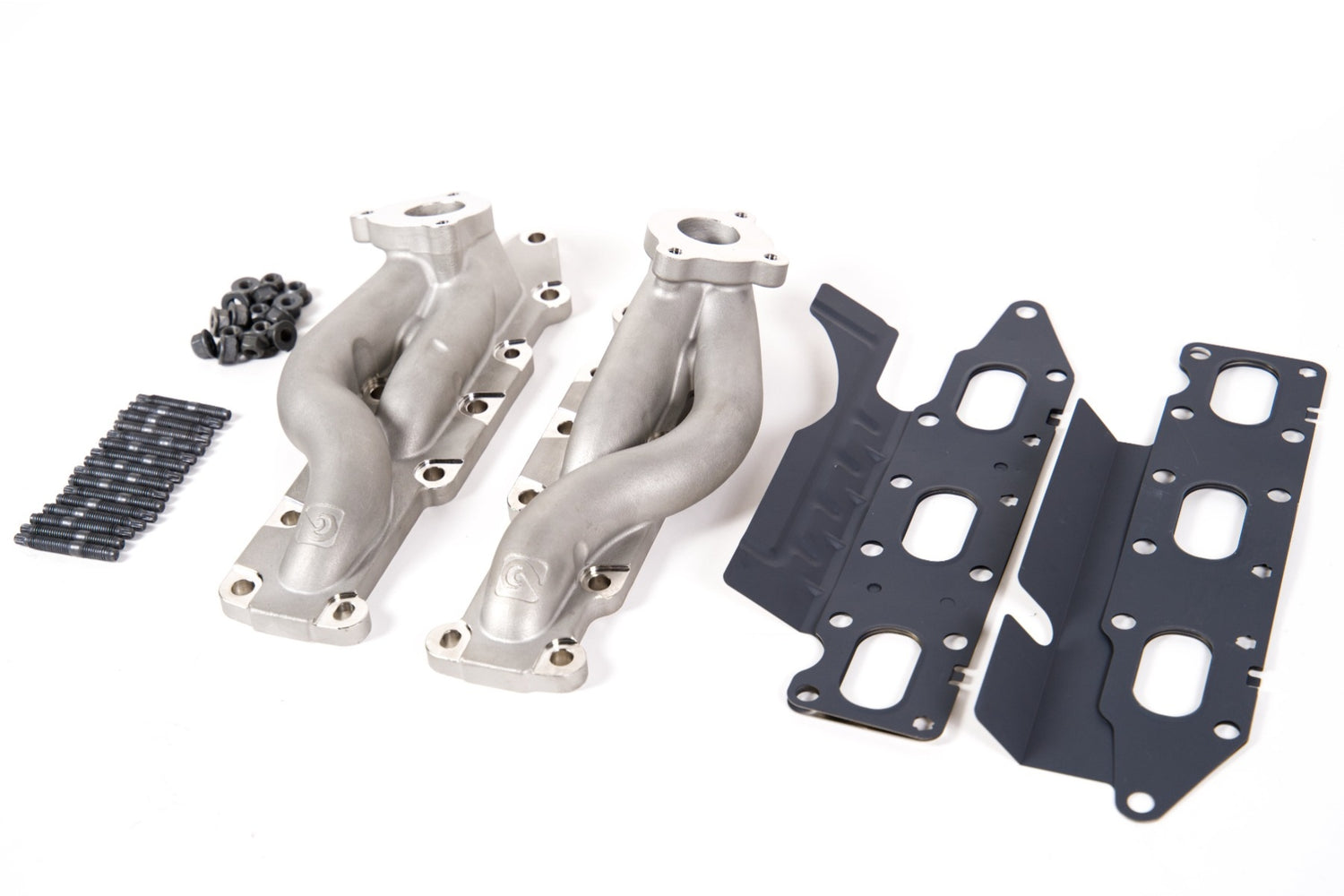

• Features Formline Cast Stainless Exhaust Manifolds with Silver Ceramic Coating to mitigate heat soak.
• Includes Upgraded AN Turbo Coolant Lines, replacing problematic OEM lines with robust AN fittings.

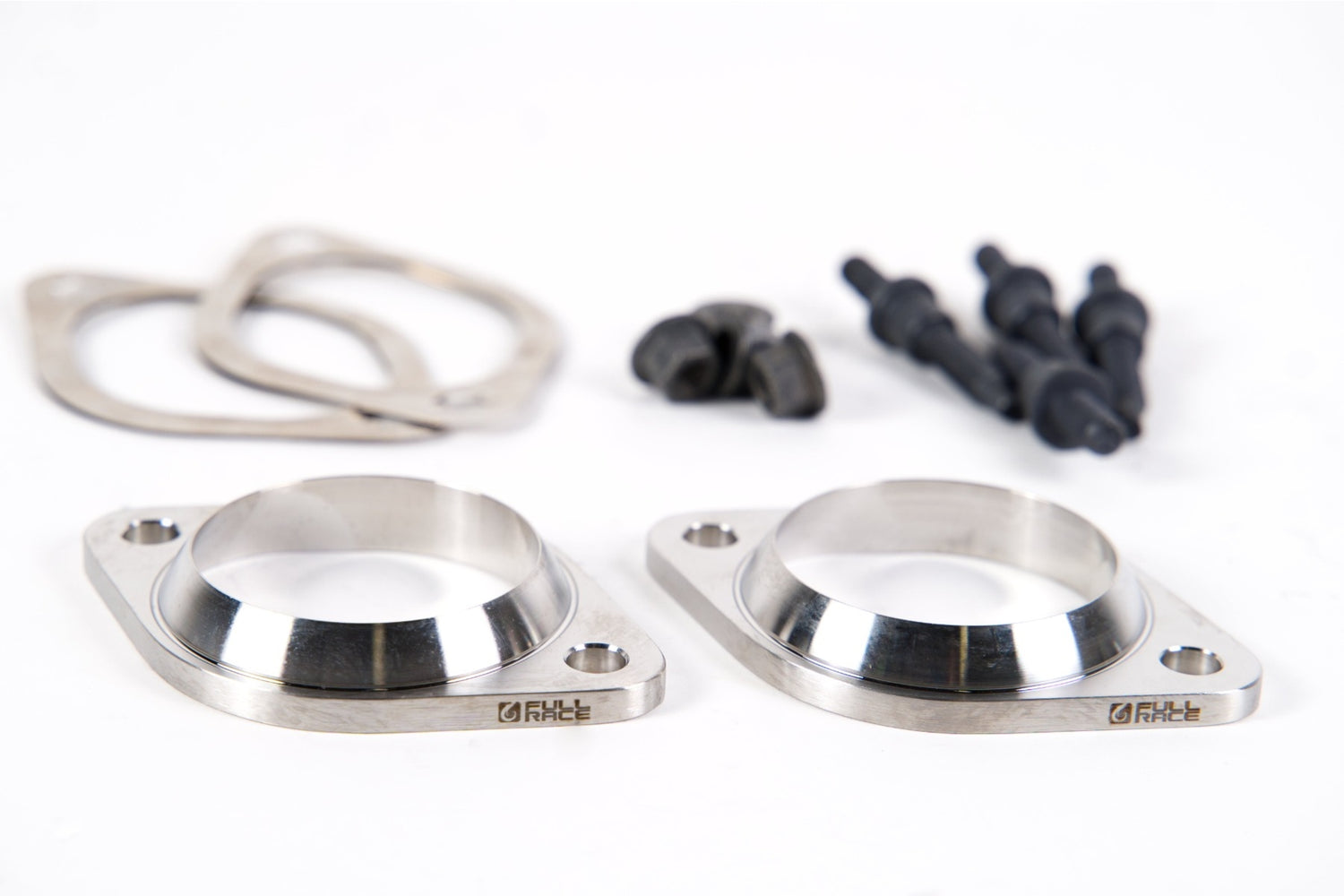

• Includes Billet Turbo Adapter Kit, engineered for maximum flow and optimized turbo performance.
• Includes Inconel Exhaust Manifold Hardware Kit for superior temperature and corrosion resistance.
• Complete installation solution with all necessary gaskets, seals, and hardware.

Notes

• The ceramic coating provides enhanced heat control, which can improve the overall stability and longevity of components in the engine bay.
• The turbo kit is designed to deliver performance improvements out of the box, but custom tuning may be necessary to fully optimize performance.
• Installation is a streamlined "remove and replace" process, but professional installation is strongly recommended.
• The product is backed by a comprehensive one-year warranty against manufacturing defects.

Compatibility Notes

• Fits 2011-2016 Ford F-150 EcoBoost 3.5L.
• Also fits 2015-2017 Ford Expedition EcoBoost 3.5L.
• Also fits 2015-2017 Lincoln Navigator EcoBoost 3.5L.

Specs

• Turbos: Garrett PowerMax Stage 1
• Manifold Material: 347 Stainless Steel
• Manifold Coating: Silver Ceramic Coated
• Estimated WHP Potential: Up to 450 WHP
