2011-2014 F-150 415LPH In-Tank Fuel Pump w/ Install kit (9-401-1046)

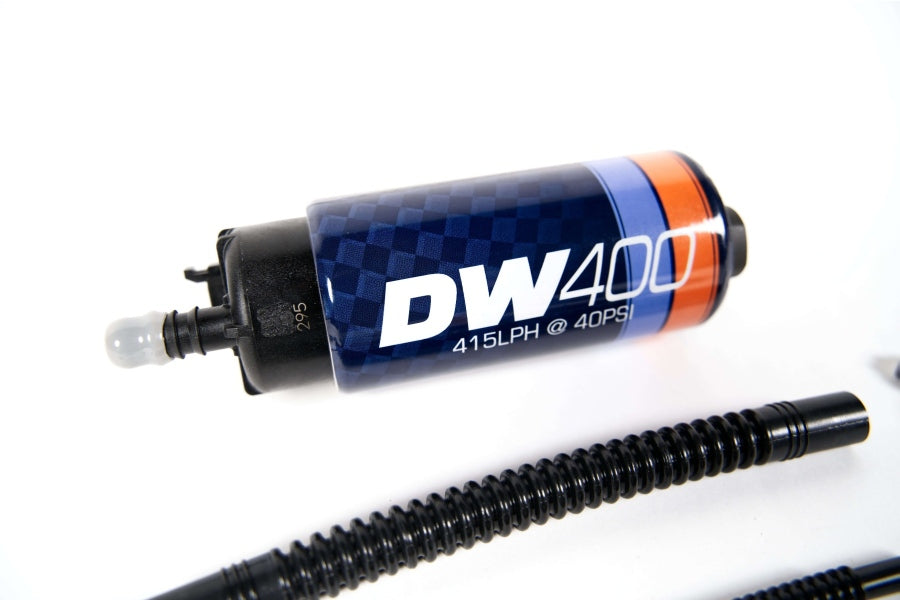

The DW400 is the highest flowing in-tank fuel pump on the market. Quiet operation and pulse width modulation compatibility are delivered via the turbine impeller and computer balanced armature. E85 compatibility is built in via the carbon commutators and a fully encapsulated armature. This pump comes with a complete installation kit to make installation easy. The included hoses, clamps, and filter are designed to work in conjunction with the OEM fuel pump basket in your F150. The included plug and play wiring harness ensures a safe and secure connection.

Why this Fuel Pump?

The Stock Gen1 fuel Pump wasn't designed for:

• Bigger Turbos
• Ethanol Blends
• Sustained Hard Use

Features

• Highest flowing in-tank fuel pump on the market (DW400 series)
• Rated at 415 LPH at 40 PSI
• Rated for 120 PSI total fuel pressure
• Internal check valve
• Ethanol and E85 compatible

• Pulse width modulation compatible
• Turbine impeller with computer balanced armature
• Carbon commutators with fully encapsulated armature

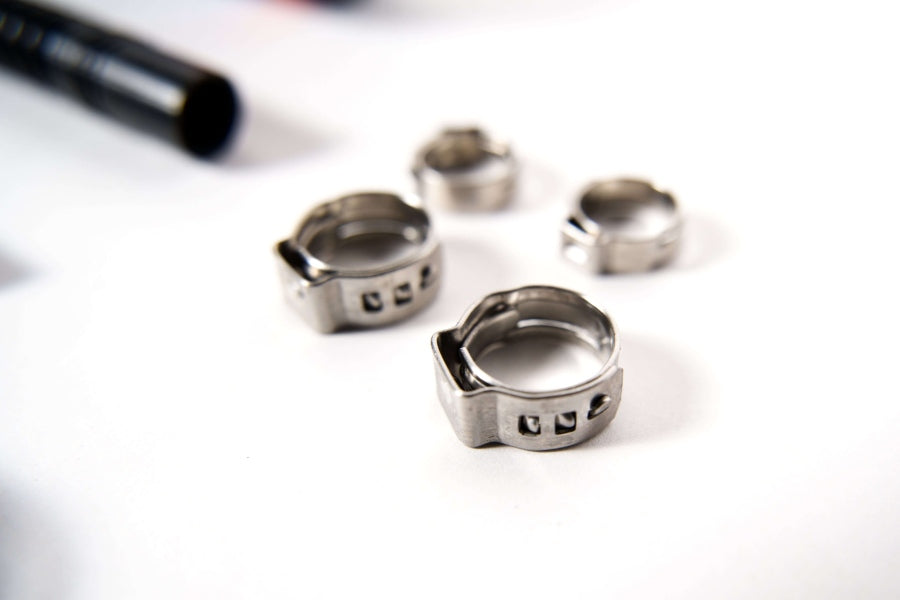

• Includes hoses, clamps, and filter
• Designed to work with OEM fuel pump basket


Specifications

• External Materials: Electroplated Steel
• Inlet Fitting: 14mm ID, 18.1mm OD
• Outlet Fitting: 3/8" Hose Clamp
• PRV Activation: 120 psi
• Impellar Design: Single Scroll Composite Turbine
• Connector Terminal: Spade Pos/Neg
• Min Voltage Input: 6 volts
• Max Voltage Input: 18 volts
• Current Draw 40 psi: 16.5 amps (13.5v)

Notes

• Modification to the OEM basket may be required for installation on some applications.
