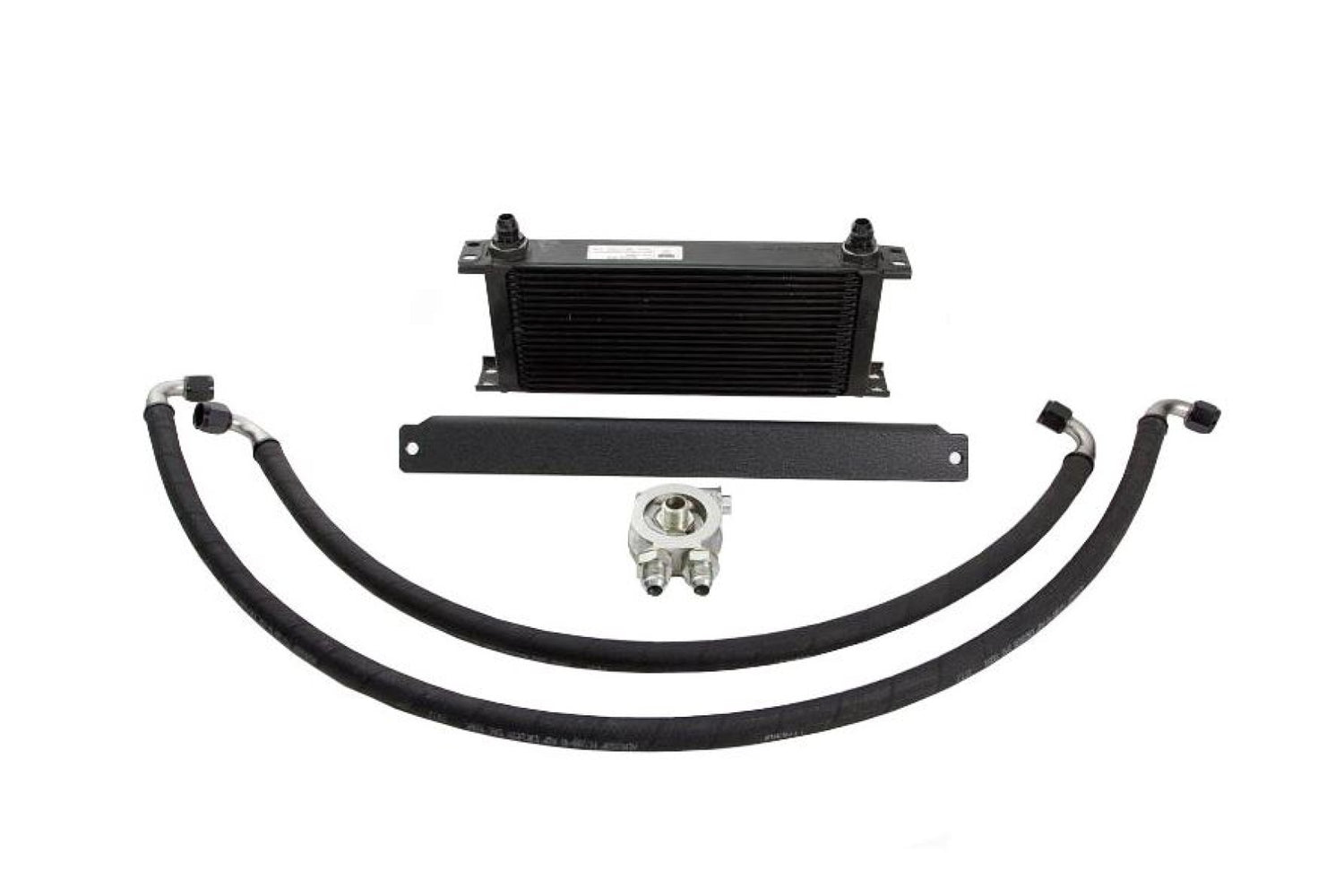

2011-2014 F-150 3.5L Ecoboost Oil Cooler Kit (FR-OCK-ECO)

The Full-Race Oil Cooler Kit for the Ford F-150 3.5L EcoBoost is designed to prevent efficiency and power-robbing wear caused by high oil temperatures, especially during high-performance applications, off-road racing, or heavy towing. Using a high-efficiency Setrab Air-to-Oil heat exchanger core, this system can remove substantial heat from the engine oil. To ensure proper lubrication during cold conditions, a thermostat is integrated into the oil filter sandwich adapter, which prevents the cooler from opening until the engine reaches full operating temperature. This provides crucial cooling under high-load while protecting the engine during cold starts and low-load driving.

Features

• Includes a Setrab oil cooler core with fully brazed construction and a black epoxy finish.
• Features a thermostat-controlled oil filter sandwich adapter to prevent over-cooling upon startup.
• Utilizes -10 smooth bore hose with 5-ply composite construction, rated to 400 degrees Fahrenheit.
• Can remove 30,000-35,000+ btu/hr of heat from the engine.
• Includes a black powdercoated mounting bracket for the F-150 front bumper.
• Installation kit includes -AN Fittings and all necessary hardware.

Notes

• Hot oil degrades and loses viscosity, which can lead to engine wear; this kit prevents that breakdown.
• The kit requires a relocated Front-Mount Intercooler to provide the necessary open space in the front grille area.

Specs

• Cooler Type: Air-to-Oil Heat Exchanger
• Heat Removal Capacity: 30,000 - 35,000+ btu/hr
• Hose Rating: -10 smooth bore, 5-ply composite, rated to 400 degrees Fahrenheit
• Mounting: Front Bumper (Requires Front-Mount Intercooler)
