2011-2019 GM HD 4.5" Lift Kit with FOX 2.0 Performance Shocks (BDS1819FS)

Improve the stance, performance, and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with a BDS 4.5-inch lift kit. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm, eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Features

• High Clearance design with no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• FOX 2.0 gas shocks for improved performance

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9
• Back Spacing: 4.625/6

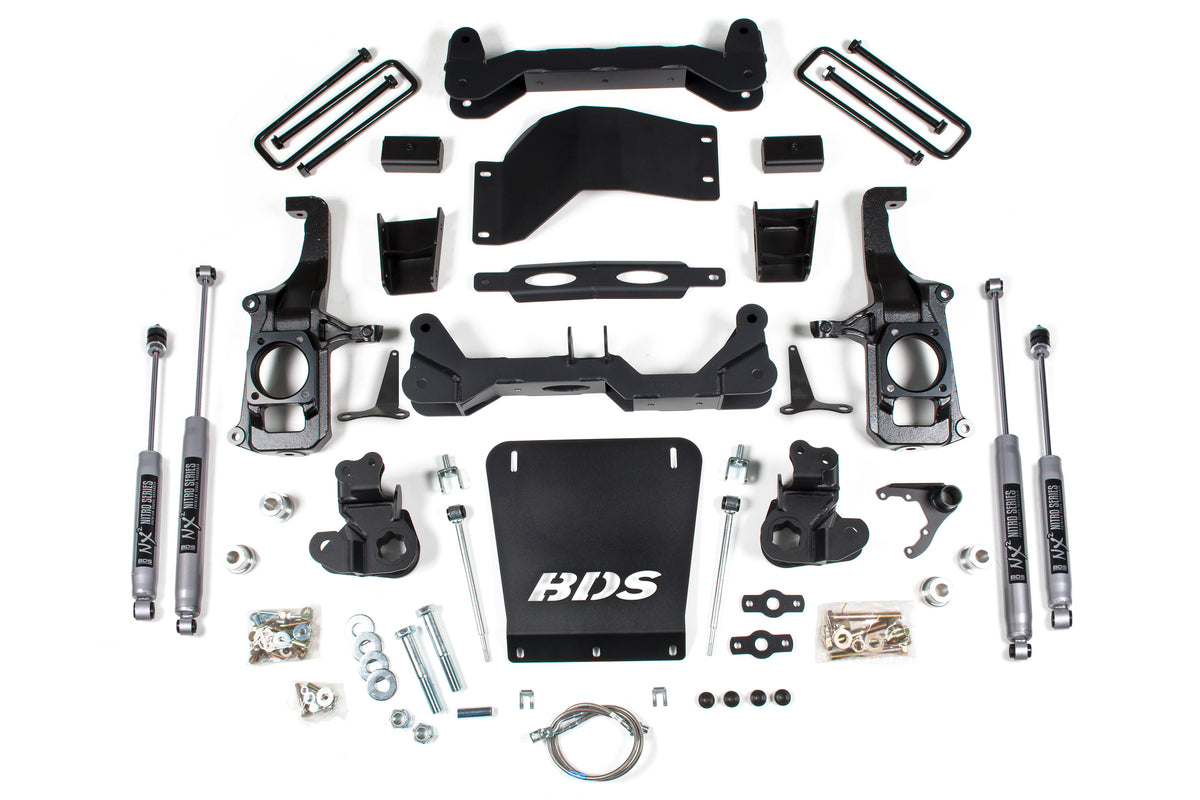

Includes

• BDS011318 - 11 HD 3in Rear w/o Top Overload (UPC 658848611751)
• BDS021454 - 11-15 GM HD 4.5in Torsion Bar System (UPC 658848614691)
• BDS021650 - 11 GM HD 4.5-6.5in System (1of4) (UPC 658848614950)
• BDS021651 - 11 GM HD 4.5-6.5in System (2of4) (UPC 658848614967)
• BDS021652 - 11 GM HD 4.5-6.5in System (3of4) (UPC 658848614974)
• BDS021653 - 11 GM HD 4.5-6.5in System (4of4) (UPC 658848614981)
• BDS121650 - 2001-2019 GM HD Front Skid Plate Box Kit (UPC 658848619207)
• FOX98224613 - Fox 2.0 Shock 21.95 x 13.85 x 2, S50/EB1, Qty 2
• FOX98224769 - Fox 2.0 Shock 31.02 x 18.95 x 2, EB1/EB1, Qty 2
