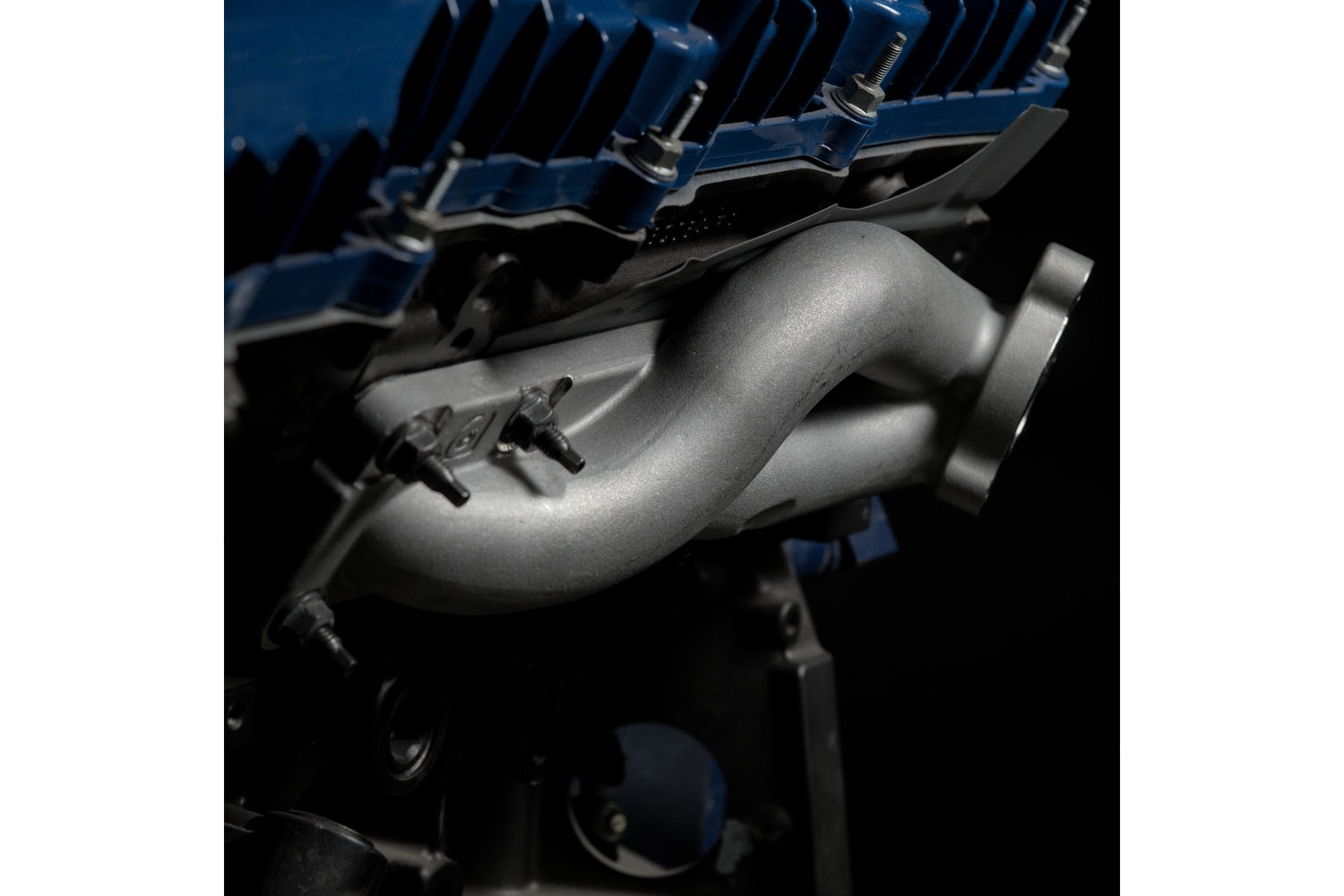

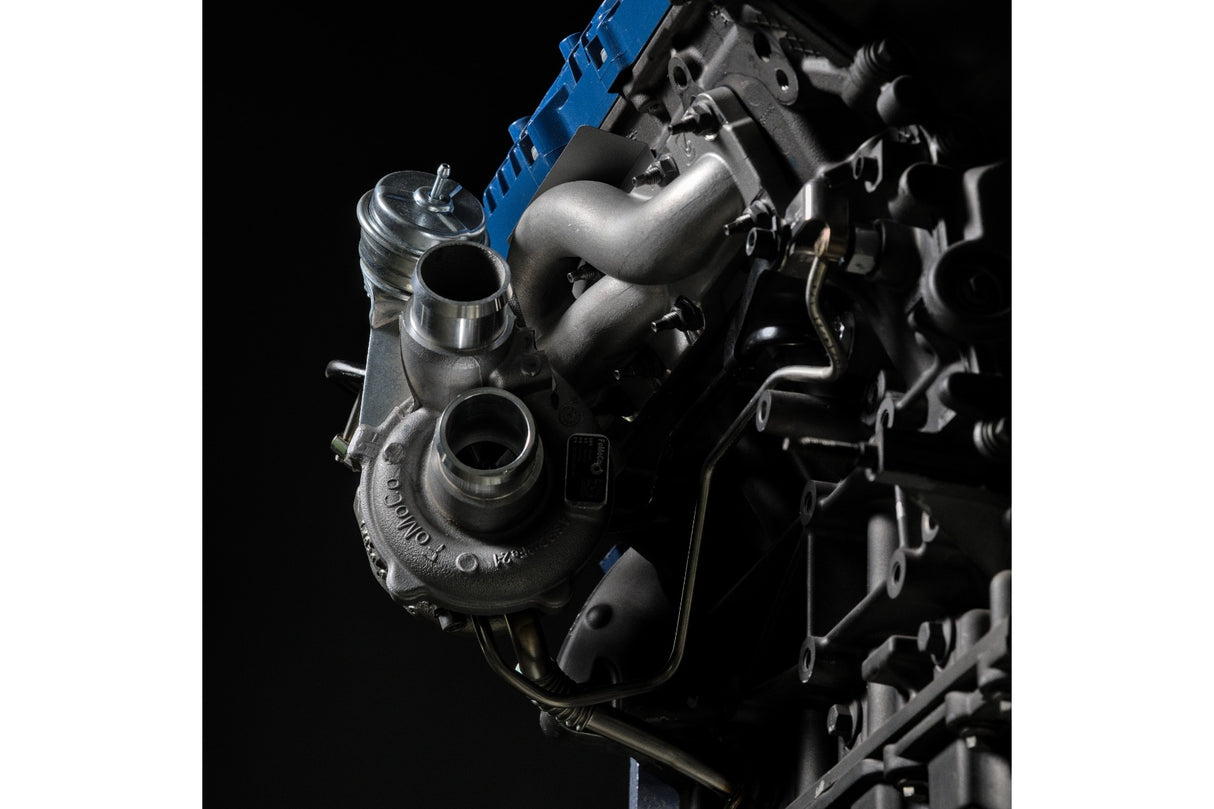

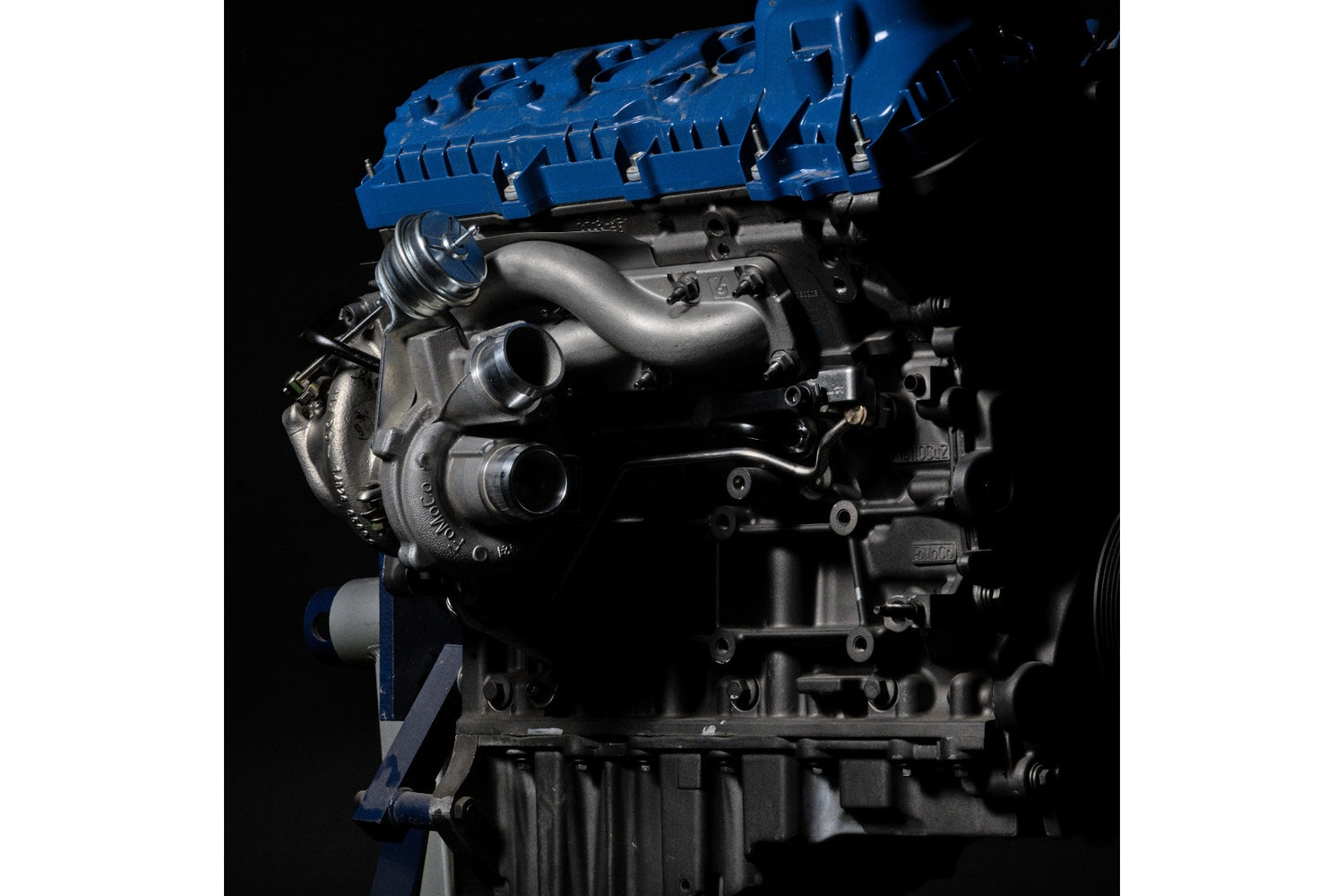

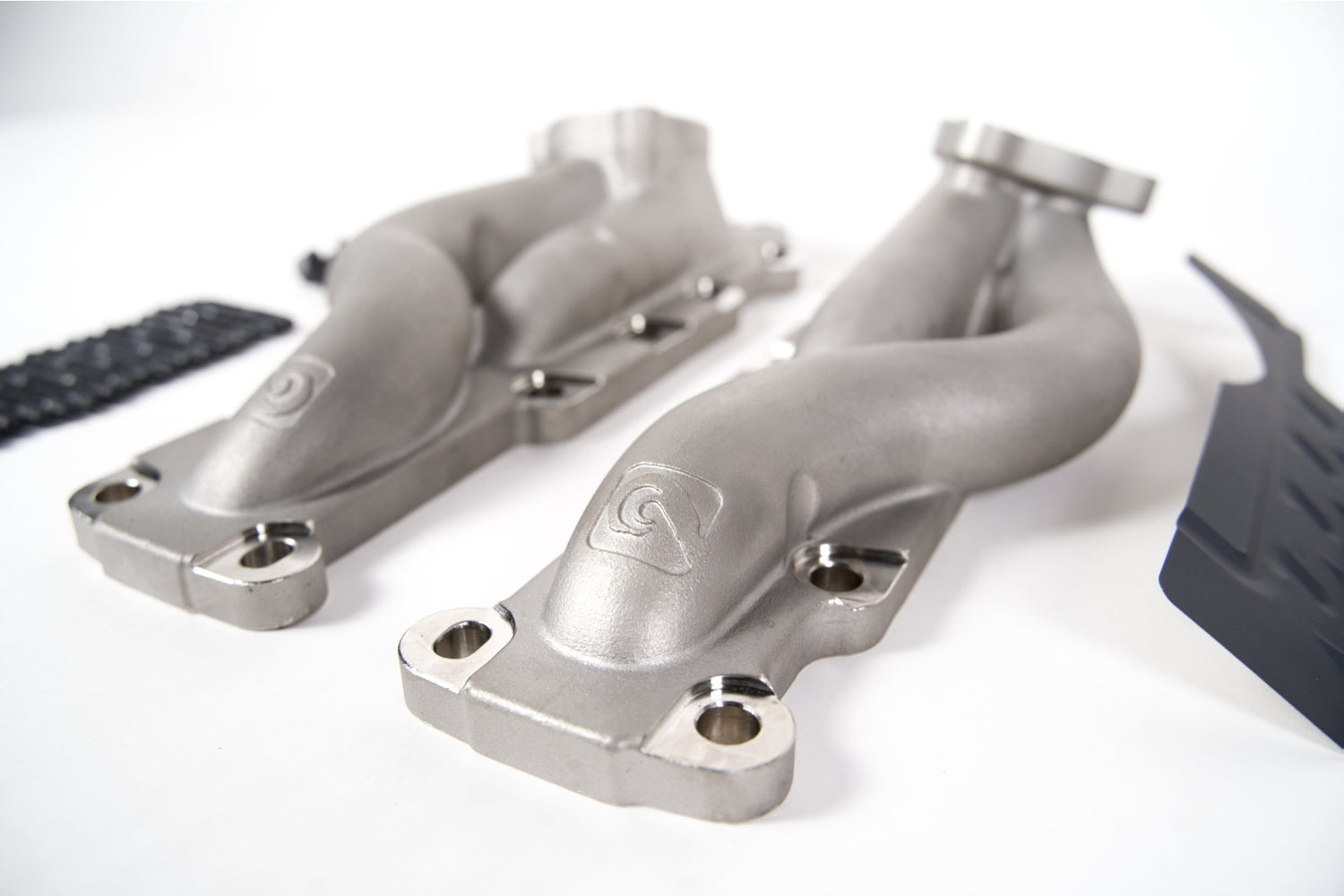

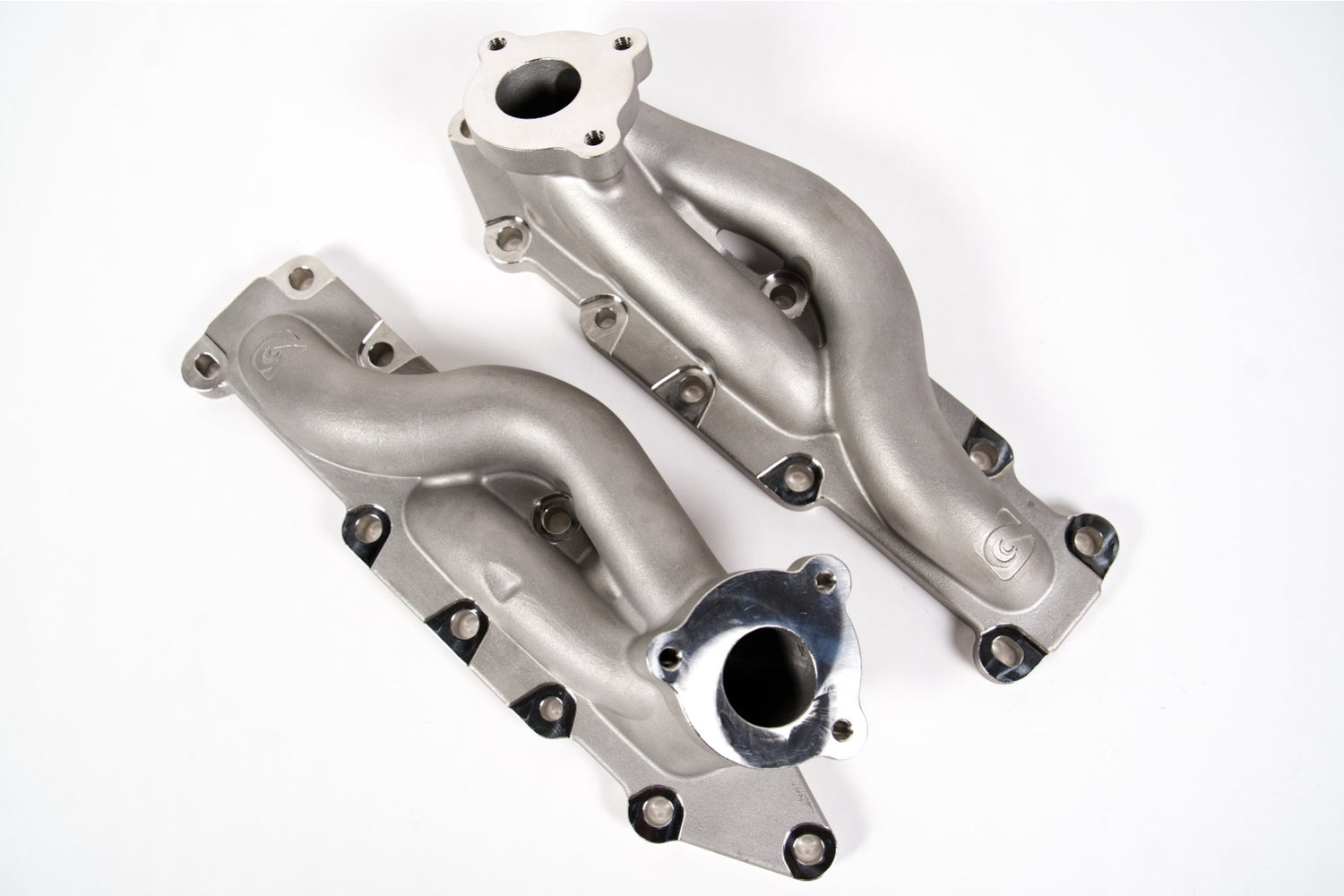

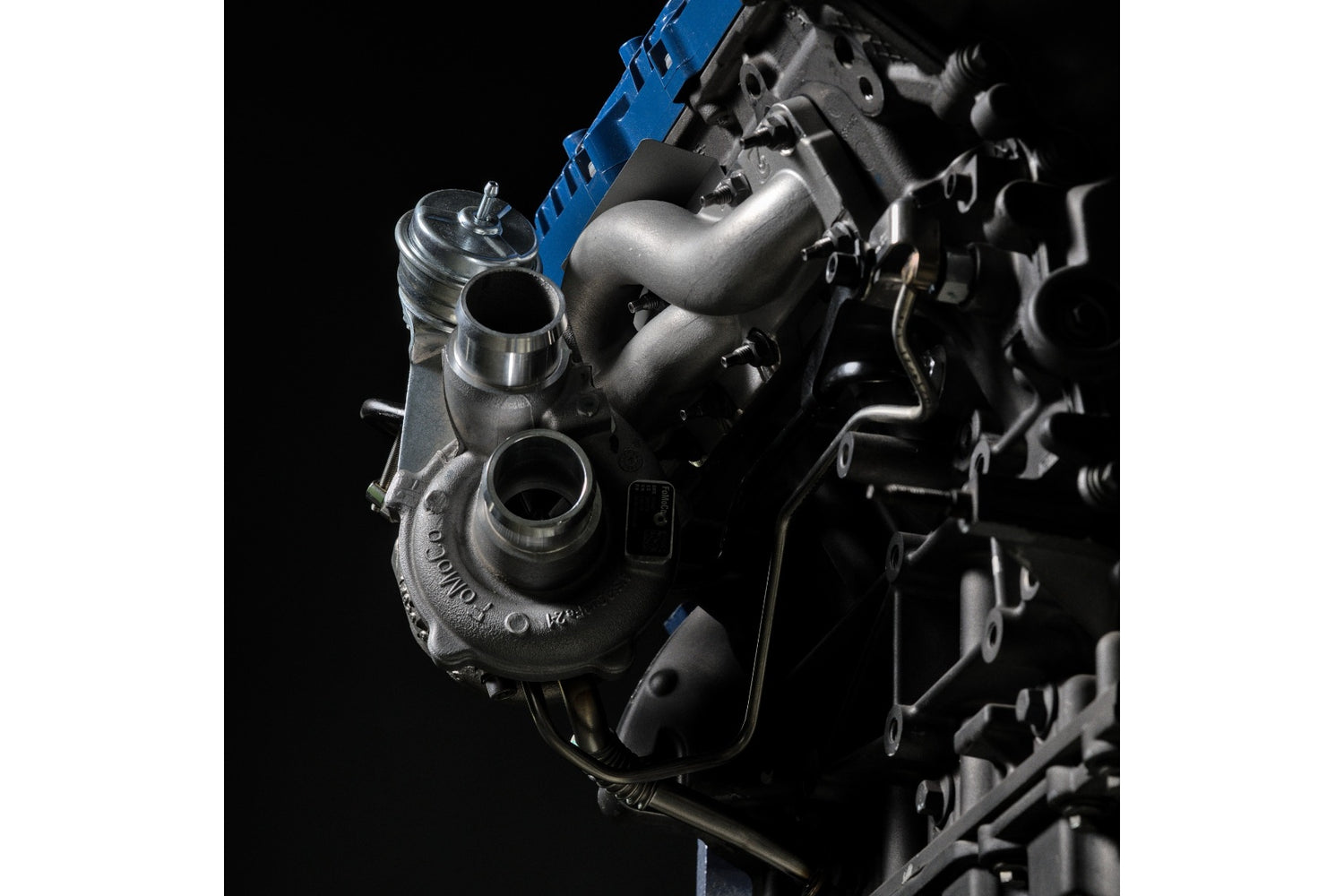

2011-2016 F-150 3.5L EcoBoost Formline Turbo Manifolds w/ Ceramic Coating (A0153A)

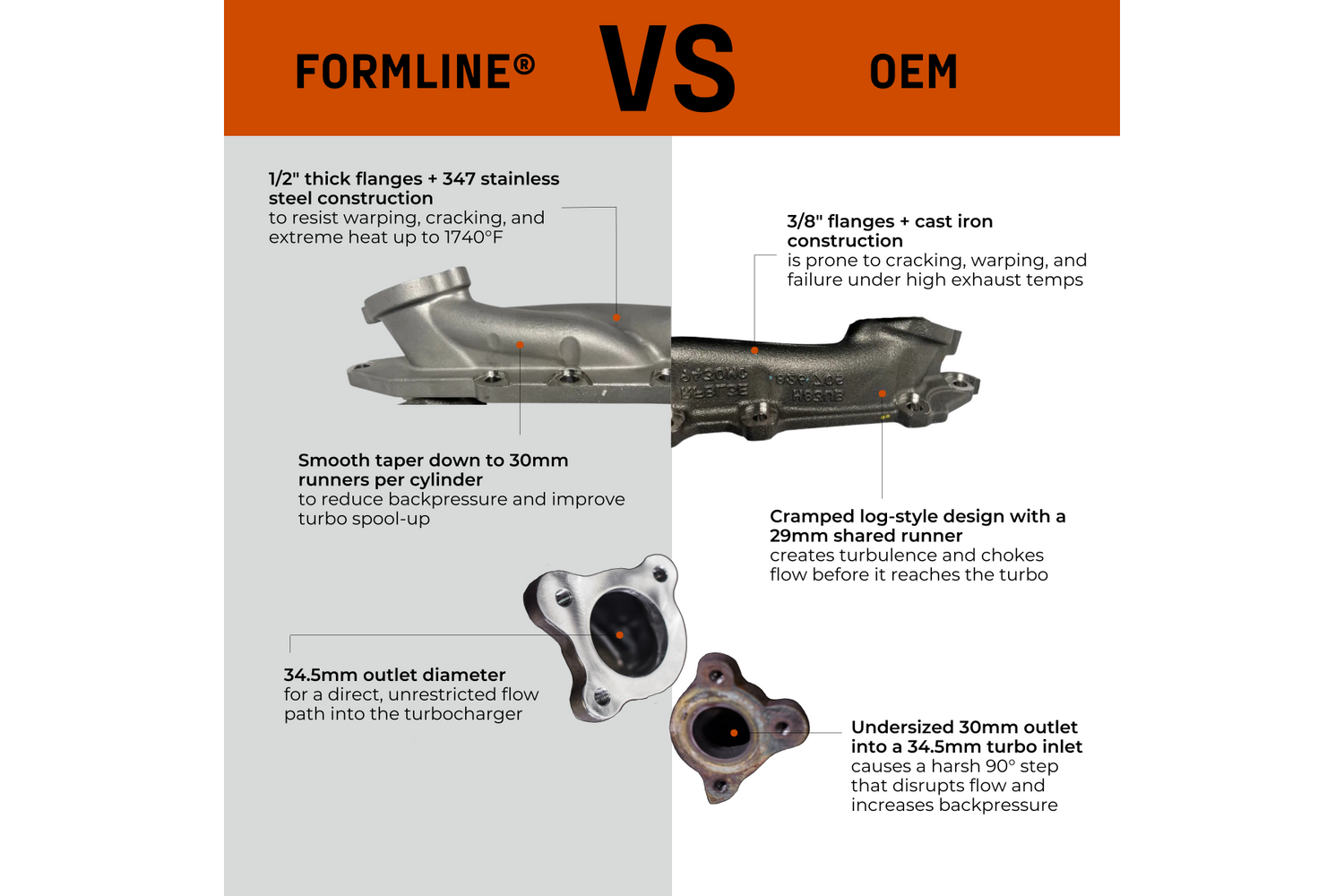

The Full-Race Formline Turbo Manifolds are a direct replacement for the failure-prone factory exhaust manifolds on the 2011–2016 Ford F-150 EcoBoost. This version is finished with a durable silver ceramic coating to reduce radiant heat, protecting surrounding engine bay components. Formline Turbo Manifolds are crafted from advanced 347 stainless steel, a material built to withstand exhaust temperatures up to 1740 degrees Fahrenheit (950 degrees Celsius) without warping or cracking. They feature a thicker, half-inch flange design for improved sealing strength. Beyond durability, these manifolds are engineered for performance with a 32 percent larger outlet and individually optimized 30mm runners, resulting in reduced backpressure, faster spool-up, and increased horsepower and torque throughout the powerband.

Features

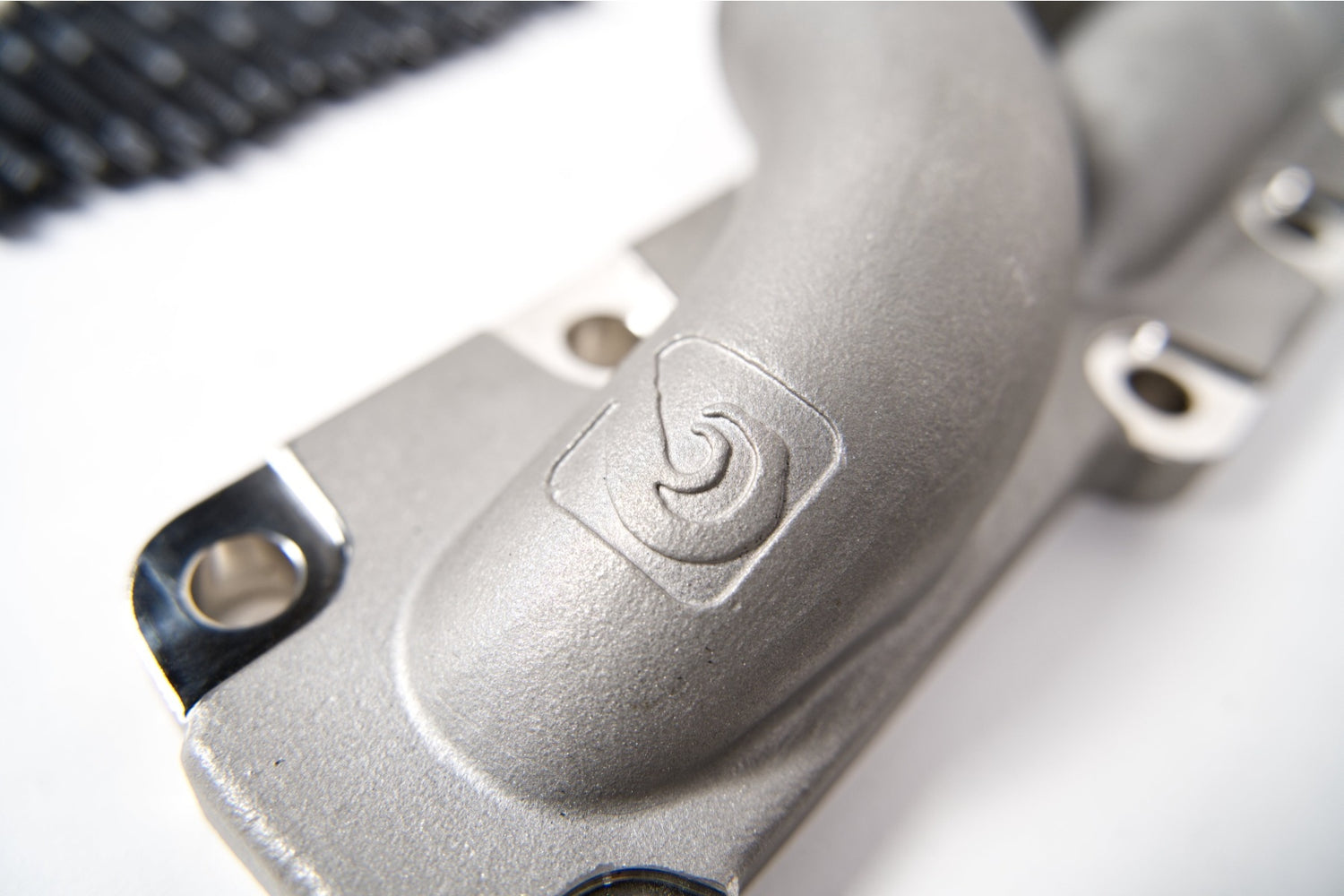

• Investment cast from advanced 347 stainless steel construction.
• Finished with a durable silver ceramic coating for superior heat mitigation.
• Upgraded half-inch thick flanges resist warping and prevent exhaust leaks.
• Features a 32 percent larger outlet (34.5mm) that perfectly matches the turbo inlet.
• Individual 30mm runners reduce backpressure and improve turbo efficiency.

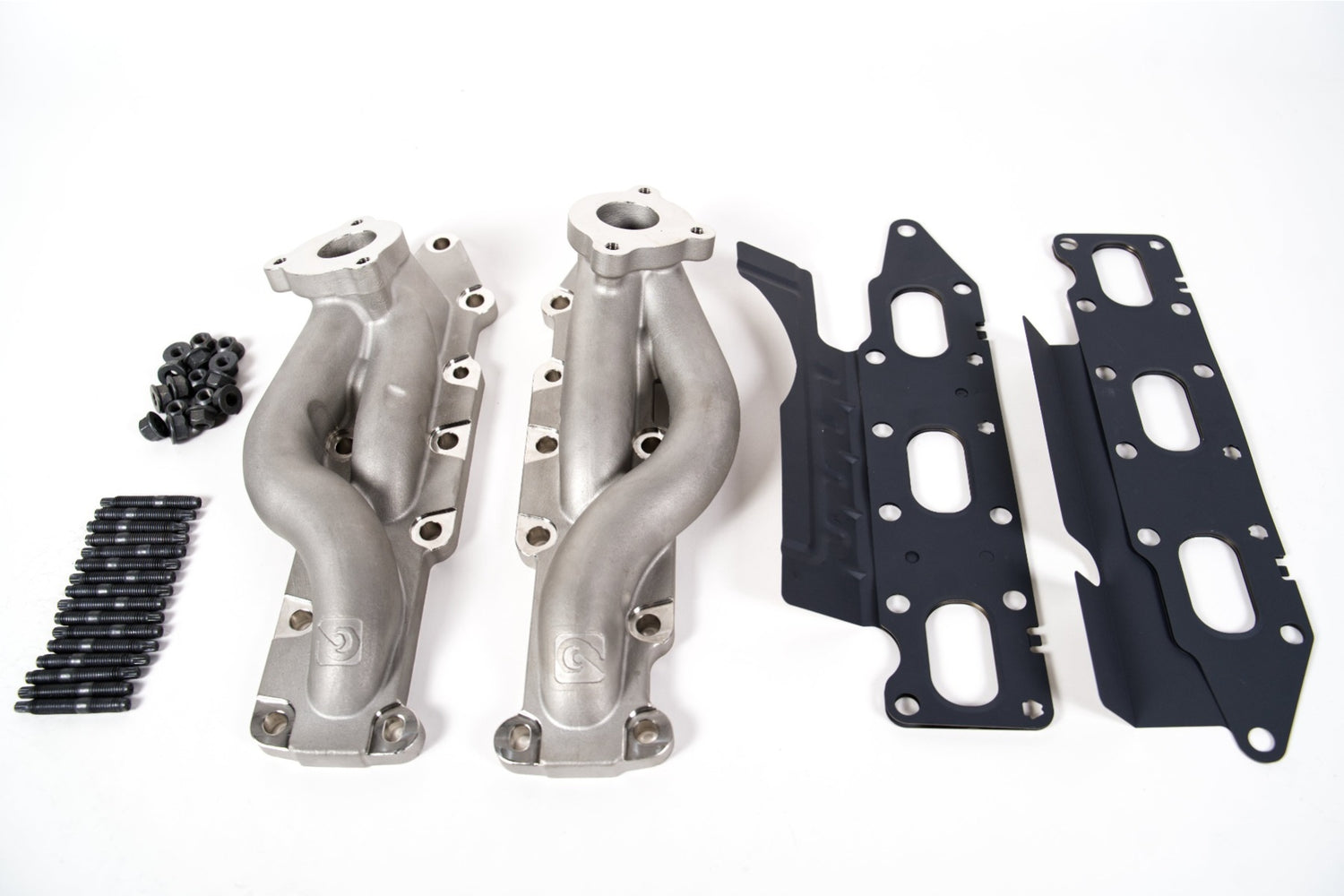

• Includes A286 Inconel Stud Kit for long-lasting, leak-free performance.

Notes

• The ceramic coating significantly reduces engine bay temperatures, which helps with overall engine longevity and performance stability.
• The passenger side lift bracket must be removed for proper manifold sealing.
• With OEM turbos, the compressor cover heat shield may require gentle bending for clearance.
• Aftermarket parts can affect your vehicle’s warranty; consult your warranty agreement or dealer for details.
• The product is backed by a Limited Lifetime Warranty against manufacturing defects.

Compatibility Notes

• Fits 2011-2016 Ford F-150 EcoBoost 3.5L.
• Fits 2015-2017 Ford Expedition EcoBoost 3.5L.
• Fits 2015-2017 Lincoln Navigator EcoBoost 3.5L.
• Fits 2013-2024 Ford Transit EcoBoost 3.5L.
• Designed to seamlessly fit both OEM and larger aftermarket turbochargers.

Specs

• Material: 347 Stainless Steel
• Coating: Silver Ceramic Coated
• Max Heat Tolerance: 1740 degrees Fahrenheit (950 degrees Celsius)
• Flange Thickness: 1/2 inch
• Outlet Size Increase: 32 percent larger than OEM
