2011-2016 Superduty 2.5" Lift Kit with FOX 2.0 Performance Shocks (BDS1509FS)

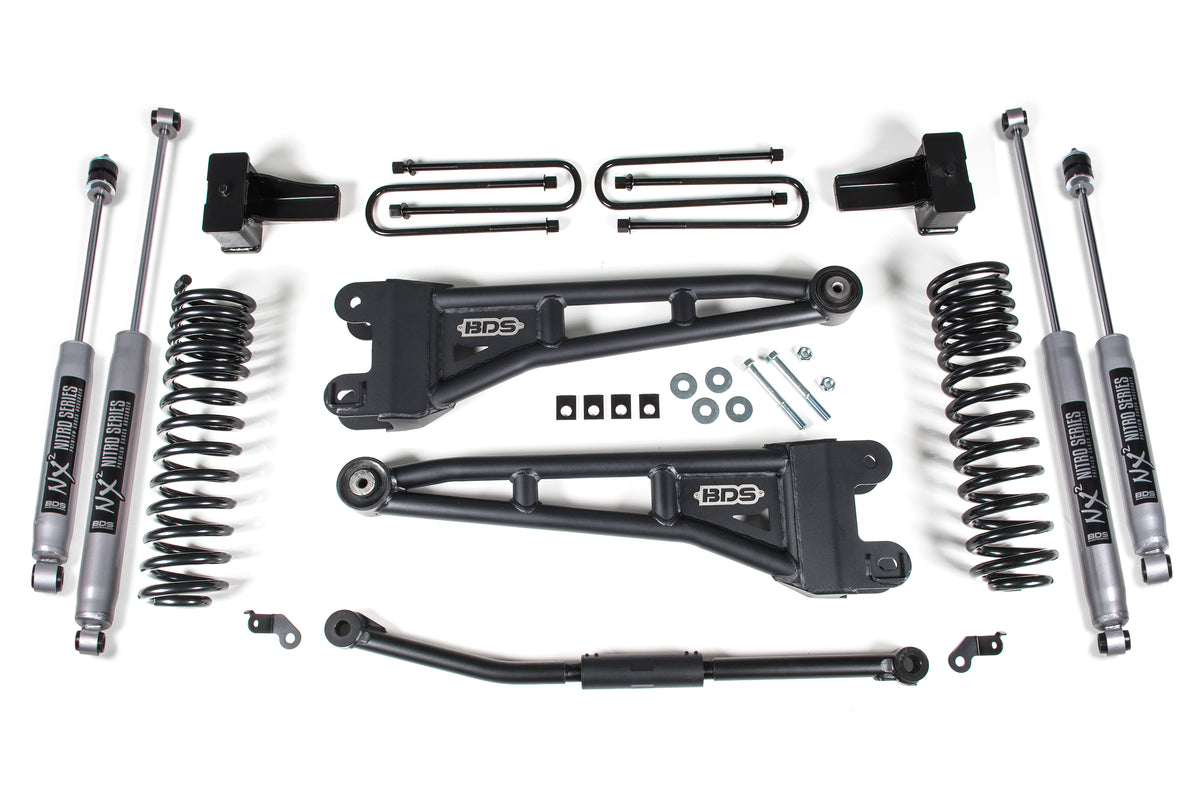

Improve the ride and level out your 2011-2016 Ford F250 and F350 Super Duty diesel truck with this BDS 2.5" radius arm lift kit, with clearance for up to 35" tires. Up front are diesel-specific Pro-Ride coil springs, heavy duty replacement tubular radius arms with caster adjustment, a high-strength 1-3/8" solid steel adjustable track bar for steering correction, brake line brackets and precision tuned shocks. The rear uses a high-strength fabricated lift block, longer u-bolts and NX2 Nitro or FOX Performance shocks.

Features

• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Easy, 100 percent bolt-on installation
• 2" impact extruded aluminum body, IFP monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Notes

• Trimming may be required (35 x 12.5 with 17 x 9, 18 x 9, or 20 x 9 and 5 in. backspace).
• Designed for diesel models without top-mounted overload rear springs. For trucks with overloads, u-bolts part UBT4028 (Qty 4) are required.
• Models equipped with a 3-3/4" rear block from the factory do not require a rear block kit to achieve a more level stance.
• For a more tail-high stance, substitute 013519 5" rear block kit.

Includes

• BDS013255, 2011-2015 F250 2.5 InchFront Box Kit (UPC 658848613229)
• BDS013408, 2011-15 F250 4 Inch Rear Block Kit (UPC 658848613403)
• BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair (UPC 658848616480)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
