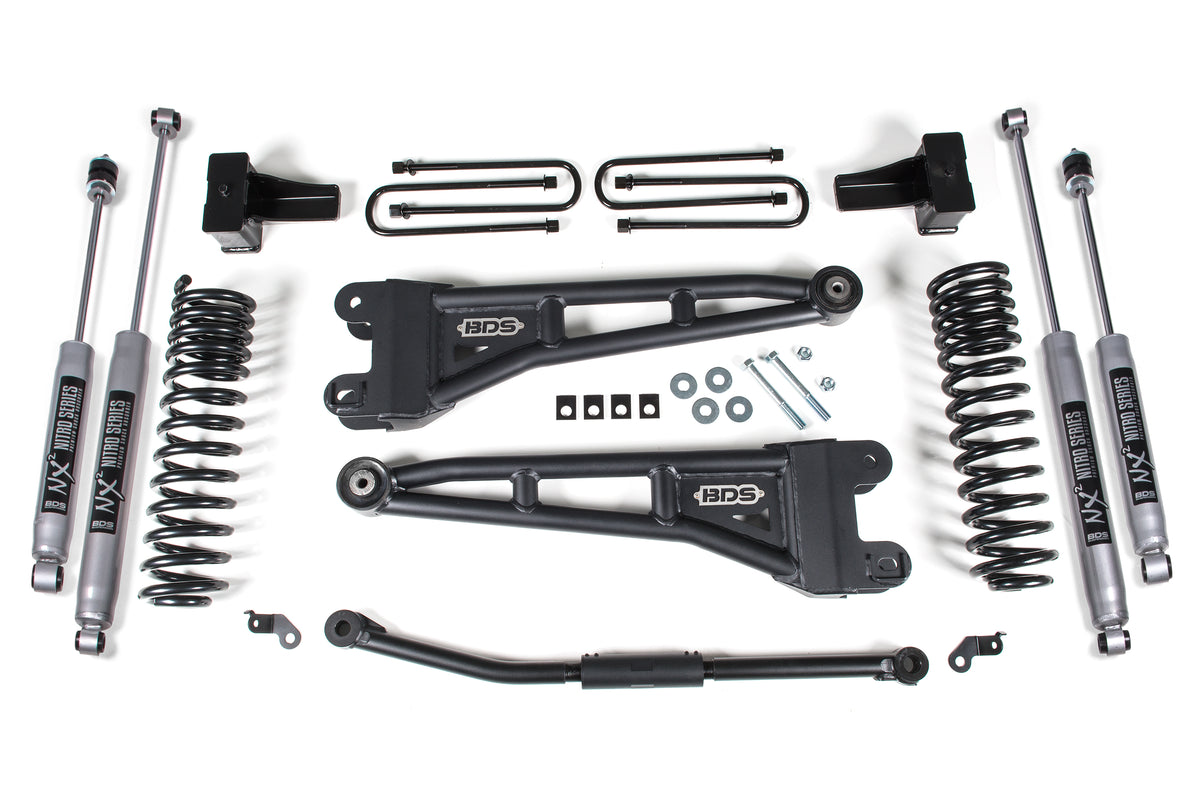

2011-2016 Superduty 2.5" Lift Kit with NX2 Nitro Shocks (BDS1928H)

BDS 2.5" radius arm leveling lift for the 2011-2016 Ford F250 and F350 Super Duty diesel truck with clearance for up to 35" tires. Up front it includes diesel-specific Pro-Ride coil springs, heavy duty tubular replacement radius arms with caster adjustment, a high strength 1-3/8" solid steel adjustable track bar for steering correction, brake line brackets, and precision tuned nitrogen charged shocks. In the rear it uses a high-strength fabricated lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks.

Features

• Easy, 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Notes

• Trimming may be required.
• Tested tire/wheel fitment: 35x12.5 with 17x9 and 5 in. backspace; 35x12.5 with 18x9 and 5 in. backspace; 35x12.5 with 20x9 and 5 in. backspace.

Includes

• BDS013255, 2011-2015 F250 2.5 InchFront Box Kit (UPC 658848613229)
• BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair (UPC 658848616480)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 (UPC 711745609471)
• BDS85713, Shock- 23.5 x 14.2 x 2-3/8 - S50/EB2 (UPC 711745609532)
