2011-2016 Superduty 2.5" Lift Kit with FOX 2.0 Performance Shocks (BDS1510FS)

BDS 2.5" radius arm lift kit for 2011-2016 Ford F250 and F350 Super Duty diesel trucks, with clearance for up to 35" tires. Up front are diesel-specific Pro-Ride coil springs, a 1-3/8" solid steel adjustable track bar to recenter the front axle, brake line brackets, and nitrogen charged shocks. The rear uses a fabricated lift block, longer u-bolts, and NX2 Nitro or FOX Performance shocks.

Features

• 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Adjustable solid steel track bar recenters the front axle
• Fabricated steel blocks provide a level stance front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance

Specs

• Front Lift Method : Coil Spring
• Rear Lift Method : Block
• Shocks Included : Yes
• Front Lift Height : 2.5 inch
• Rear Lift Height : 4 inch

Notes

• Trimming may be required
• Designed for diesel models without top-mounted overload rear springs
• Models with a 3-3/4" factory rear block do not require a rear block kit to achieve a more level stance. For a more tail-high stance, substitute the 013519 5" rear block kit.
• 35x12.5 with 17x9 and 5" backspace
• 35x12.5 with 18x9 and 5" backspace
• 35x12.5 with 20x9 and 5" backspace

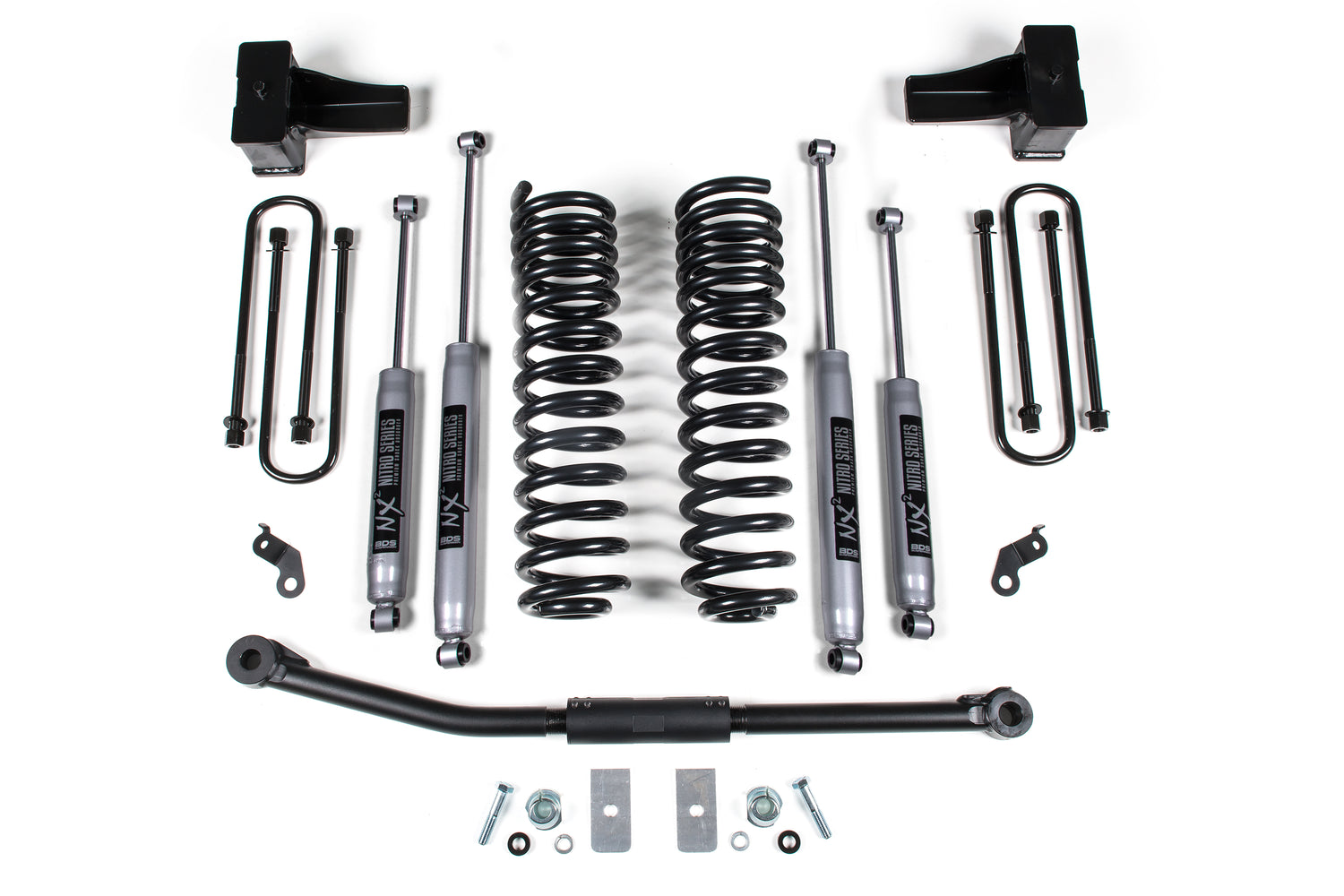

Includes

• BDS013254, 2005-15 F250 2.5 InchFront Box Kit (UPC 658848613212)
• BDS013408, 2011-15 F250 4 Inch Rear Block Kit (UPC 658848613403)
• BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair (UPC 658848616480)
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
