2011-2016 Superduty 2.5" Lift Kit with FOX 2.0 Performance Shocks (BDS1925FS)

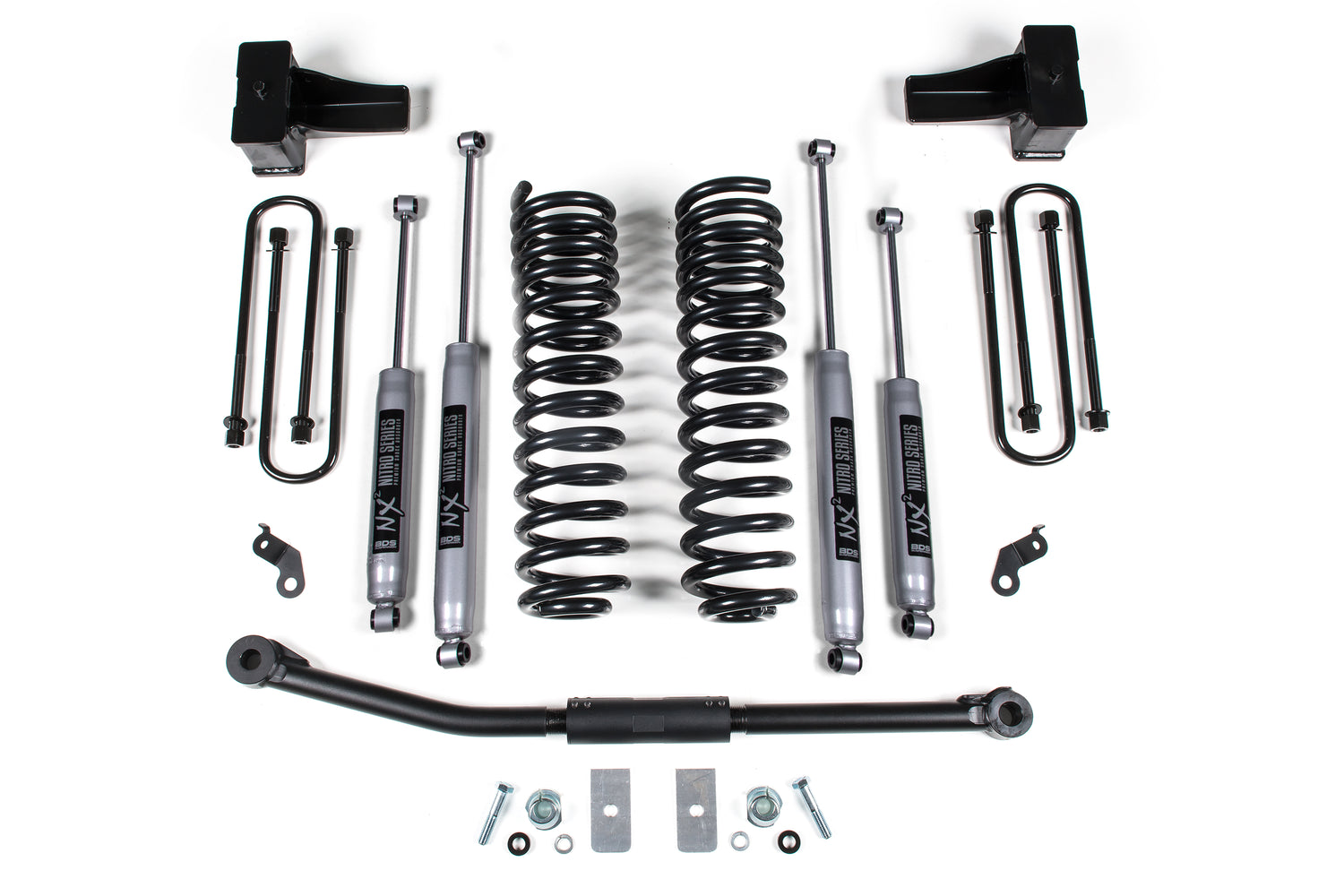

Level and improve the ride of your 2011-2016 Ford F-250 and F-350 Super Duty diesel truck with this BDS 2.5" radius arm lift kit with clearance for up to 35" tires. Up front the kit includes diesel-specific Pro-Ride dual-rate coil springs, a high-strength 1-3/8" solid steel adjustable track bar for steering correction, brake line brackets, and precision-tuned nitrogen-charged shocks. The rear uses a high-strength fabricated lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks. The adjustable track bar bolts into the factory mounting points to recenter the front axle.

Features

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method : Coil Spring
• Rear Lift Method : Block
• Shocks Included : Yes
• Front Lift Height : 2.5 inch
• Rear Lift Height : 4 inch

Notes

• Designed for Diesel models w/o top mounted overload rear springs.
• Models equipped with a 3-3/4 inch rear block from the factory do not require a rear block kit in order to achieve a more level stance. For a more tail-high stance, substitute 013519 5 inch rear block kit.
• Trimming may be required.
• Fitment: 35 x 12.5 with 17 x 9 and 5 in. Backspace; 35 x 12.5 with 18 x 9 and 5 in. Backspace; 35 x 12.5 with 20 x 9 and 5 in. Backspace.

Includes

• BDS013254, 2005-15 F250 2.5 InchFront Box Kit (UPC 658848613212)
• BDS013519, 2005-up Ford F250/F350 5in Rear Block (UPC 658848613625)
• BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair (UPC 658848616480)
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
