2011-2016 Superduty 2.5" FOX 2.5 Performance Elite Conversion Kit (BDS1925FPE)

Level and upgrade your 2011-2016 Ford F-250 and F-350 Super Duty diesel truck with this BDS 2.5" radius arm lift kit and FOX Performance Elite coil-over conversion, with clearance for up to 35" tires. Up front the kit includes diesel-specific FOX 2.5 coil-over shocks, a high-strength 1-3/8" solid steel adjustable track bar for steering correction, brake line brackets, and precision-tuned nitrogen-charged shocks. The rear uses a high-strength fabricated lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks. The Dual Speed Compression Adjust adjuster offers 10 low-speed and 12 high-speed compression levels with a black anodized reservoir for cooling.

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 2.5 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Exhaust modification may be required to clear the front driveshaft (gas only)
• Front bumper spacer kit may be required to run 38 inch x 15.50 inch Tires
• Although extremely rare, front driveline vibration may occur
• If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (123406) will be required
• Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
• If equipped with a rear sway bar, 123009 is required.
• U-bolts will not work on dually.
• Front auxiliary shocks can be omitted from kit - the system can be used with Coil Over installed alone
• BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.

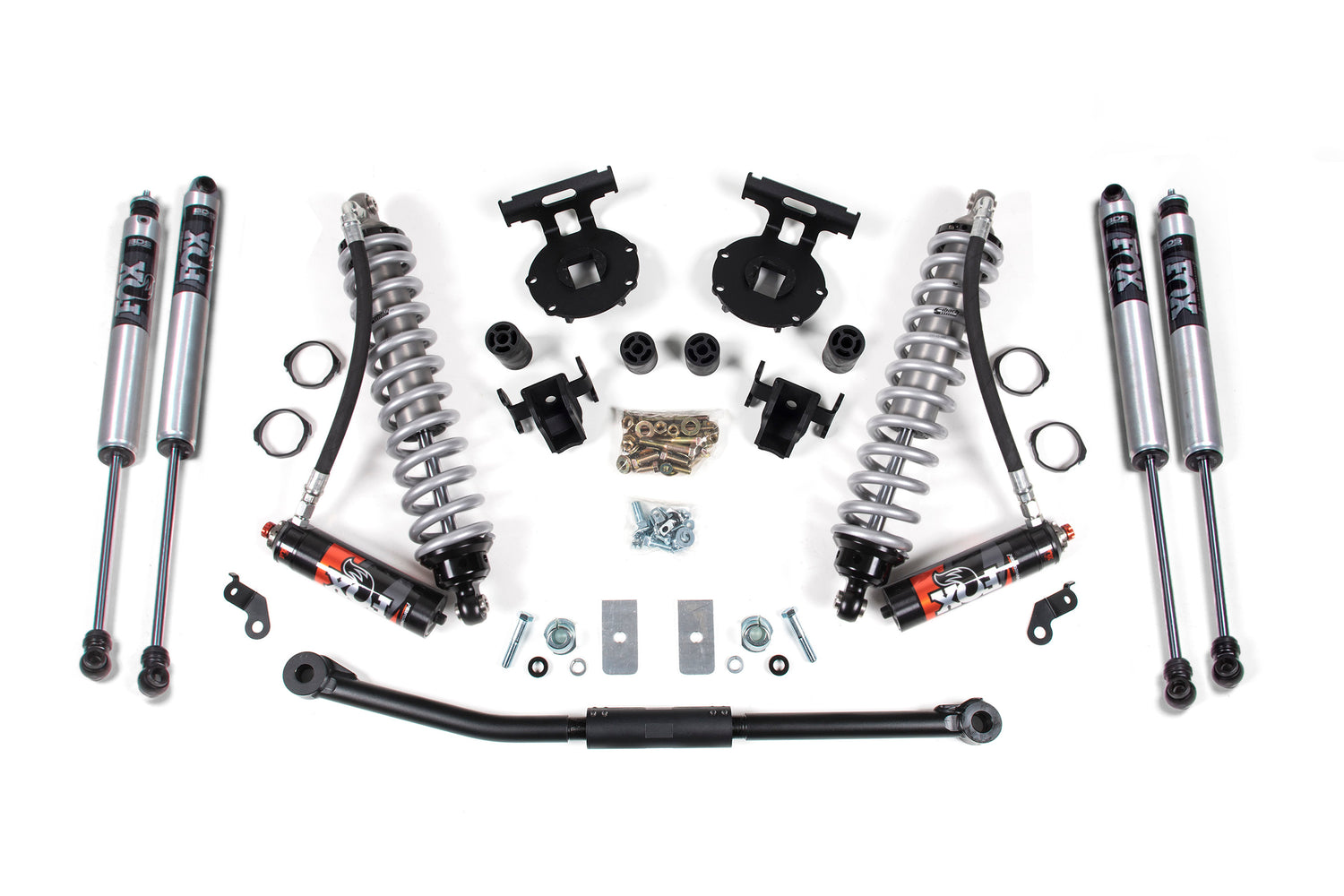

Includes

• BDS013254, 2005-15 F250 2.5 InchFront Box Kit (UPC 658848613212)
• BDS013519, 2005-up Ford F250/F350 5in Rear Block (UPC 658848613625)
• BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch) (UPC 711745604063)
• FOX88406426, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2.5 inch Lift, Dual Speed Compression Adjust
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
