2011-2016 Superduty 2.5" FOX 2.5 Performance Elite Conversion Kit (BDS1509FPE)

BDS 2.5" radius arm lift kit with FOX 2.5 Performance Elite coil-overs for 2011-2016 Ford F250 and F350 Super Duty diesel trucks, with clearance for up to 35" tires. Up front it pairs diesel-specific FOX 2.5 coil-overs with heavy-duty replacement radius arms that correct caster, a 1-3/8" solid steel adjustable track bar to recenter the front axle, and brake line brackets. The rear uses a fabricated lift block, longer u-bolts, and matching FOX Performance shocks.

The FOX 2.5 Performance Elite shocks come tuned and ready to bolt on, with a remote reservoir to keep fluid cool and a DSC adjuster offering 10 low-speed and 12 high-speed compression settings.

Features

• FOX 2.5 coil-over mounts in factory coil bucket location
• Adds a secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Adjustable solid steel track bar recenters the front axle
• Fabricated steel blocks provide a level stance front to rear
• FOX shocks are fully serviceable and corrosion resistant

Notes

• Trimming may be required
• 35x12.5 with 17x9 and 5" backspace
• 35x12.5 with 18x9 and 5" backspace
• 35x12.5 with 20x9 and 5" backspace

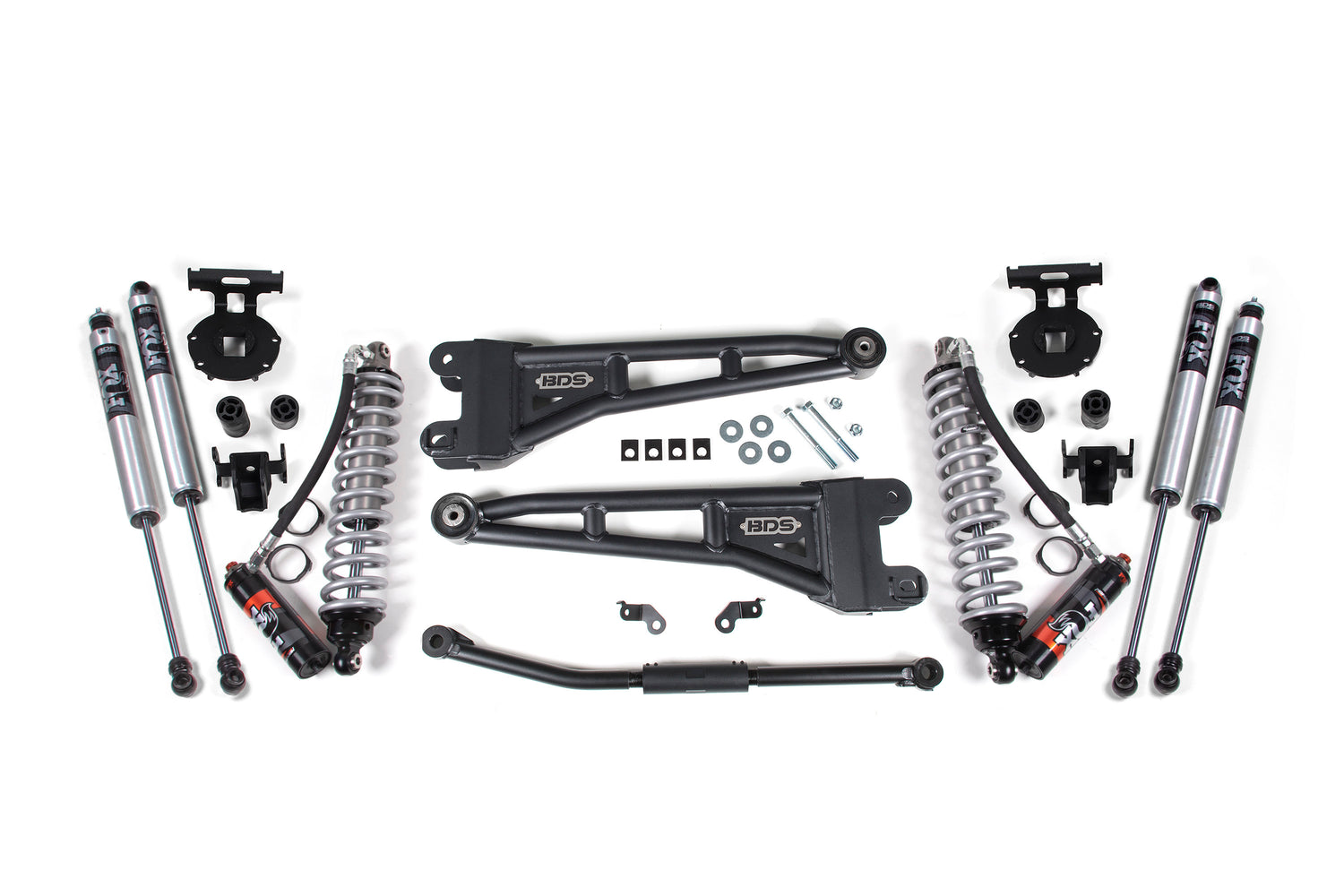

Includes

• BDS013255, 2011-2015 F250 2.5in Front Box Kit (UPC 658848613229)
• BDS013408, 2011-15 F250 4in Rear Block Kit (UPC 658848613403)
• BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch) (UPC 711745604063)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• FOX88406426, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2.5 inch Lift, Dual Speed Compression Adjust
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
