2011-2016 Superduty 4" Lift Kit with NX2 Nitro Shocks (BDS578H)

Update the look of your 2011-2016 Ford F250 and F350 Super Duty gas powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Features

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Steel lift blocks with built-in bump stop provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8 inch block for level to tail high stance. Single add-a-leaf kit 113218 recommended for more level stance - Dual add-a-leaf kit 113209 recommended for tail high stance. (Add-a-leafs do not apply to rear leaf spring equipped systems)
• Front exhaust modification may be required to clear front drive shaft (gas only).
• If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front and/or rear driveline vibration may occur.
• If equipped with rear sway bar, #123009 required.
• U-bolts will not work on dually.

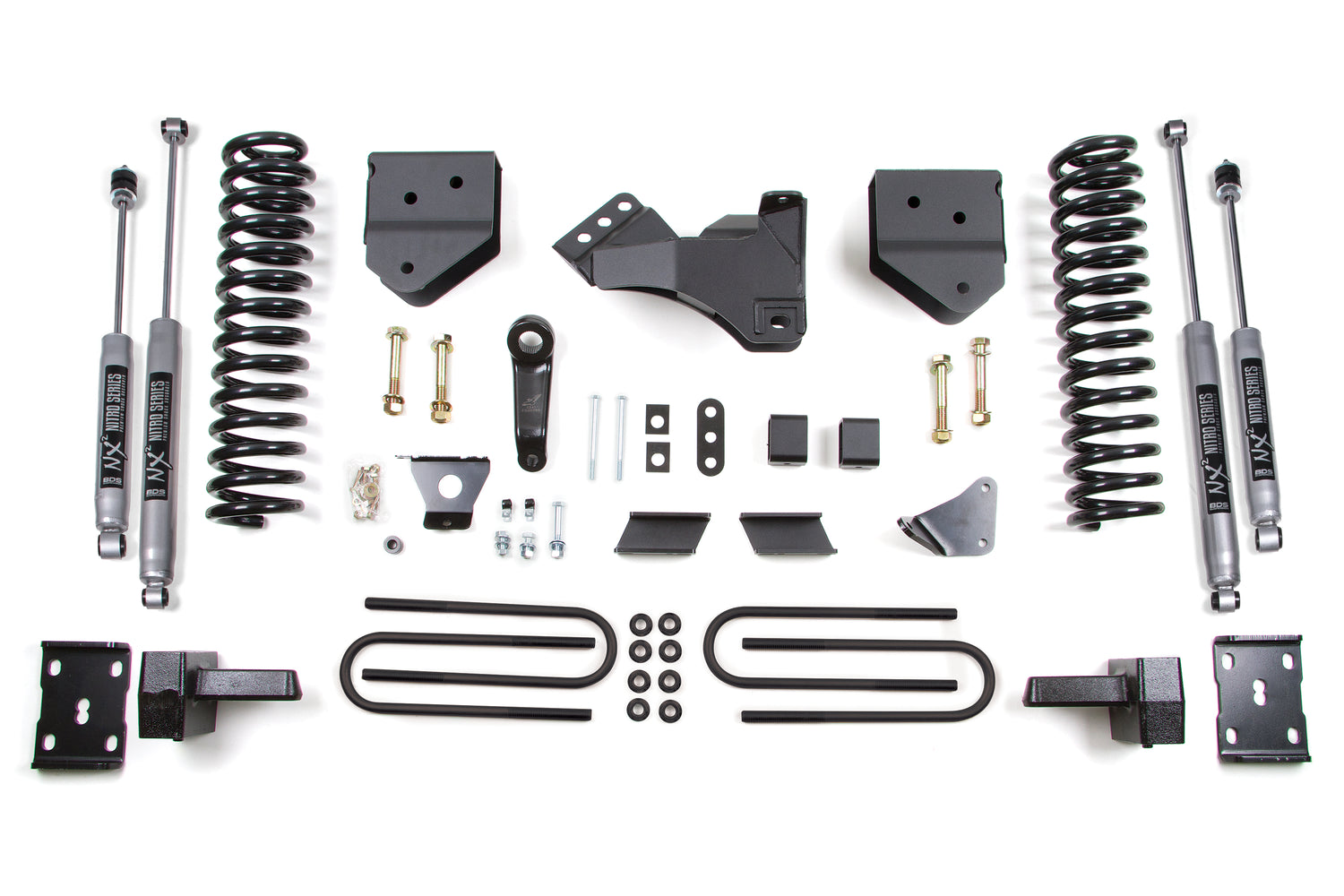

Includes

• BDS013413, 11 Ford F250/350 4 Inch Box kit (UPC 658848613441)
• BDS013519, 2005-up Ford F250/F350 5in Rear Block (UPC 658848613625)
• BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit (UPC 658848616534)
• BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 (UPC 711745609495)
• BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609693)
