2011-2016 Superduty 4" Lift Kit with FOX 2.0 Performance Shocks (BDS1596FS)

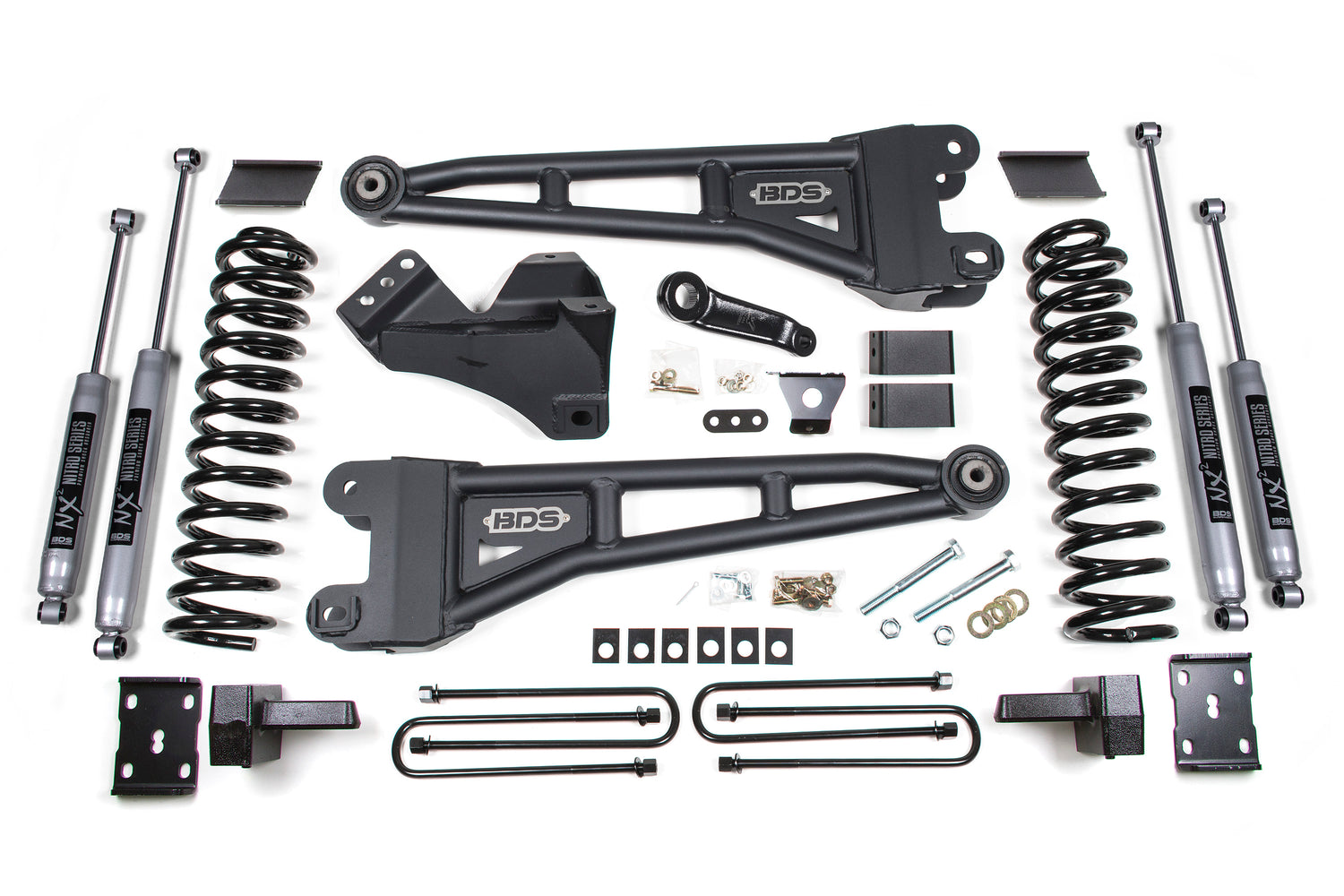

Improve the ride on your 2011-2016 Ford F250/F350 Super Duty diesel with this BDS 4" radius arm lift kit, clearing up to 35" tires. Up front it includes diesel-specific Pro-Ride coil springs, heavy-duty replacement tubular radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and nitrogen charged shocks. The rear uses a high-strength fabricated lift block, a u-bolt flip kit for max ground clearance, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Features

• Pro-Ride dual rate coil springs for a smooth ride on any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Track bar relocation bracket and drop pitman arm maintain proper steering angles
• Fabricated steel rear block for a level front-to-rear stance
• U-bolt flip kit for maximum ground clearance
• Cast iron drop brackets designed to provide correct pinion angles
• Standard NX2 Nitro shocks with vehicle-specific valving
• Optional FOX 2.0 Performance Series shocks for maximum on and off-road performance
• FOX 2.0: 2" Impact extruded aluminum body, Internal Floating Piston monotube, CNC machined 6061-T6 aluminum ends, 5/8" hard chrome shaft, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 4.5

Notes

• Removal of factory block required. Net rear lift height will vary depending on the height of the factory block but will result in a level stance.
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front and/or rear driveline vibration may occur.
• If equipped with a rear sway bar, #123009 is required.
• U-bolts will not work on dually.

Includes

• BDS013424, 2011-2016 Ford F250/F350 4 inch Radius Arm Front Box Kit (UPC 658848613502)
• BDS013519, 2005-up Ford F250/F350 5in Rear Block (UPC 658848613625)
• BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel (UPC 658848616527)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
