2011-2016 Superduty 4" FOX 2.5 Performance Elite Conversion Kit (BDS1596FPE)

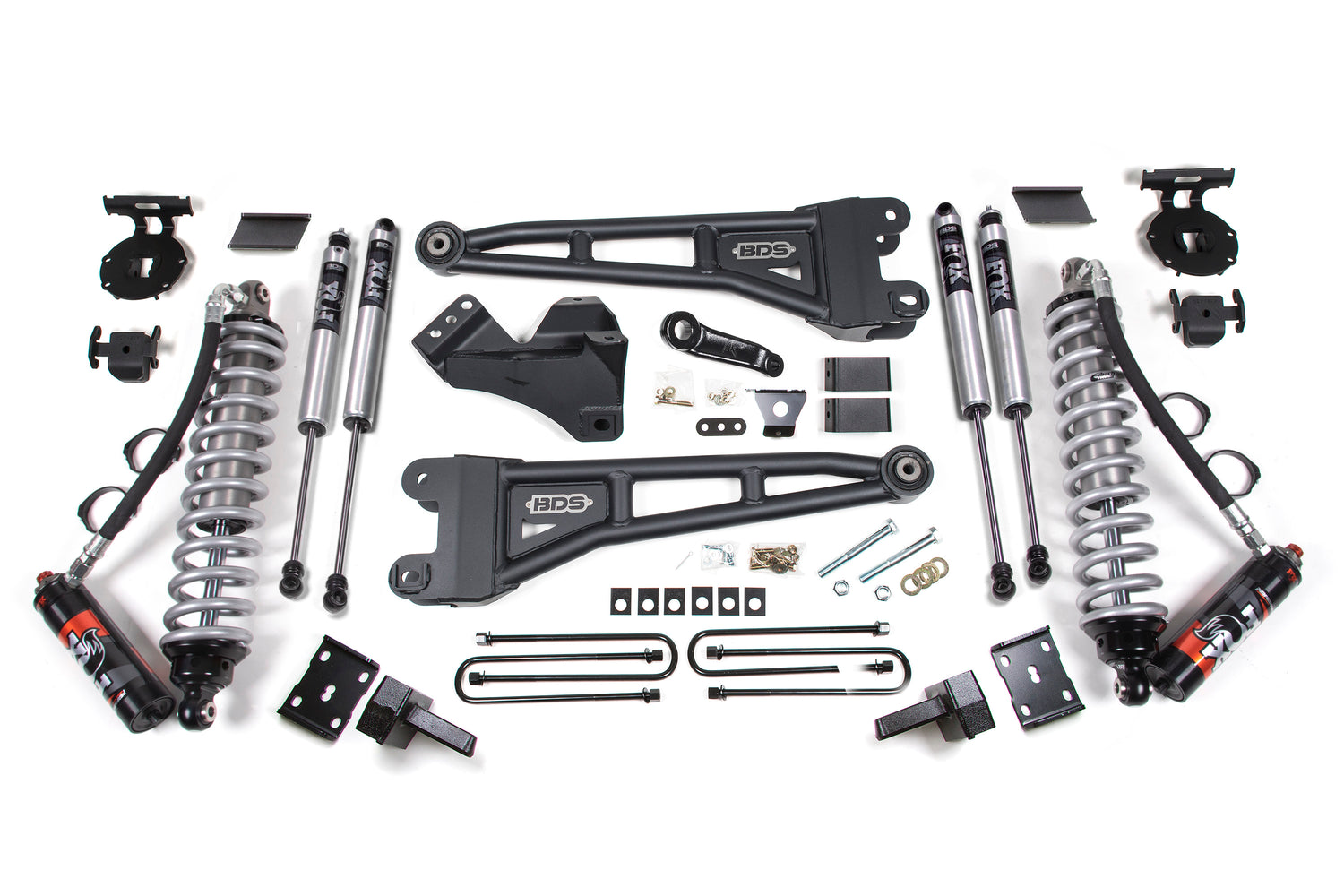

Built to outperform, upgrade your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear this kit utilizes a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of FOX Performance shocks.

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments
• Included in the base system.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 4.5

Notes

• Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8 inch block for the level to tail high stance.
• Single add-a-leaf kit 113218 recommended for more level stance - Dual add-a-leaf kit 113209 recommended for tail high stance.
• (Add-A-Leafs do not apply to rear leaf spring-equipped systems)
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit (123402) may be required.
• Although extremely rare, front and/or rear driveline vibration may occur.
• If equipped with a rear sway bar, 123009 is required.
• U-bolts will not work on dually.

Includes

• BDS013424, 2011-2016 Ford F250/F350 4 inch Radius Arm Front Box Kit (UPC 658848613502)
• BDS013519, 2005-up Ford F250/F350 5in Rear Block (UPC 658848613625)
• BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch) (UPC 711745604063)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• FOX88406427, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 4 inch Lift, Dual Speed Compression Adjust
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
