2011-2016 Superduty 6" Lift Kit with NX2 Nitro Shocks (BDS1595H)

Take your 2011-2016 Ford Super Duty F250 and F350 gas truck to the next level with this 6-inch radius-arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual-rate coil springs provide a remarkable ride through any terrain
• Heavy-duty tubular steel radius arms correct caster while maximizing ground clearance
• Track-bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control

Shock Features

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8 inch high-flow piston
• Self-lubricating seals
• Silver powder-coat finish

Coil Spring Features

A pair of full-length, gas-specific Pro-Ride coil springs are supplied to provide the correct lift height and a smooth, predictable ride across various terrains.

Radius Arm Features

In place of the factory stamped-steel radius arms, BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights, along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Leaf Spring Features

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring-rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf-spring design where the main leaf pack is broken into two stages. First, the primary three leaves are functional with no additional load in the vehicle for excellent everyday ride quality; as moderate loads are applied, the secondary leaves are engaged. Second, if the truck is fully loaded, the bottom overload is engaged for maximum hauling capacity. This setup allows your truck to maintain ride quality unloaded without sacrificing payload. Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch
• Shocks Included: Yes

Notes

• Front exhaust modification may be required to clear the front drive shaft (gas only).
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front driveline vibration may occur.
• If equipped with a rear sway bar, 123009 is required.
• U-bolts will not work on dually.

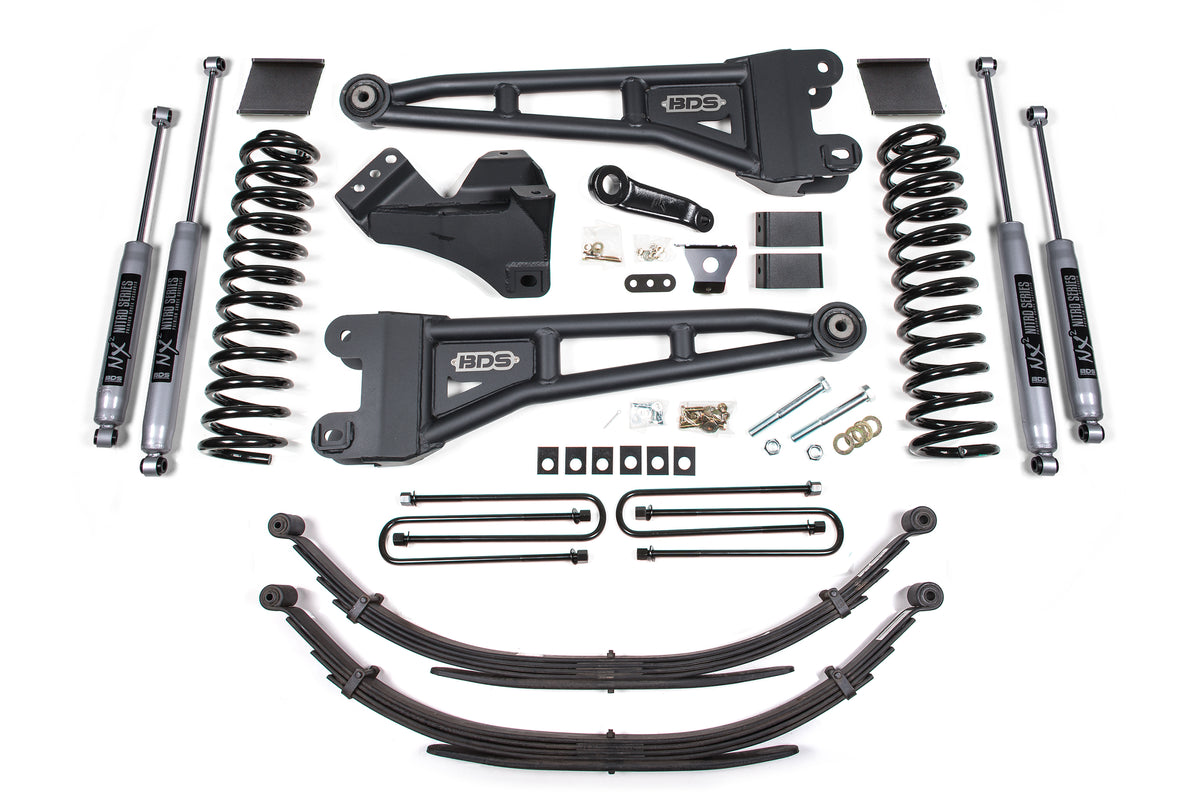

Includes

• BDS003629 - Ford F250/350 6 Inch Rear Spring (UPC 658848611393), Qty 2
• BDS013609 - 2011-2016 Ford F250/F350 Rear Box Kit - 3-1/2 Inch Factory Block (UPC 658848613779)
• BDS013614 - 2011-2016 Ford F250/F350 6 Inch Radius Arm Front Box Kit (UPC 711745611795)
• BDS033612 - 2005-2016 Ford F250/F350 6 Inch (Gas) Coil Kit (UPC 658848616596)
• BDS123251 - 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS85750 - Shock 27.40 x 16.20 x 2-3/8, S50/EB2 (UPC 711745609600), Qty 2
• BDS85760 - Shock 33.00 x 19.25 x 2-3/8, EB1/EB1 (UPC 711745609693), Qty 2

Manufacturer Description

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm and track-bar bracket for steering correction, sway-bar relocation, brake-line brackets, and custom-tuned nitrogen-charged shocks. In the rear the kit utilizes replacement Glide-Ride leaf springs with integrated overload leaf, u-bolts, brake-line brackets, and a matching set of NX2 Nitro or FOX Performance shocks. This lift system retains the factory 3 inch rear blocks with the addition of the new BDS leaf springs to achieve a level stance.
