2011-2016 Superduty 6" Lift Kit with FOX 2.0 Performance Shocks (BDS1595FS)

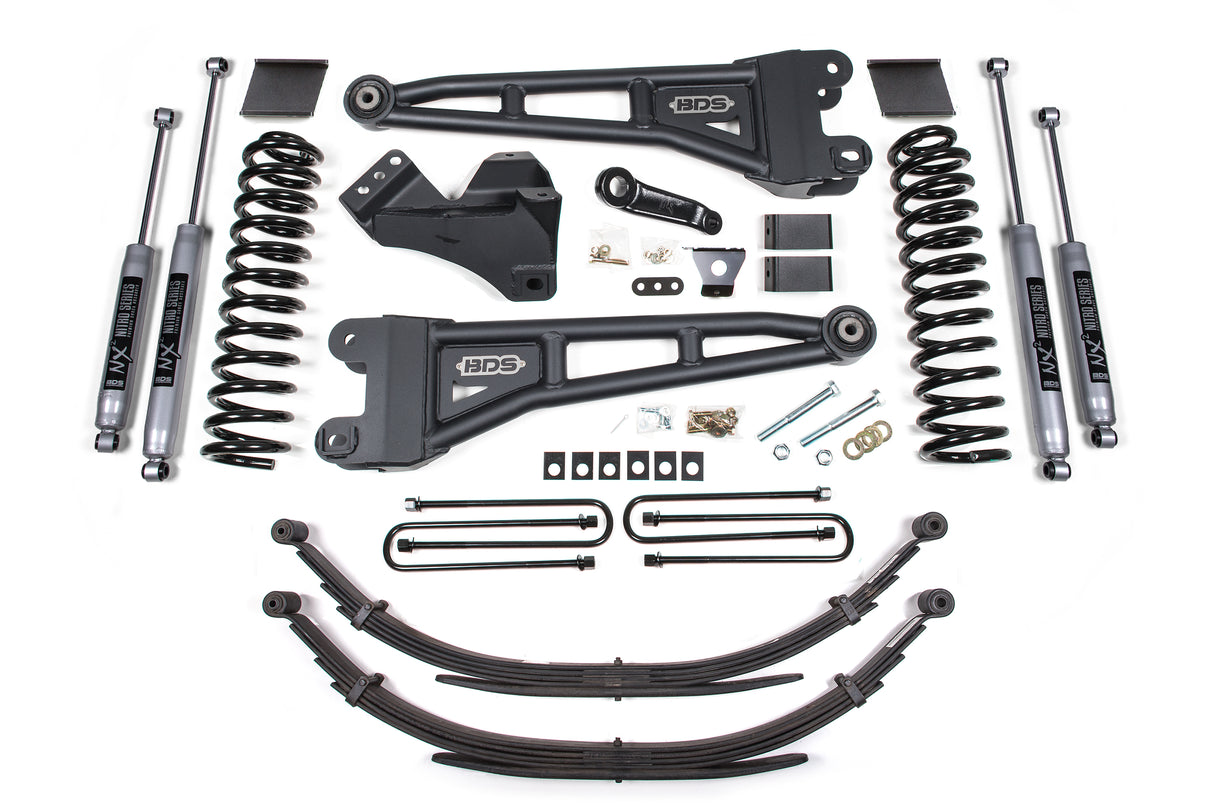

Take your 2011-2016 Ford Super Duty F250/F350 gas truck to the next level with this BDS 6" radius arm lift kit, clearing up to 37" tires. Up front it includes gas-specific Pro-Ride coil springs, heavy-duty replacement tubular radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and nitrogen charged shocks. The rear uses replacement Glide-Ride leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

The triple-stage Glide-Ride leaf springs reduce axle wrap and hold ride quality from unloaded to fully loaded, retaining the factory rear blocks for a level stance.

Features

• Pro-Ride dual rate coil springs for a smooth ride on any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Track bar relocation bracket and drop pitman arm maintain proper steering angles
• Triple-stage Glide-Ride leaf springs: primary three leafs for everyday ride, secondary leafs for moderate loads, bottom overload for max hauling
• Standard NX2 Nitro shocks with vehicle-specific valving
• Optional FOX 2.0 Performance Series shocks for maximum on and off-road performance
• FOX 2.0: 2" Impact extruded aluminum body, Internal Floating Piston monotube, CNC machined 6061-T6 aluminum ends, 5/8" hard chrome shaft, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 6 Inch
• Rear Lift Height: 4 Inch

Notes

• Front exhaust modification may be required to clear the front drive shaft (gas only).
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front driveline vibration may occur.
• If equipped with a rear sway bar, 123009 is required.
• U-bolts will not work on dually.

Includes

• BDS003629, Ford F250/350 6 Inch Rear Spring (UPC 658848611393)
• BDS013609, 2011-2016 Ford F250/F350 Rear Box Kit -- 3-1/2 Inch Factory Block (UPC 658848613779)
• BDS013614, 2011-2016 Ford F250/F350 6 Inch Radius Arm Front Box Kit (UPC 711745611795)
• BDS033612, 2005-2016 Ford F250/F350 6 Inch (Gas) Coil Kit (UPC 658848616596)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
