2011-2016 Superduty 8" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1500FS)

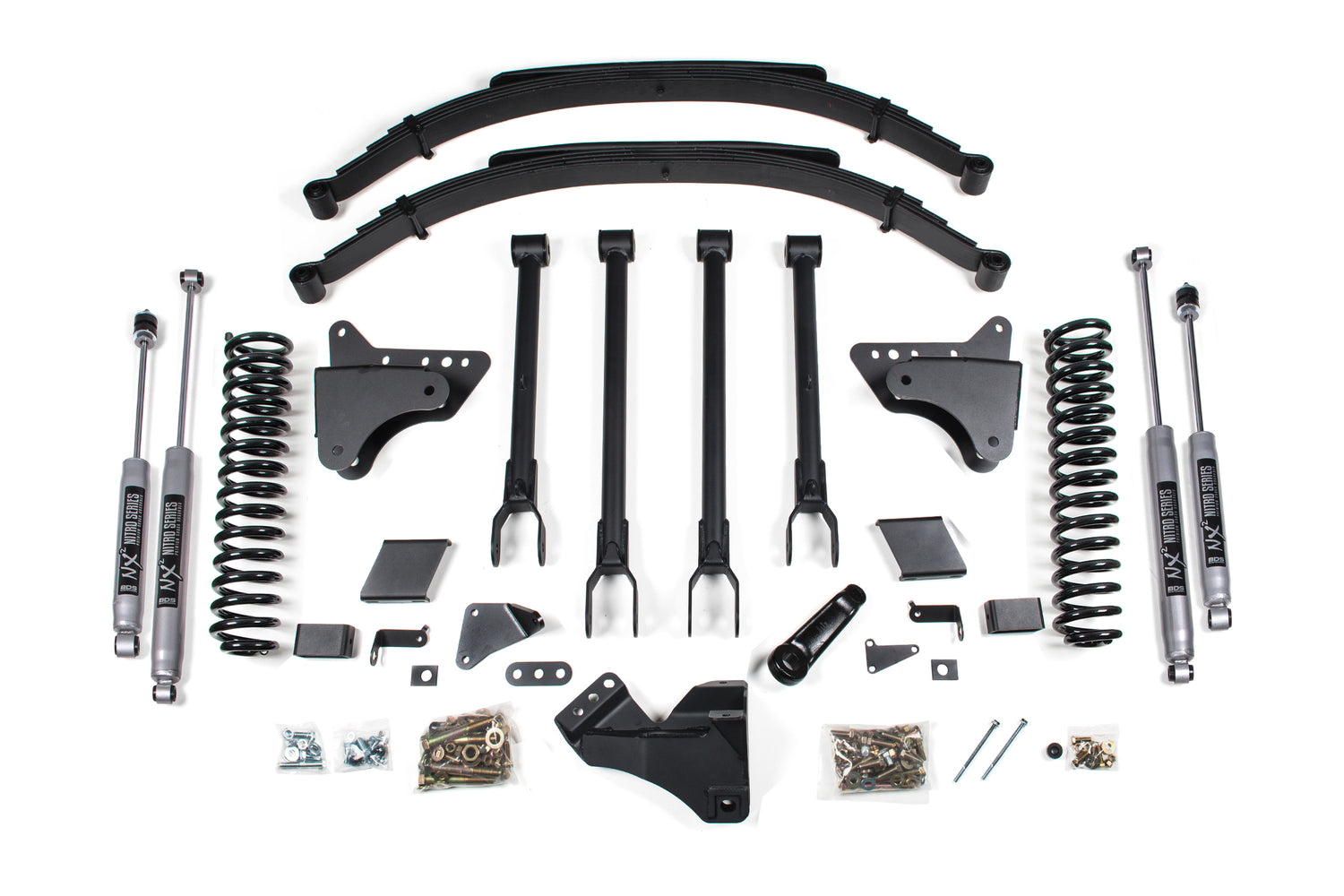

BDS 8" lift kit with 4-link conversion for 2011-2016 Ford Super Duty F250 and F350 diesel trucks, with clearance for up to 38" tires. Up front are diesel-specific Pro-Ride coil springs, heavy-duty 4-link control arms, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and nitrogen charged shocks. The rear uses replacement Glide-Ride leaf springs with integrated overload leaf, u-bolts, brake line brackets, and NX2 Nitro or FOX Performance shocks. The triple-stage Glide-Ride springs reduce axle wrap and stay smooth loaded or unloaded.

Features

• 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty 4-link control arms improve handling, stability, strength, and caster control through wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Glide-Ride leaf springs provide full lift height and added capacity with a built-in overload spring
• Standard NX2 Nitro shocks with vehicle-specific valving
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 38x15.5
• Wheel Diameter: 18x9, 20x10
• Back Spacing: 4.5/4.5

Notes

• Front bumper spacer kit may be required to run 38x15.50 tires
• Although extremely rare, front driveline vibration may occur
• If equipped with a 2-piece rear driveshaft, a driveshaft alignment kit (#123406) is required
• Front driveshaft u-joints may max out at full droop; if so, a new front shaft is required
• If equipped with a rear sway bar, #123009 is required
• U-bolts will not work on dually
• Leaf springs are not intended for use beyond the truck's max payload capacity; trucks with overload springs will only have the capacity of a non-overload truck. For heavy payload use, supplemental rear airbags are recommended.
• Front auxiliary shocks can be omitted; the system can run with the coil-over installed alone

Includes

• BDS003829, 08-16 Ford F250 8 inch Rear Leaf (UPC 658848611430)
• BDS013810, 05 Ford F250/350 4-link Box Kit (1of2) (UPC 658848613854)
• BDS013813, 11-16 Ford Super Duty 8in Box Kit (UPC 658848613885)
• BDS033811, 05 Ford F250 SD Diesel 8in Coil Kit (UPC 658848616602)
• FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• FOX98224765, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1
