2011-2016 Superduty 8" 4-Link Conversion Kit with FOX 2.5 Performance Elite Shocks (BDS1500FPE)

Turn heads with this BDS 8" lift kit and FOX 2.5 Performance Elite coil-over plus 4-link conversion for your 2011-2016 Ford Super Duty F250 and F350 diesel truck, with clearance for up to 38" tires. Up front are diesel-specific FOX 2.5 coil-overs, heavy-duty 4-link control arms, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and custom-tuned FOX 2.0 secondary shocks. The rear uses replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and FOX 2.0 Performance shocks. The DSC adjuster offers 10 low-speed and 12 high-speed compression levels.

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glideride leaf springs provide full lift height and increased capacity with a built-in overload spring
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 38x15.5
• Wheel Diameter: 18x9, 20x10
• Back Spacing: 4.5/4.58

Notes

• Exhaust modification may be required to clear the front driveshaft (gas only).
• Front bumper spacer kit may be required to run 38x15.50" tires.
• Although extremely rare, front driveline vibration may occur.
• If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required.
• Front driveshaft u-joints may max out at full droop; if so, a new front shaft will be required.
• If equipped with a rear sway bar, 123009 is required.
• U-bolts will not work on dually.
• Front auxiliary shocks can be omitted; the system can be used with the coil-over installed alone.
• BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks with overload springs will only have the capacity of a non-overload truck; for heavy payload use, supplemental rear airbags are recommended.

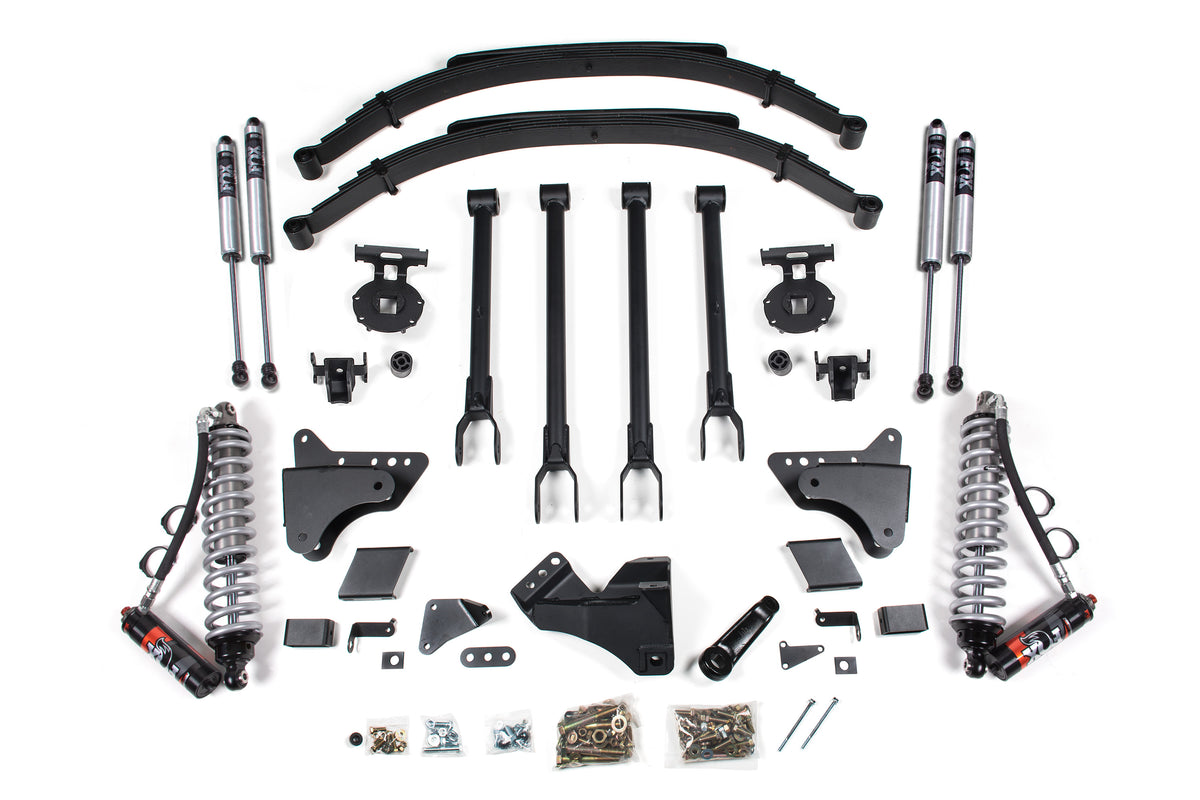

Includes

• BDS003829, 08-16 Ford F250 8 inch Rear Leaf (UPC 658848611430)
• BDS013810, 05 Ford F250/350 4-link Box Kit (1of2) (UPC 658848613854)
• BDS013813, 11-16 Ford Super Duty 8in Box Kit (UPC 658848613885)
• BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch) (UPC 711745604063)
• FOX88406429, Kit: BDS 05-ON Ford SD, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 8 inch Lift, Dual Speed Compression Adjust
• FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• FOX98224765, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1
