2011-2016 Superduty Diesel 4" Lift Kit, Leaf Springs FOX 2.0 Performance Shocs (BDS592FS)

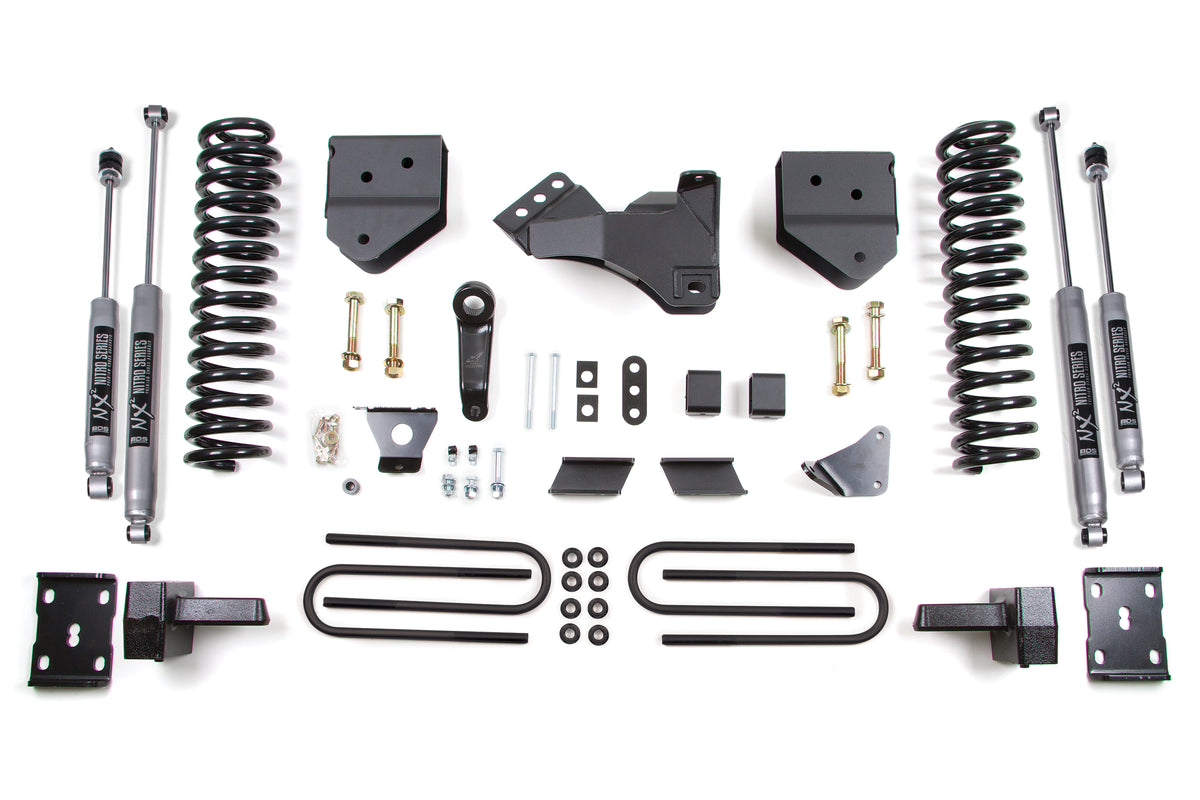

This BDS Suspension 4" lift kit increases ground clearance on your 2011-2016 Ford F250 and F350 Super Duty diesel truck with room for up to 35" tires. Up front it includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets for correct caster, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and FOX 2.0 Performance Series shocks. The rear uses a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets, and matching FOX 2.0 shocks.

Features

• Easy, 100 percent bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty radius arm drop brackets provide correct caster and maintain stock driving characteristics
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Steel lift blocks with built-in bump stop provide level stance front to rear
• 2-inch Impact extruded aluminum shock body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• Recommended tire and wheel combinations (trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. backspace; 35 x 12.5 with 18 x 9 and 4.5 in. backspace; 35 x 12.5 with 20 x 9 and 4.5 in. backspace.

Includes

• BDS003629, Ford F250/350 6 Inch Rear Spring (UPC 658848611393)
• BDS013409, 2011-2016 Ford F250/350 Rear Box Kit (UPC 658848613410)
• BDS013413, 11 Ford F250/350 4 Inch Box kit (UPC 658848613441)
• BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel (UPC 658848616527)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
