2011-2016 Superduty 6" Lift Kit with NX2 Nitro Shocks (BDS594H)

This BDS 6" lift kit improves tire clearance on your 2011-2016 Ford Super Duty F250 and F350 diesel truck with room for up to 37" tires. Up front it includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets for correct caster, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and NX2 Nitro shocks. The rear runs replacement Glide-Ride triple-stage leaf springs with integrated overload leaf, u-bolts, brake line brackets, and matching NX2 Nitro shocks.

The triple-stage Glide-Ride pack keeps everyday ride quality unloaded while engaging secondary and overload leafs as load increases, so it holds payload without sacrificing comfort.

Features

• Easy, 100 percent bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty radius arm drop brackets provide correct caster and maintain stock driving characteristics
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glide-Ride triple-stage leaf springs with integrated overload reduce axle wrap and hold payload without sacrificing unloaded ride
• Nitrogen-charged twin-tube shock design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front driveline vibration may occur.
• If equipped with a rear sway bar, #123009 is required.
• U-bolts will not work on dually.
• This lift retains the factory rear blocks; choose the height of your factory lift blocks for proper u-bolt length.

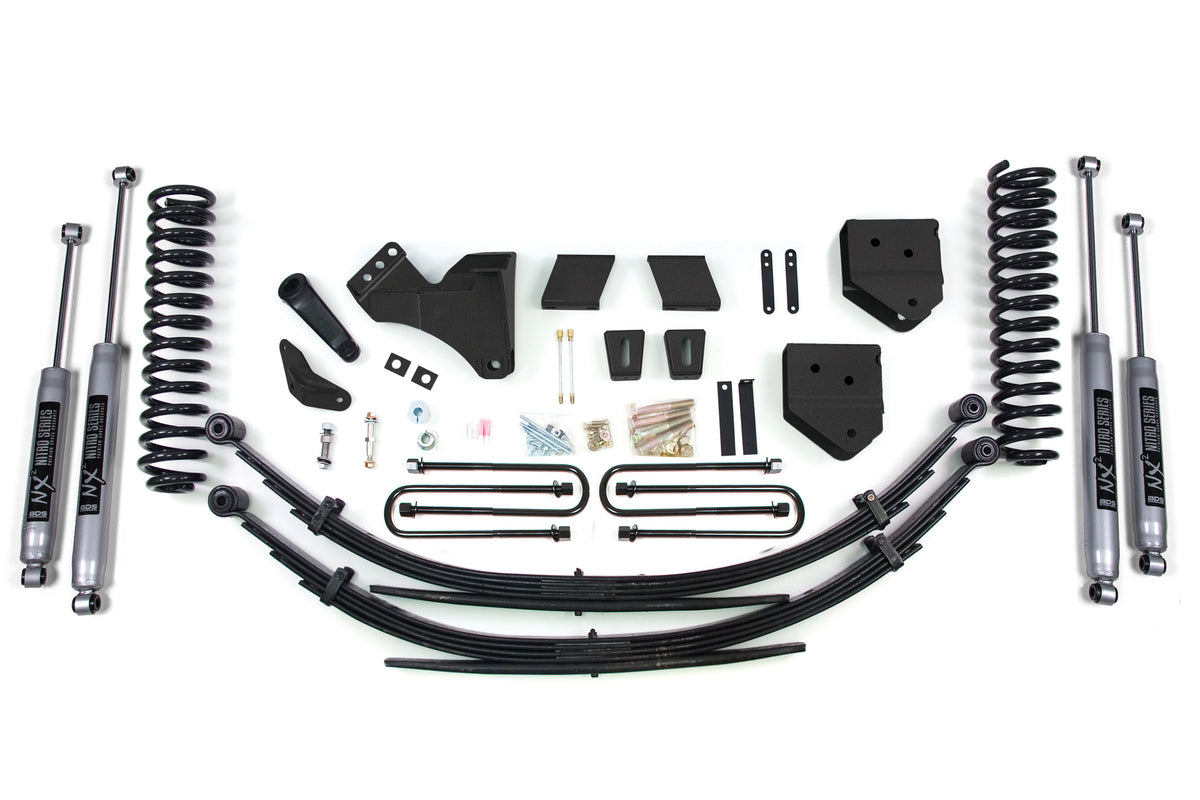

Includes

• BDS003629, Ford F250/350 6 Inch Rear Spring (UPC 658848611393)
• BDS013608, 2011-2016 Ford F250/F350 Rear Box Kit -- 2 inch Factory Block (UPC 658848613762)
• BDS013610, 11 Ford F250/350 6 Inch Box Kit (UPC 658848613786)
• BDS033611, 2005-2022 Ford F250/F350 6 inch (Diesel) Coil Kit (UPC 658848616589)
• BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609600)
• BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609693)
