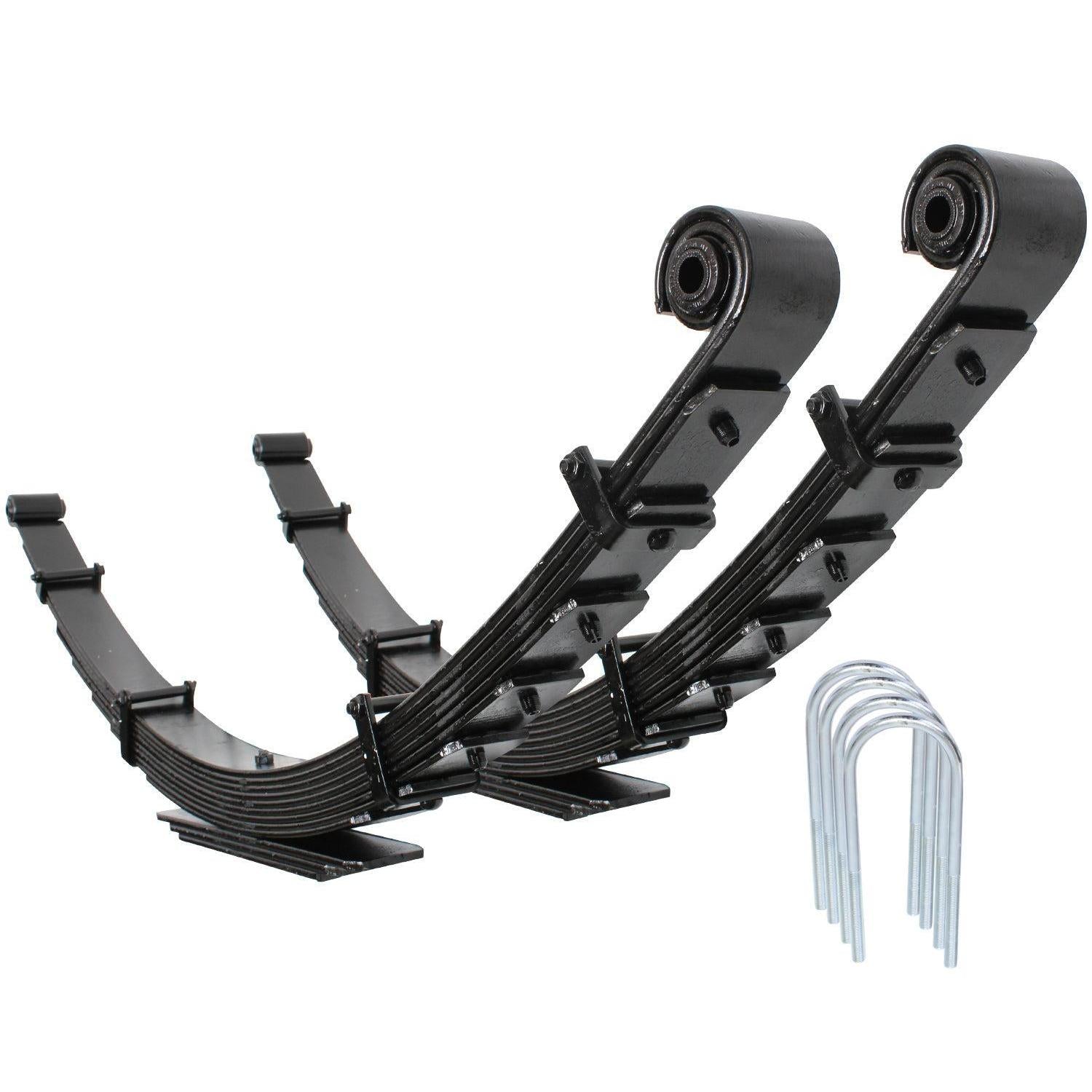

2011-2016 Super Duty 4x4 Full Progressive Leaf Spring Kit - 1" Lift (CS-FFSP-LVL-11)

Description

Designed and built by Deaver Suspension, these Carli Front Leaf Springs provide 15" of increased wheel travel, 1" of rear lift, and deliver smoother suspension cycling over terrain without the use of lift blocks with only a slight reduction from a standard 3/4-ton load capacity. These leafs feature a 9-leaf main and a 3-leaf overload for less jarring, more mobility in the lower overload, and improved spring rate progression.

Part Number: CS-FFSP-LVL-11

Features

• Provides 1" of rear lift while eliminating the factory block
• Includes U-bolts and bump stop drop kit
• Progressive rate spring reduces payload slightly but provides plush on and off-road ride quality
• Block-eliminating, full progressive spring pack
• Includes new U-bolts, rear bump stop drops
• Allows the use of 37" tires

From Carli Suspension

Carli Suspension worked in conjunction with Deaver Leaf Springs to design a leaf spring pack to match our 2.5″ and 4.5″ Suspension Lifts while providing a much more predictable and supple ride with only a slight reduction from a standard 3/4-ton load capacity. The factory leaf spring packs have 2-4 heavy main springs and an immobile lower overload making for a jarring ride; replacing them with our 9-Leaf main pack and 3-Leaf overload provide much more spring rate progression. This makes for a softer unloaded ride, massive suspension travel increase and impressive capacity as the rear end compresses engaging all the springs.

The Carli Suspension Super Duty Full Spring Pack is designed and built to our specifications supporting up to 15″ of wheel travel. The center-pin is relocated to accommodate (up to) 38 inch tires, 37″ recommended, and levels the rear perfectly to match our 2.5″ front suspension systems. This spring pack delivers smoother suspension cycling in all situations: highway, off road and towing.
