2011-2016 Superduty Progressive Add-A-Pack Kit (CS-FPAP-11)

Description

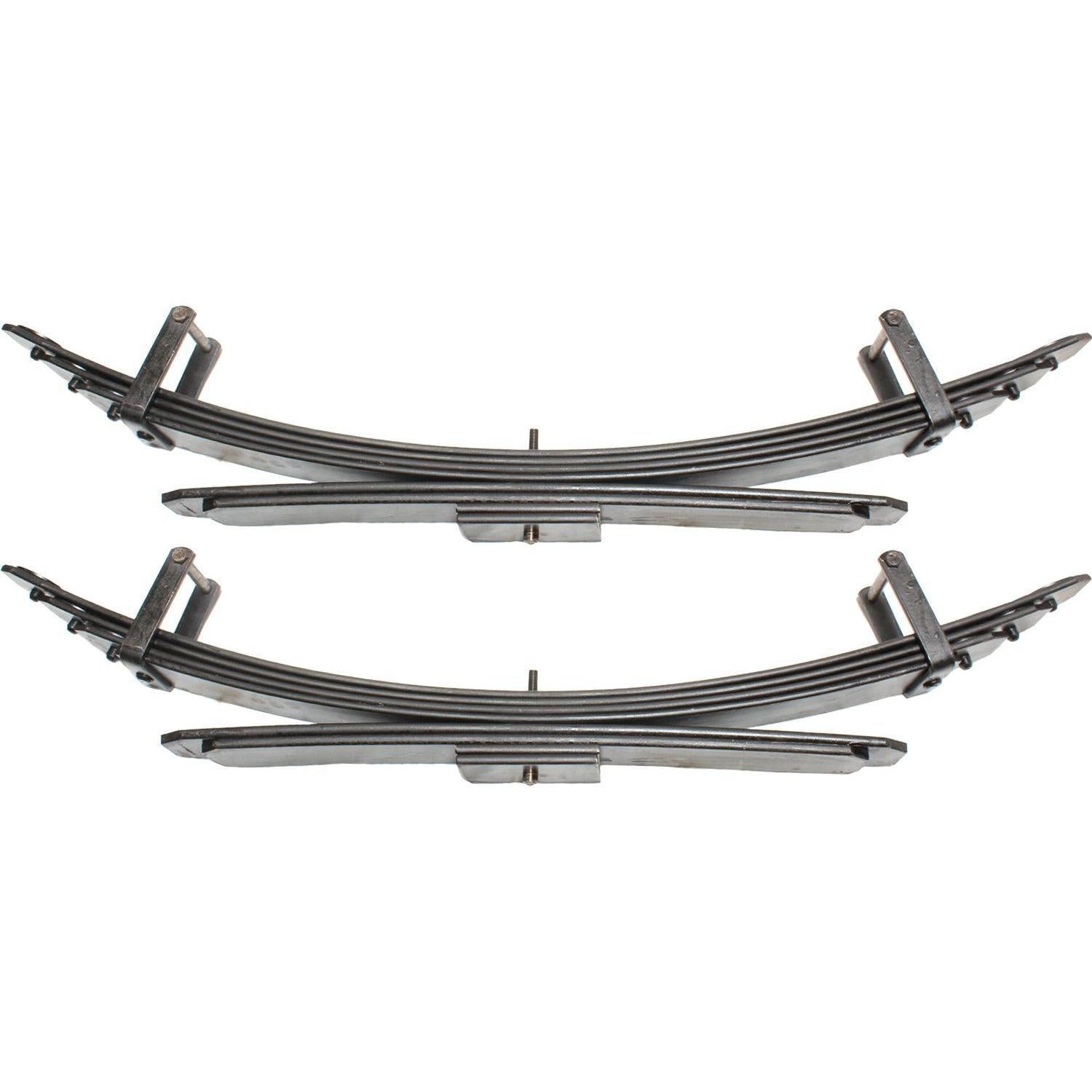

Designed and built in conjunction with Deaver Spring MFG, these Carli Add-A-Pack Leaf Springs eliminate the use of your lower overload leaf, giving you thinner gauge leaves that improve mobility of the springs, traction, predictability, and ride quality off-road and when you're hauling without compromising load capacity.

Part Number: CS-FPAP-11

Features

• Compatible with 3.5" axle tube
• Progressive design addresses the harsh rebound of the factory overload spring
• Includes U-bolts and hardware
• Provides 2" of lift
• Load capacity is maintained, and ride quality is improved

Notes

• When it comes to the F350, the main spring pack in the rear is already quite stiff and does not compress much unless under load. As a result, installing the Add-A-Pack on an F350 may actually make the rear suspension stiffer, potentially even stiffer than the stock setup. For this reason, the Progressive Add-A-Pack is not recommended for an F350. To achieve optimal ride quality, we highly recommend installing Carli Full Replacement Leaf Spring Packs

From Carli Suspension

Our Add-a-Pack rear springs are a proprietary design built for us by Deaver Spring MFG. The lower overload leaf is removed and is replaced with thinner gauge leaves. The O.E.M. load capacity is maintained while improved ride is achieved.

If Pairing to 4.5″ System: Super Duties equipped with a 2″ tall block from the factory will require the factory 3-5/8″ tall Block to achieve a leveled stance to a 4.5″ kit with the Add-a-Pack.
Factory Block Part Number: 7C3Z-5598-HB, 7C3Z-5598-JB

If Pairing to 2.5″ System: Super Duties equipped with a 3-5/8″ tall block from the factory will require the factory 2″ tall Block to achieve a leveled stance to a 2.5″ kit with the Add-a-Pack.
Factory Block Part Number: 7C3Z-5598-L and 7C3Z-5598-K

These packs are designed to eliminate the incredibly harsh rebound of the factory overload spring they replace helping to tame the medium to large bumps when paired with a Carli Suspension System. The Progressive add-a-pack replaces the lower overload springs on the factory pack. This is the 1″ thick leaf that doesn’t follow the contour of the rest of the pack. In removing this spring “wall” and replacing it with a mini progressive leaf pack, the capacity of the truck remains unchanged, as it’s determined by the factory springs, while the progression of the rear spring rate becomes substantially more predictable. The engagement and disengagement of the spring becomes quite a bit smoother increasing both ride quality and traction. As the “wall” was removed, the rear may sit lower with a heavy load BUT it will ride better loaded.

The rear of the Super Duty can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or this factory leaf-pack modifying Progressive Add-a-Pack. This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff (in some cases, more so than stock) in the rear as the main pack doesn’t move much unless loaded. For this reason, we DO NOT recommend these be installed on an F350.

For optimal ride quality, we recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, an aftermarket airbag system should be installed to compliment the Full Progressive Leaf Springs to restore the F350 capacity. In the 4.5″/5.5″ Range, we offer our Long Travel Airbags. If 2.5″/3.5″ height, we recommend a system that will allow the airbags to disconnect from the lower mount during suspension cycling to ensure you’re able to take advantage of all your rear suspension travel.
