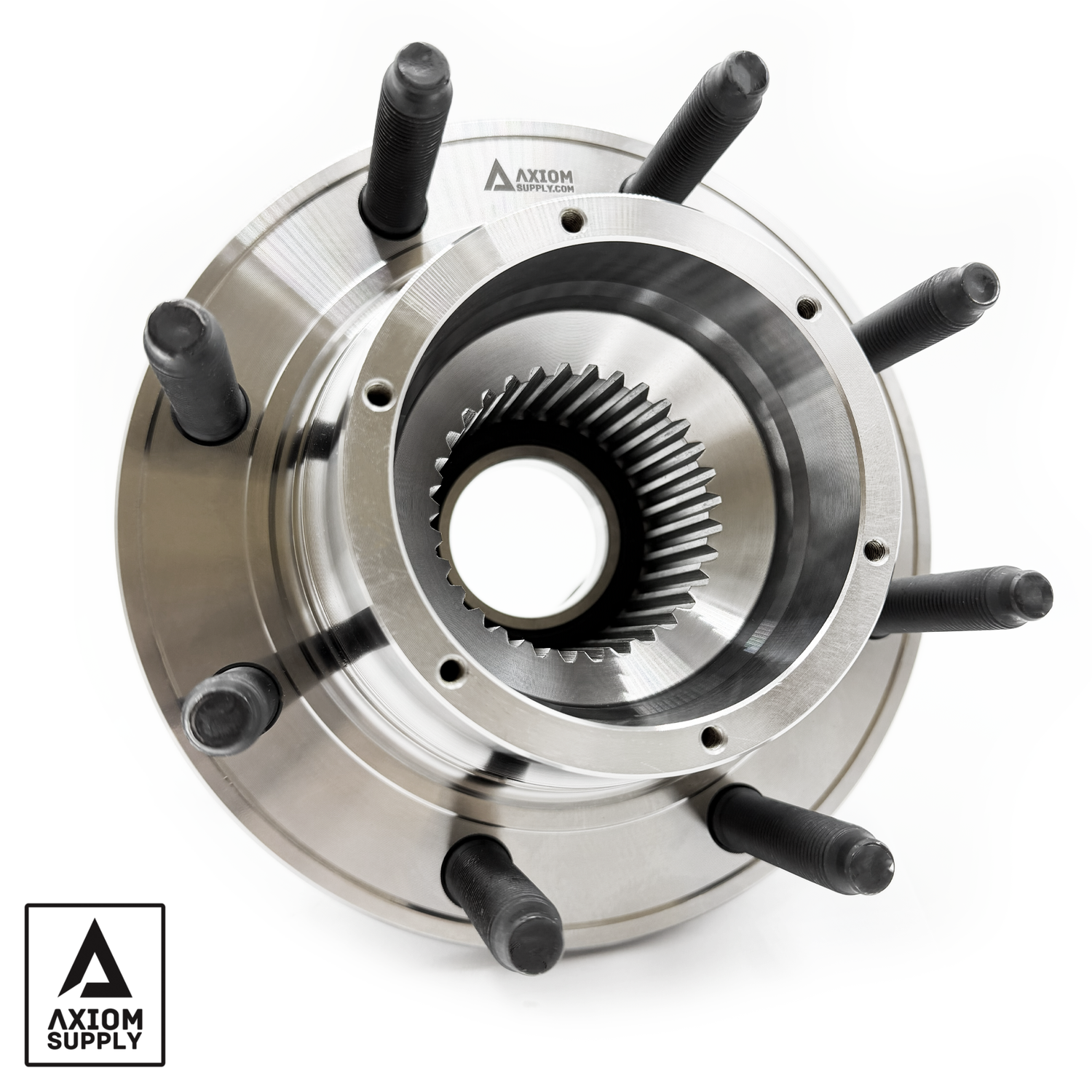

2011-2016 Superduty Wheel Bearing Assembly (AX515130)

The Axiom Supply Wheel Bearing and Hub Assembly is built for professionals who demand reliability from their heavy-duty trucks. Developed with a proprietary bearing and hub structure, this assembly reduces hub-face deflection under load to deliver tighter steering response, improved braking stability, and enhanced durability, even under the stress of towing, oversized tires, or lifted suspension setups. Each assembly is a complete bolt-in unit compatible with both left and right spindles, typically installing in about 2 hours with no special modifications required.

Features

• Precision tapered roller bearings engineered with high-performance grease for smooth, maintenance-free operation
• Premium hardware with Grade 10.9 cold-formed, zinc-plated studs for exceptional tensile strength and corrosion resistance
• Durable ABS sensor designed to maintain accurate signal transmission in heat, mud, and moisture
• 8 x M14-1.50 fine thread lug stud configuration
• Axiom No-Nonsense Lifetime Warranty

Specifications

• Hub nut torque procedure required with specified multi-step torque and back-off sequence
• Spindle bolt torque: 133 lb-ft
• Caliper bolt torque: 166 lb-ft

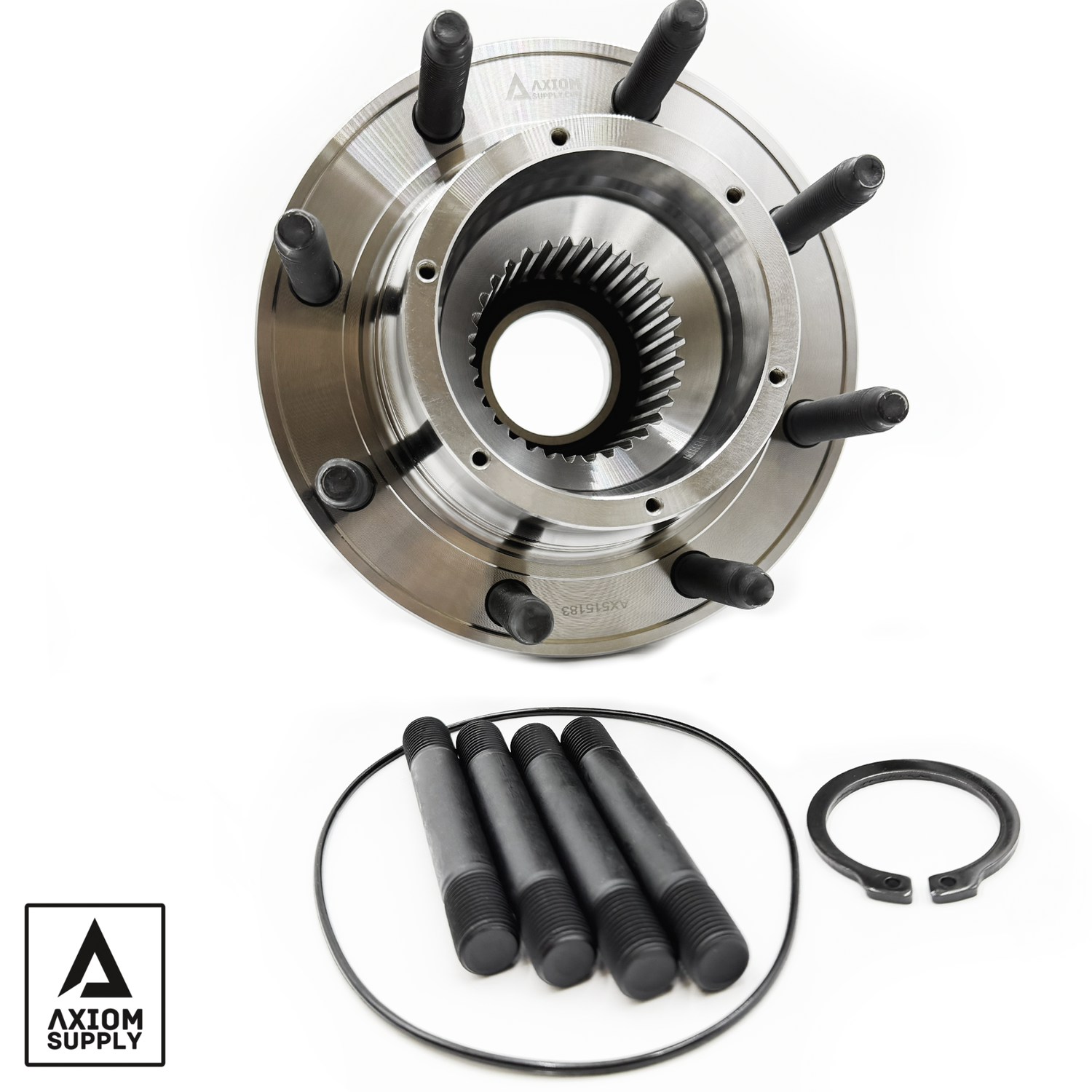

Includes

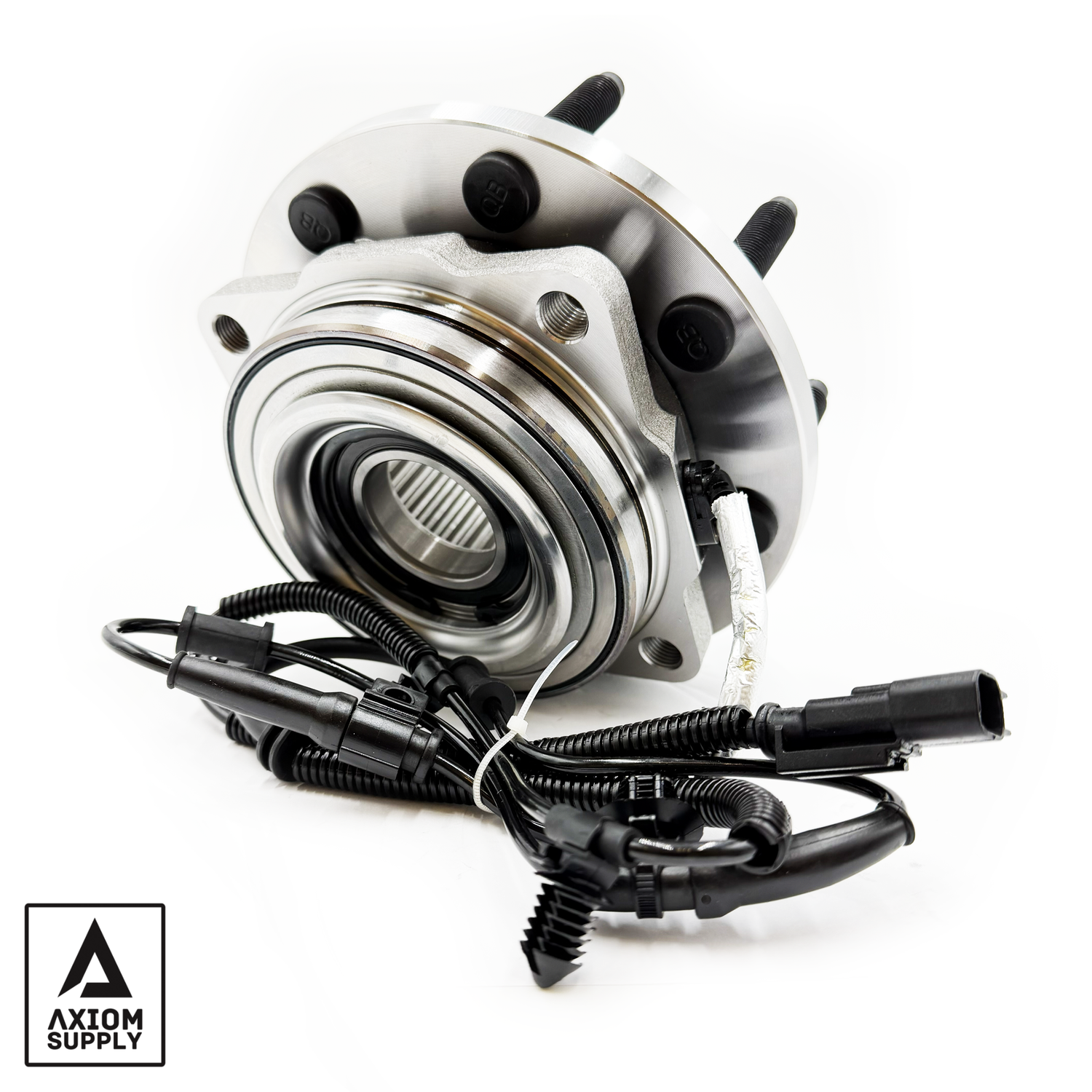

• (1) Wheel bearing and hub assembly with integrated ABS wire
• (4) Mounting bolts
• (1) O-ring
• (1) Retainer ring

Compatibility Notes

• Fits Ford F-250 and F-350 Super Duty 4WD models from 2011-2016
• Single rear wheel (SRW) models only
