2011-2016 Superduty 2.5 Coil Spring Front Lift Kit Falcon 1.1 Monotube Front Rear Shocks Front Track Bar Bracket (46-27290)

The ReadyLIFT 2.5-inch Coil Spring Front Lift Kit for 2011-2016 Ford Super Duty Diesel trucks is a comprehensive leveling solution that eliminates the factory rake. Featuring diesel-specific linear-rate springs and a full set of Falcon 1.1 monotube shocks, this kit delivers a "better-than-factory" ride with increased suspension travel and roll control. The system includes critical geometry correction components, such as a track bar relocation bracket and sound-damping spacers, ensuring your truck remains quiet, properly aligned, and ready for larger 35-inch off-road tires.

Features

• Provides 2.5 inches of front lift to level the truck and increase ground clearance.
• Includes two (2) front linear-rate coil springs specifically tuned for the 6.7L Power Stroke diesel.
• Comes with four (4) Falcon 1.1 Monotube Shocks for superior damping and performance.
• Equipped with a heavy-duty track bar relocation bracket to keep the front axle centered.
• Includes sound-damping coil spring spacers to ensure quiet, factory-like operation.
• Features bump stop extensions to prevent suspension over-travel during heavy use.
• Maintains factory-spec steering geometry and ride comfort.

Notes

• Vehicle alignment and headlamp aim should be checked and adjusted after installation.
• Designed for a straightforward bolt-on installation with no permanent vehicle modifications.
• Professional installation by a certified mechanic is recommended for safety.

Compatibility Notes

• Fits 2011–2016 Ford F250 and F350 Super Duty 4WD trucks with the 6.7L Diesel engine.
• Specifically designed for Single Rear Wheel (SRW) models.
• Not compatible with 6.2L gasoline engines or 2WD models.

Tire Fitment

• Recommended Maximum Tire Size: 35x12.50.
• Recommended Wheel: 9-inch wide wheel with +12 to +18 offset for a rub-free fitment.
• Stock wheels can be reused with tires up to 12.50 inches wide (minor trimming may be needed).

Shock Specs

• Shock Type: Falcon 1.1 Monotube Performance Dampers.
• Construction: 2.125-inch 6061-T6 aluminum alloy shock bodies for high impact resistance and heat dissipation.
• Technology: Features a 3/4-inch induction hardened chrome plated shaft and Volume Optimized Damping (VOD) for controlled performance.
• Fluid: Red Line high VI shock oil ensures consistent damping from -50°F to 450°F.

Specs

• Front Lift Height: 2.5 inches.
• Spring Type: Diesel-specific linear-rate coil springs.

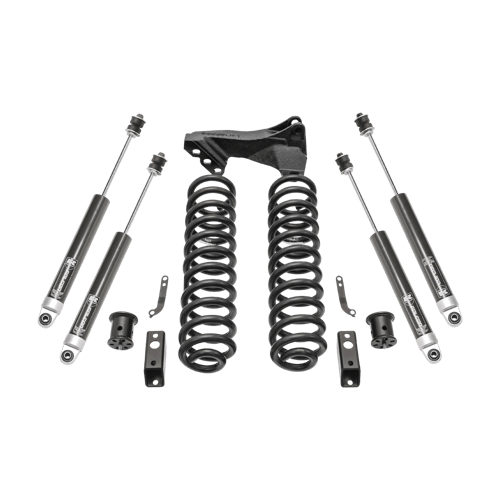

• Kit Contents: Two (2) Front Coil Springs, Four (4) Falcon 1.1 Shocks, Track Bar Relocation Bracket, and Bump Stop Extensions.
