2011-2016 Superduty 2.5 Coil Spring Front Lift Kit Falcon 2.1 Monotube Front Rear Shocks Front Track Bar Bracket (46-27291)

Description

The ReadyLIFT 2.5" Coil Spring Front Lift Kit for 2011-2016 Ford F-250 and F-350 Super Duty diesel trucks levels out the factory nose down rake and refreshes the suspension at all four corners. Vehicle specific front coil springs provide the lift, four Falcon 2.1 monotube shocks handle damping front and rear, and a front track bar relocation bracket keeps the axle centered and the suspension geometry correct, with room for 35" tires.

This kit supersedes 46-27290, the Falcon 1.1 version. The springs and brackets carry over, and the shocks step up to Falcon 2.1 monotubes with a larger 2.3" body for more oil capacity and more consistent damping.

Features

• Up to 2.5 inches of front lift to level the truck and increase tire clearance.
• Two (2) vehicle specific front coil springs.
• Four (4) Falcon 2.1 Monotube Shocks, front and rear, for improved ride control and stability.
• Front track bar relocation bracket helps keep the front axle centered.
• Bump stop extensions, brake line brackets and sway bar drops keep the factory components working at the new ride height.
• Caster bushing kit included.
• Made in the USA.

Notes

• Actual front lift is about 1.5" to 2.5", depending on the factory spring rate.
• Trucks with the snow plow prep or ambulance package front end will not achieve the full 2.5" of lift.
• Some 2011-2016 F-250 trucks may need a rear block kit to sit level.
• An alignment is required after installation. Headlamp aim and any ADAS cameras or sensors should also be checked and adjusted.
• Professional installation by a certified mechanic is recommended.

Compatibility Notes

• Fits 2011-2016 Ford F-250 and F-350 Super Duty 4WD trucks with the 6.7L Power Stroke diesel.
• Diesel applications only. Not for 6.2L gas engines or 2WD models.

Tire Fitment

• Recommended: 35x12.50 tires on a 9" or 10" wide wheel with +25mm to 0mm offset.
• Up to 37" tires may fit with trimming, depending on wheel and tire selection.
• Factory wheels can be used but are not recommended with tires over 11.5" wide.
• Fitment recommendations are based on Wheel Pros wheels and Nitto tires. Always test fit before installing.

Shock Specs

• Shock Type: Falcon 2.1 Monotube.
• Body: Large 2.3-inch shock body for increased oil capacity, improved heat dissipation and consistent damping.
• Piston: 6061-T6 aluminum-alloy billet piston.
• Shaft: 3/4-inch induction hardened, chrome plated shaft resists rock damage, corrosion and shaft buckling.
• Bump Stops: Microcellular foam progressive bump stops.

Specs

• Front Lift Height: Up to 2.5 inches.
• Estimated Installation Time: 6 hours, give or take an hour, excluding alignment and wheel and tire assembly.

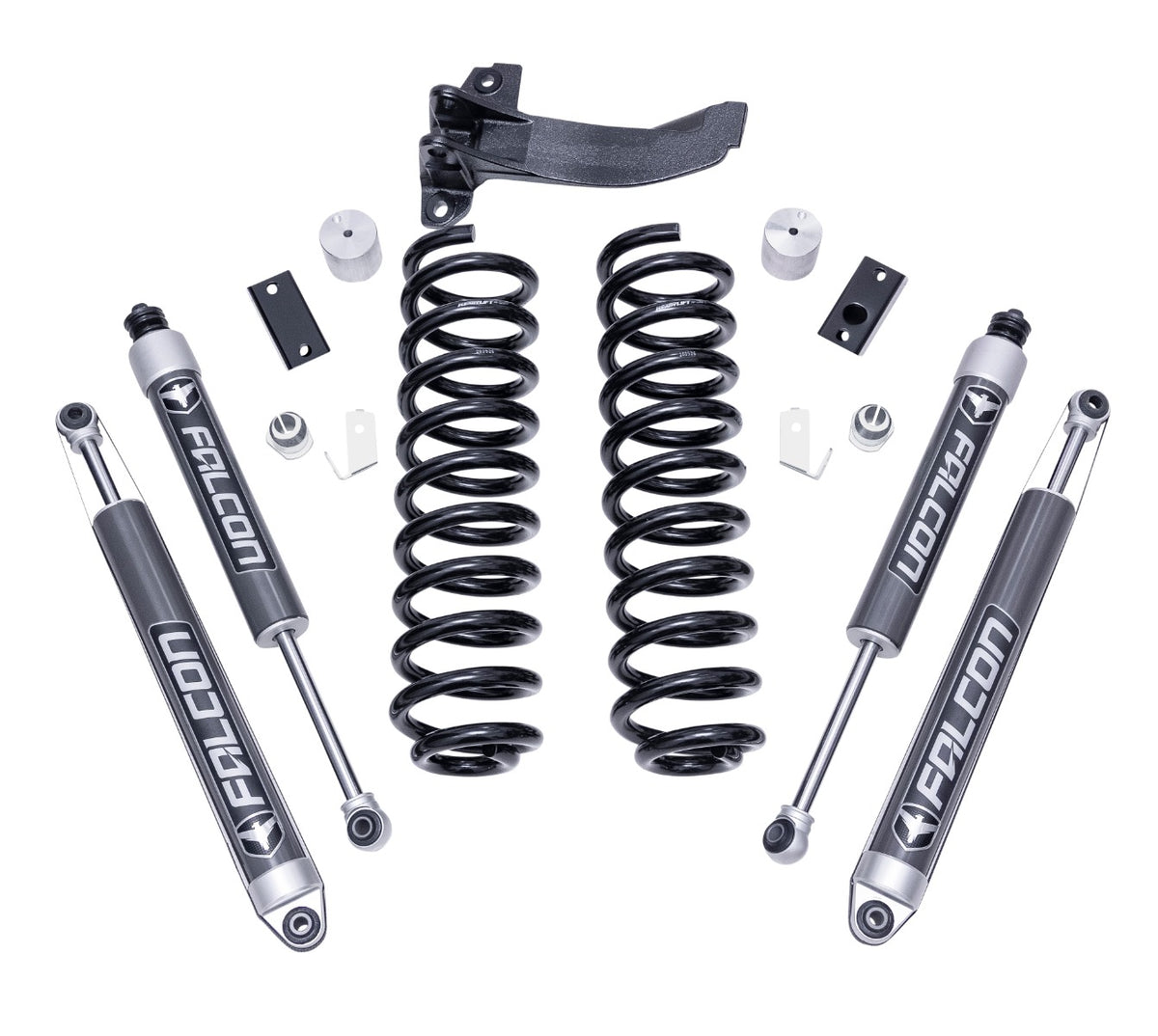

• Kit Contents: Two (2) Front Coil Springs, Four (4) Falcon 2.1 Shocks, Track Bar Relocation Bracket, Sway Bar Drops, Driver and Passenger Brake Line Brackets, Bump Stop Extensions, Caster Bushing Kit and Hardware.
