2011-2016 Superduty 2.5" SST Lift Kit 4 Rear Tapered Blocks 1 Piece Drive Shaft (69-2524)

The ReadyLIFT 2.5-inch Front / 2.0-inch Rear SST Lift Kit for 2011-2016 Ford F250/F350 4WD trucks is a comprehensive suspension solution designed for owners who need a lifted stance for towing or hauling. This kit features 2.5-inch powder-coated steel front coil spacers and 4.0-inch OEM-style cast iron rear blocks, providing a slight rake that maintains near-factory levels while improving off-road clearance. By utilizing ReadyLIFT's Smart Suspension Technology, this system allows for the fitment of up to 35-inch tires while preserving the vehicle's smooth OEM ride quality and drivability.

Features

• Provides 2.5 inches of front lift and 2.0 inches of rear lift for a balanced, tow-ready stance.
• Includes durable 2.5-inch powder-coated steel coil spring spacers with polyurethane sound isolators to maintain a quiet ride.
• Features 4.0-inch OEM-style cast iron rear lift blocks with integrated bump stop tangs and new longer U-bolts.
• Maintains factory-standard ride quality and handling characteristics.
• Allows for the installation of wheel and tire combinations up to 35x12.50.
• Corrects suspension geometry with a front track bar relocation bracket for improved steering quality.
• Includes front sway bar mount spacers to account for the increased height without affecting stability.
• Comes complete with front shock extensions, bump stop extensions, and extended front brake line brackets.
• Features a carrier bearing spacer to help adjust and maintain proper driveshaft angles.
• No cutting or drilling required for a user-friendly, direct bolt-on installation.

Notes

• A professional wheel alignment is required after installation to ensure optimal steering and tire wear.
• Headlamp aim must be checked and adjusted for safety following the change in ride height.
• Advanced Driver Assistance Systems (ADAS) should be recalibrated to maintain proper monitoring and function.
• Installation by a certified mechanic is recommended to ensure all critical geometry corrections are performed correctly.
• The provided lift blocks are not compatible with aftermarket air spring kits that attach to the bump stop tangs.

Compatibility Notes

• Fits 2011–2016 Ford Super Duty F250 and F350 4WD models.
• Exclusively for use on trucks equipped with a one-piece drive shaft.

Specs

• Front Lift Height: 2.5 inches.
• Rear Lift Height: 2.0 inches.
• Material: Powder-Coated Steel (Front) and Cast Iron (Rear).
• Max Tire Size: 35 inches.

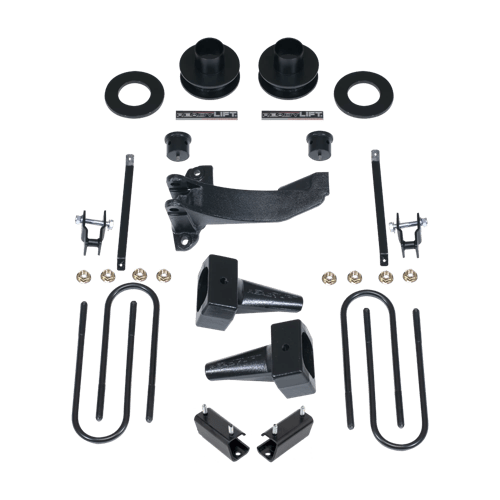

• Kit Contents: Two coil spacers, two poly sound isolators, two shock extensions, two sway bar mount spacers, one track bar relocation bracket, two rear blocks with U-bolts, two bump stop extensions, and extended brake line brackets.
