2011-2019 GM HD 6.5" FOX 2.5 Performance Conversion Kit (BDS727FDSC)

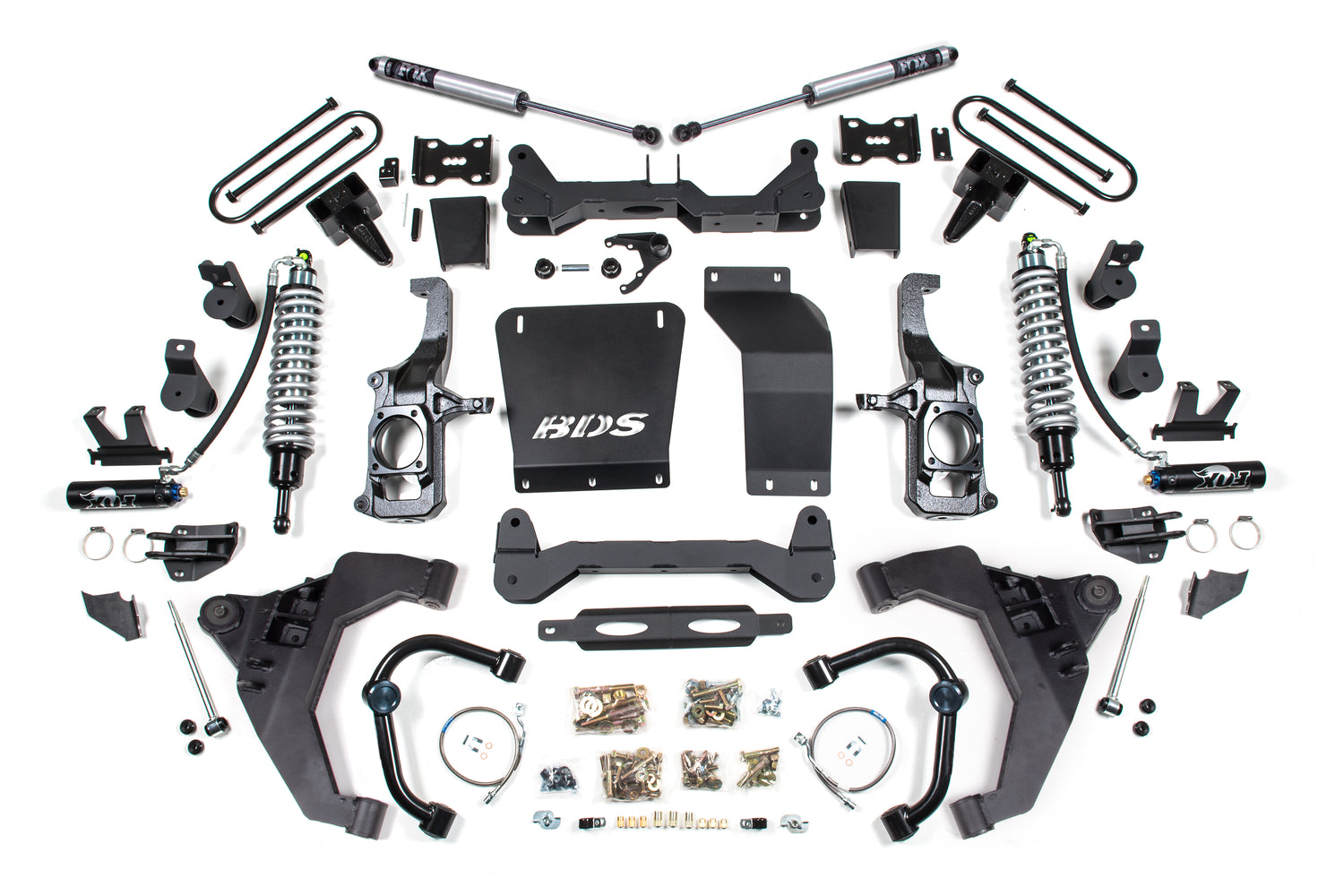

BDS is a game changer for your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD with this 6.5" suspension lift kit and FOX 2.5 Coil-Over conversion, with clearance for up to 37" tires. The high-clearance design improves ground clearance, strength, and offroad protection. Up front it uses FOX 2.5 coil-over shocks, heavy duty tubular upper control arms (1.5" OD x .120-wall, TIG welded, indexed ball joint cup for added down travel and camber adjustment), fully boxed and gusseted high strength lower control arms with greaseable ball joints, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates, with CNC-machined ductile iron steering knuckles, sway bar links, bump stop extensions, stainless brake lines, and CV spacers. The rear uses replacement lift blocks, a u-bolt flip kit for max clearance, and FOX 2.0 Performance Series shocks.

Features

• FOX 2.5 coil-overs offer improved damper performance over stock
• Dual Speed Compression Adjust adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• Performance UCAs increase strength and allow for more suspension travel
• High clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6.5 Inch
• Rear Lift Height: 5 Inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.625/5.5

Notes

• A torsion bar tool is required to unload the torsion bars.
• Requires frame bracket and differential modification.
• Minor welding is required for coil-over mount installation.
• Stock 17 inch & 18 inch wheels cannot be reinstalled.
• Stock 20 inch x 8.5 inch wheels with 6 inch backspacing or less will fit with a max tire size of 35x12.50.
• Models with two piece rear driveshaft may require carrier bearing drop kit (121612).
• Coilovers are preset for DIESEL engine models. Use on GAS engine models is not recommended due to providing too much lift; available preload adjustment is typically not enough to achieve desired ride height.
• Will NOT fit dually applications.
• 3 inch block will result in a slightly tail-low stance.
• 5 inch block will result in a level to slightly tail high stance and integrates a u-bolt flip kit with new spring plate.

Includes

• BDS021251, 2011-2019 Chevrolet Silverado 2500HD LCA Kit - Drv (UPC 658848614523)
• BDS021252, 2011-2019 Chevrolet Silverado 2500HD LCA Kit - Pass (UPC 658848614530)
• BDS021509, 11 GM HD Rear 5in System (UPC 658848614745)
• BDS021650, 11 GM HD 4.5-6.5in System (1of4) (UPC 658848614950)
• BDS021651, 11 GM HD 4.5-6.5in System (2of4) (UPC 658848614967)
• BDS021652, 11 GM HD 4.5-6.5in System (3of4) (UPC 658848614974)
• BDS021655, 11-up Chevy HD 6.5 Coil Over Box Kit (4of4) (UPC 658848615001)
• BDS121250, 2011-2019 Chevrolet Silverado 2500HD UCA Kit (UPC 658848618910)
• BDS121650, 2001-2019 GM HD Front Skid Plate Box Kit (UPC 658848619207)
• BDS121653, 11-up Chevy HD 6.5in Coil Over Mounting Kit (UPC 658848619238)
• FOX88406155, Kit: BDS 11-19 GM 2500/3500 HD Front Coilover, 2.5 Series, R/R 6.5 Inch Lift, Dual Speed Compression Adjust (UPC 814897013629)
• FOX98224769, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
