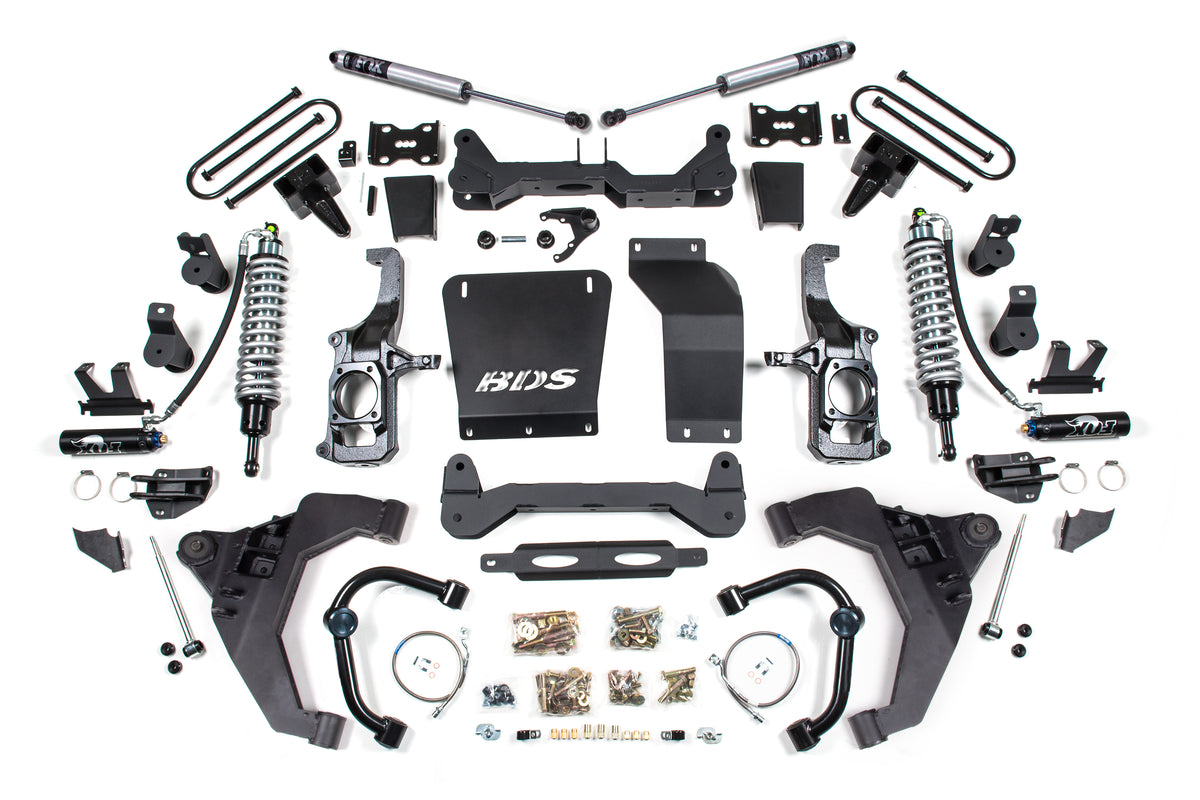

2011-2019 GM HD 6.5" FOX 2.5 Performance Conversion Kit (BDS730FDSC)

This BDS 6.5" lift kit with FOX 2.5 Coil-Over conversion is a game changer for your 2011-2019 Chevy Silverado / GMC Sierra 2500 HD, with clearance for up to 37" tires. In addition to replacing the factory torsion bars, the control arms are upgraded: tubular uppers from 1.5" OD x .120-wall fully TIG-welded tubing with an indexed ball joint cup for added down travel and camber adjustment, and fully boxed, internally gusseted high-strength steel lowers. Up front it also runs high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates and CNC-machined ductile iron steering knuckles. The rear uses replacement lift blocks, a u-bolt flip kit for max clearance and FOX 2.0 Performance shocks. The bolt-on FOX 2.5 remote-reservoir coil-overs are race-proven and tuned out of the box, available with optional Dual Speed Compression adjustment.

Features

• FOX 2.5 remote-reservoir coil-overs for improved damper performance over stock
• Optional Dual Speed Compression adjuster for high-speed and low-speed compression tuning
• Performance tubular UCAs increase strength and allow for more suspension travel
• Fully boxed and internally gusseted high-strength lower control arms
• High clearance design with no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6.5 Inch
• Rear Lift Height: 5 Inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.625/5.5

Notes

• A torsion bar tool is required to unload the torsion bars.
• Requires frame bracket and differential modification.
• Minor welding is required for coil-over mount installation.
• Stock 17 inch & 18 inch wheels cannot be reinstalled.
• Stock 20 inch x 8.5 inch wheels with 6 inch backspacing or less will fit with a max tire size of 35x12.50.
• Models with two-piece rear driveshaft may require carrier bearing drop kit (121612).
• Coilovers are preset for DIESEL engine models. Use on GAS engine models is not recommended due to providing too much lift; available preload adjustment is typically not enough to achieve desired ride height.
• Will NOT fit dually applications.
• Determine if your truck was built with or without top-mounted overload springs on the rear leaf springs.
• Rear block option: 3 inch block results in a slightly tail-low stance; 5 inch block results in a level to slightly tail-high stance and integrates a u-bolt flip kit with new spring plate.

Includes

• BDS011317, 11 HD 3in Rear w/Top Overload (UPC 658848611744)
• BDS021251, 2011-2019 Chevrolet Silverado 2500HD LCA Kit - Drv (UPC 658848614523)
• BDS021252, 2011-2019 Chevrolet Silverado 2500HD LCA Kit - Pass (UPC 658848614530)
• BDS021650, 11 GM HD 4.5-6.5in System (1of4) (UPC 658848614950)
• BDS021651, 11 GM HD 4.5-6.5in System (2of4) (UPC 658848614967)
• BDS021652, 11 GM HD 4.5-6.5in System (3of4) (UPC 658848614974)
• BDS021655, 11-up Chevy HD 6.5 Coil Over Box Kit (4of4) (UPC 658848615001)
• BDS121250, 2011-2019 Chevrolet Silverado 2500HD UCA Kit (UPC 658848618910)
• BDS121650, 2001-2019 GM HD Front Skid Plate Box Kit (UPC 658848619207)
• BDS121653, 11-up Chevy HD 6.5in Coil Over Mounting Kit (UPC 658848619238)
• FOX88406155, Kit: BDS 11-19 GM 2500/3500 HD Front Coilover, 2.5 Series, R/R 6.5 inch Lift, Dual Speed Compression Adjust (UPC 814897013629)
• FOX98224769, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
