2011-2019 GM HD 6.5" Lift Kit with NX2 Nitro Shocks (BDS199H)

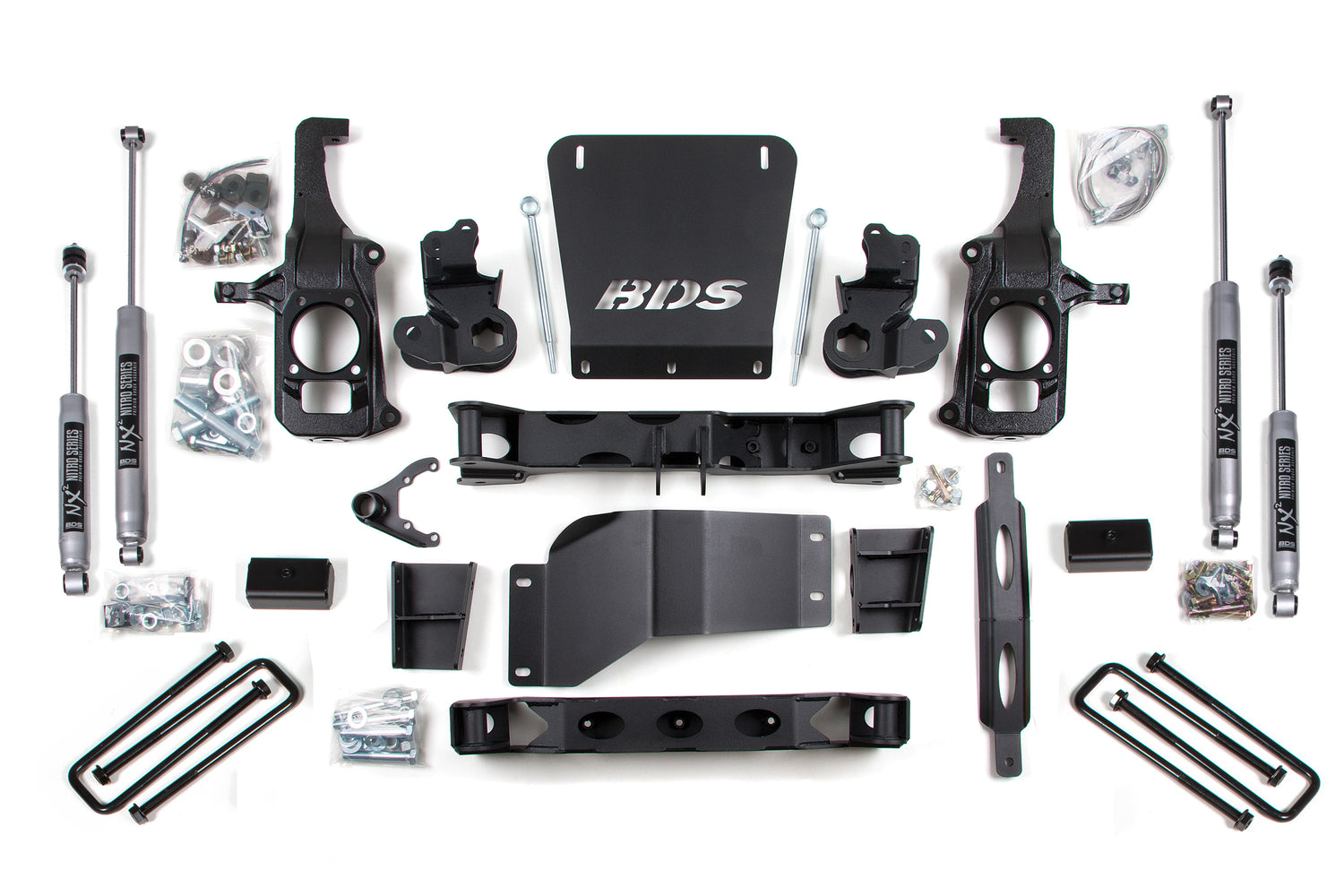

Improve the stance, performance, and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with this BDS 6.5" lift kit, with clearance for up to 37" tires. BDS uses a No Torsion Bar Drop System that mounts the torsion bars directly to the top of the lower a-arm to maximize ground clearance. Up front it uses torsion bar relocation brackets, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, CNC-machined ductile iron steering knuckles, sway bar links, bump stop extensions, stainless steel brake lines, and CV spacers. The rear uses replacement lift blocks, a u-bolt flip kit, and NX2 Nitro or FOX 2.0 Performance shocks.

Features

• High clearance design with no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2 or FOX 2.0 gas shocks for improved performance
• Rear block options: 3" slightly tail-low; 4" level front/rear (most common); 5" level to slightly tail-high with integrated u-bolt flip kit and new spring plate
• NX2 shocks: nitrogen-charged, twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6.5 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.625/6

Notes

• Torsion Bar Tool required to load/unload the torsion bars.
• 3" rear block kit recommended for dually applications; 5" rear block kit will not fit dually applications.
• Stock 17" and 18" wheels cannot be reinstalled.
• Stock 20" x 8.5" wheels with 6.18" backspacing MAY fit a max tire of 37x12.50 on certain sidewall profiles due to clearance at the steering knuckle and sway bar; a minimum 1/4" wheel spacer may be required. A wider tire will cause clearance issues with the steering knuckle.
• Factory dually wheels cannot be reinstalled.
• Models with two-piece rear driveshaft may require #121612.
• If minor front driveline vibration occurs at highway speeds in 4wd and the vehicle is used this way regularly, BDS recommends replacing the front driveshaft with a dual Cardan style driveshaft.
• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

Includes

• BDS011317, 11 HD 3in Rear w/Top Overload (UPC 658848611744)
• BDS021650, 11 GM HD 4.5-6.5in System (1of4) (UPC 658848614950)
• BDS021651, 11 GM HD 4.5-6.5in System (2of4) (UPC 658848614967)
• BDS021652, 11 GM HD 4.5-6.5in System (3of4) (UPC 658848614974)
• BDS021653, 11 GM HD 4.5-6.5in System (4of4) (UPC 658848614981)
• BDS021654, 2011 GM 2500HD 6.5 inch Torsion Bar System (UPC 658848614998)
• BDS121650, 2001-2019 GM HD Front Skid Plate Box Kit (UPC 658848619207)
• BDS85613, Shock- 22.20 x 13.35 x 2 - S50/EB1 (UPC 711745609372)
• BDS85769, Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1 (UPC 711745609761)
