2011-2020 Superduty 6.5" Lift Kit 1 Piece Drive Shaft w/o Shocks (49-2765)

The ReadyLIFT 6.5 inch Big Lift Kit for 2017-2018 Ford Super Duty Diesel trucks is a comprehensive suspension solution that provides the clearance needed for massive 38 inch tires. Featuring heavy duty radius arm drop brackets and a forged dropped pitman arm, this system corrects vital steering and suspension geometry for a factory like feel. The kit includes specialized components for one piece drive shaft models, including a transfer case clocking ring and a heavy duty transmission crossmember, ensuring your truck remains smooth and stable at highway speeds.

Features

• Radius arm drop brackets maintain factory caster geometry for precise steering and handling.
• Includes a transfer case clocking ring and heavy duty transmission crossmember to optimize one piece drive shaft angles.
• Forged dropped pitman arm and track bar relocation bracket ensure accurate steering and centered axle alignment.
• Engineered front coil springs provide a full 6.5 inches of lift specifically for the Power Stroke diesel engine.
• Fabricated steel rear lift blocks provide a leveled stance while preserving the trucks original towing capacity.
• Heavy duty 3/16 inch plate steel front skid plate offers essential protection for the differential and underbody.
• Sway bar drop brackets and bump stop extensions maintain proper suspension travel and component clearance.
• Extended brake line brackets allow for full suspension articulation without tension on factory lines.

Notes

• This kit is engineered specifically for trucks equipped with a one piece drive shaft only.
• Vehicle alignment and headlamp aim must be adjusted following the installation for safety.
• Professional installation is highly recommended due to the complexity of the transfer case clocking and suspension overhaul.
• Estimated installation time is approximately 6 to 8 hours excluding alignment and tire assembly.

Compatibility Notes

• Fits 2017 to 2018 Ford Super Duty F250 and F350 4WD Diesel trucks.
• Specifically designed for Single Rear Wheel (SRW) models with a one piece drive shaft.
• Not compatible with gasoline powered trucks or 2WD models.
• Does not fit trucks with a two piece drive shaft.

Tire Fitment

• Maximum Tire Diameter: 38 inches.
• Recommended Setup: 38x13.50 tires on a 9 inch wide wheel with a 0 offset.
• Trimming of the front valance and inner fender liner may be required for full clearance with 38 inch tires.

Shock Specs

• Shock Type: ReadyLIFT SST3000 Series Performance Dampers (or compatible Bilstein/Falcon options depending on sub-configuration).
• Design: Twin tube gas charged construction for consistent performance and durability.
• Valving: Performance tuned specifically for the weight and dynamics of the Ford Super Duty diesel platform.
• Finish: Durable painted finish with included dust boots to protect the shafts from road debris.

Specs

• Front Lift Height: 6.5 inches.
• Rear Lift Height: 5 inches.

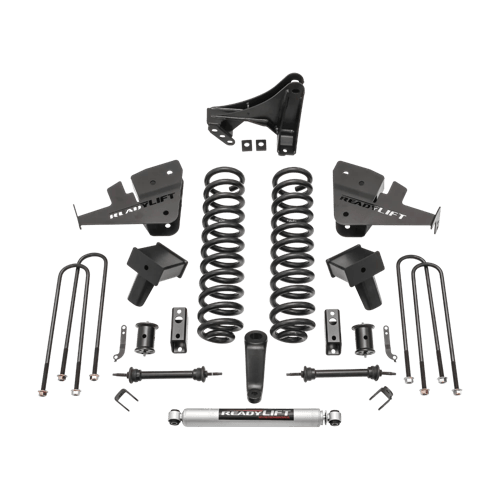

• Kit Contents: Front Coil Springs, Radius Arm Drop Brackets, Dropped Pitman Arm, Track Bar Relocation Bracket, Clocking Ring, Transmission Crossmember, Sway Bar Drops, Bump Stop Extensions, Fabricated Rear Blocks, and SST3000 Shocks.
