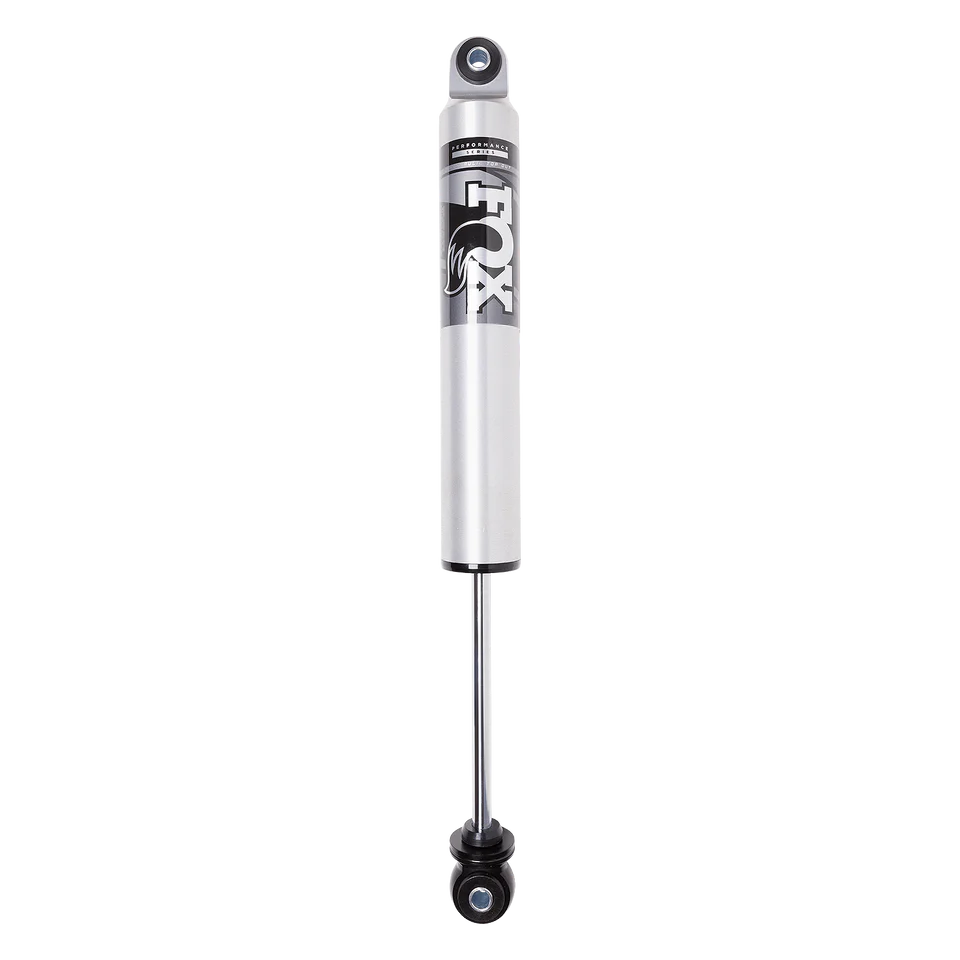

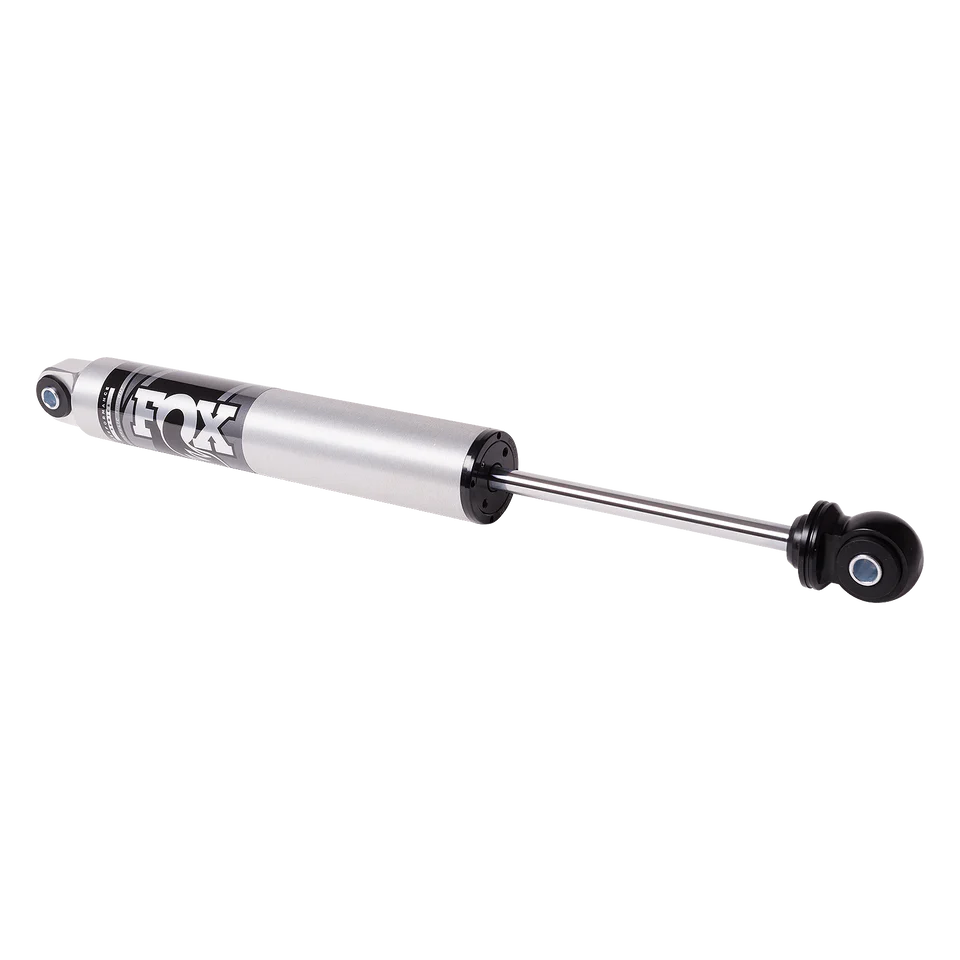

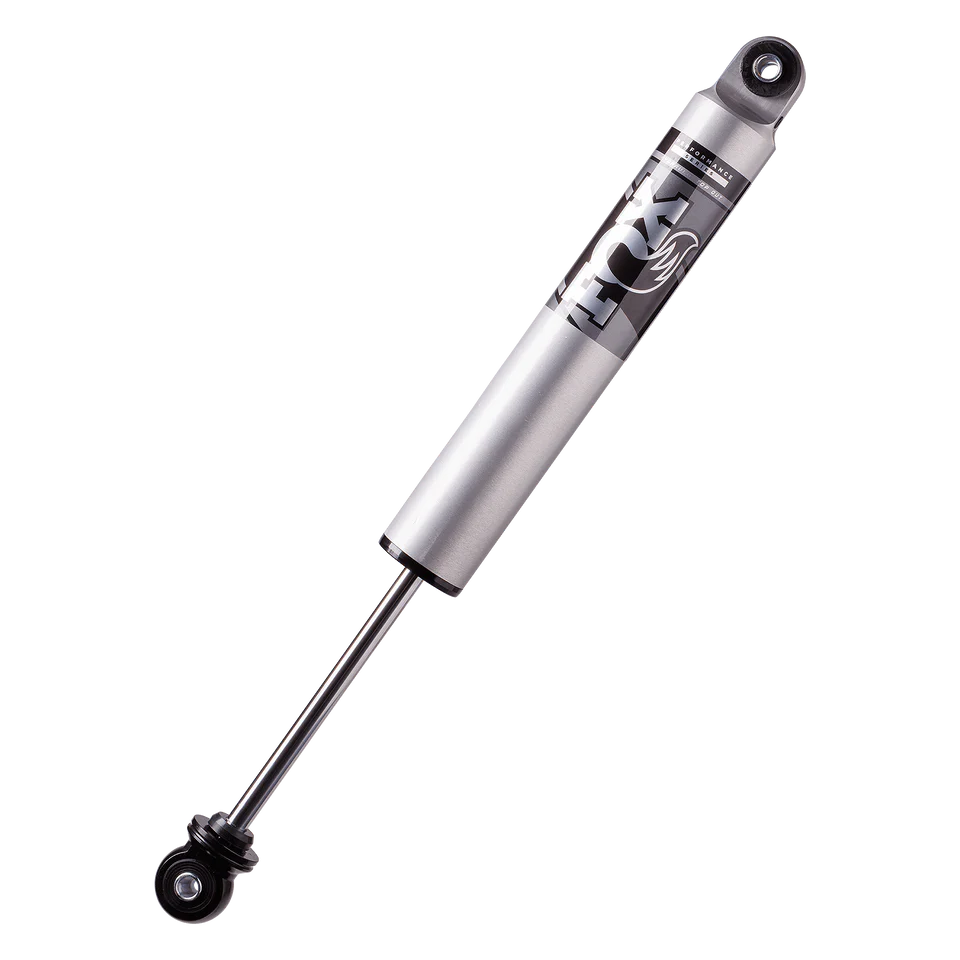

2011-2025 GM HD Rear Performance Series 2.5 Shock Absorber 1.5-2.5" Lift (FOX98724011)

For trucks and SUVs with coilovers at all four corners, these bolt-on, Performance Series 2.5 IFP shocks provide a comfortable on-road ride and predictable off-road handling. Their 2.5" diameter aluminum bodies dissipate heat faster than steel, and the Internal Floating Piston (IFP) separates the shock oil from the high-pressure nitrogen-charged gas chamber. The IFP eliminates oil aeration, allowing maximum performance from the factory-tuned, precision valving.

Features

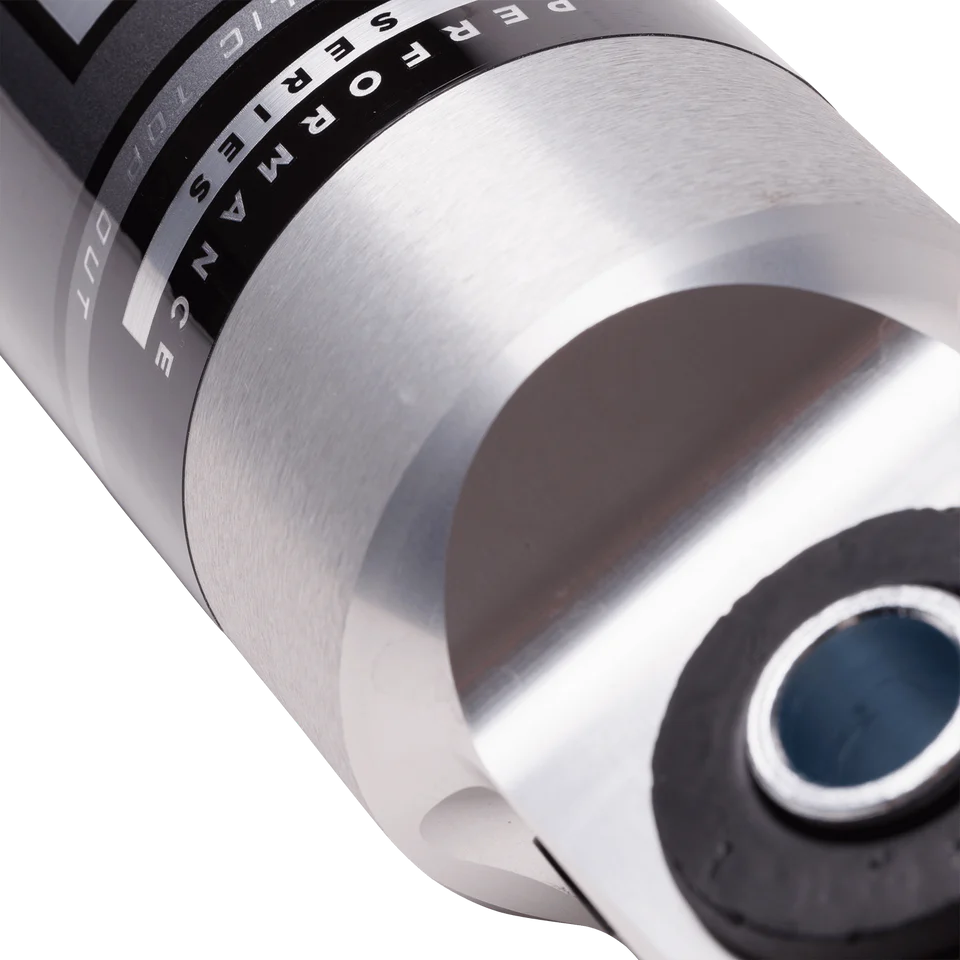

• Body: 2.5" impact extruded, CNC machined 6061-T6 hard-anodized aluminum.
• Reservoir: Internal Floating Piston (IFP) monotube reservoir design.
• Shaft: 7/8" hard chrome plated heat-treated alloy steel.
• Piston: Race-developed high-flow piston design with application-specific valving.
• Mounting: Direct replacement for stock and aftermarket lift kits.

Specs

• Adjustable Damping: No
• Compressed Length: 17.54
• Extended Length: 26.72
• Finish: Clear-anodized
• Gas Charged: Yes
• Lift Height: 1.5-2.5"
• Lower Mount Code: EB1
• Lower Mount Type: Eyelet
• Position: Rear
• Shaft Diameter: 5/8"
• Travel Length: 9.18
• Type: Smooth Body IFP
• Upper Mount Code: EB1
• Upper Mount Type: Eyelet
