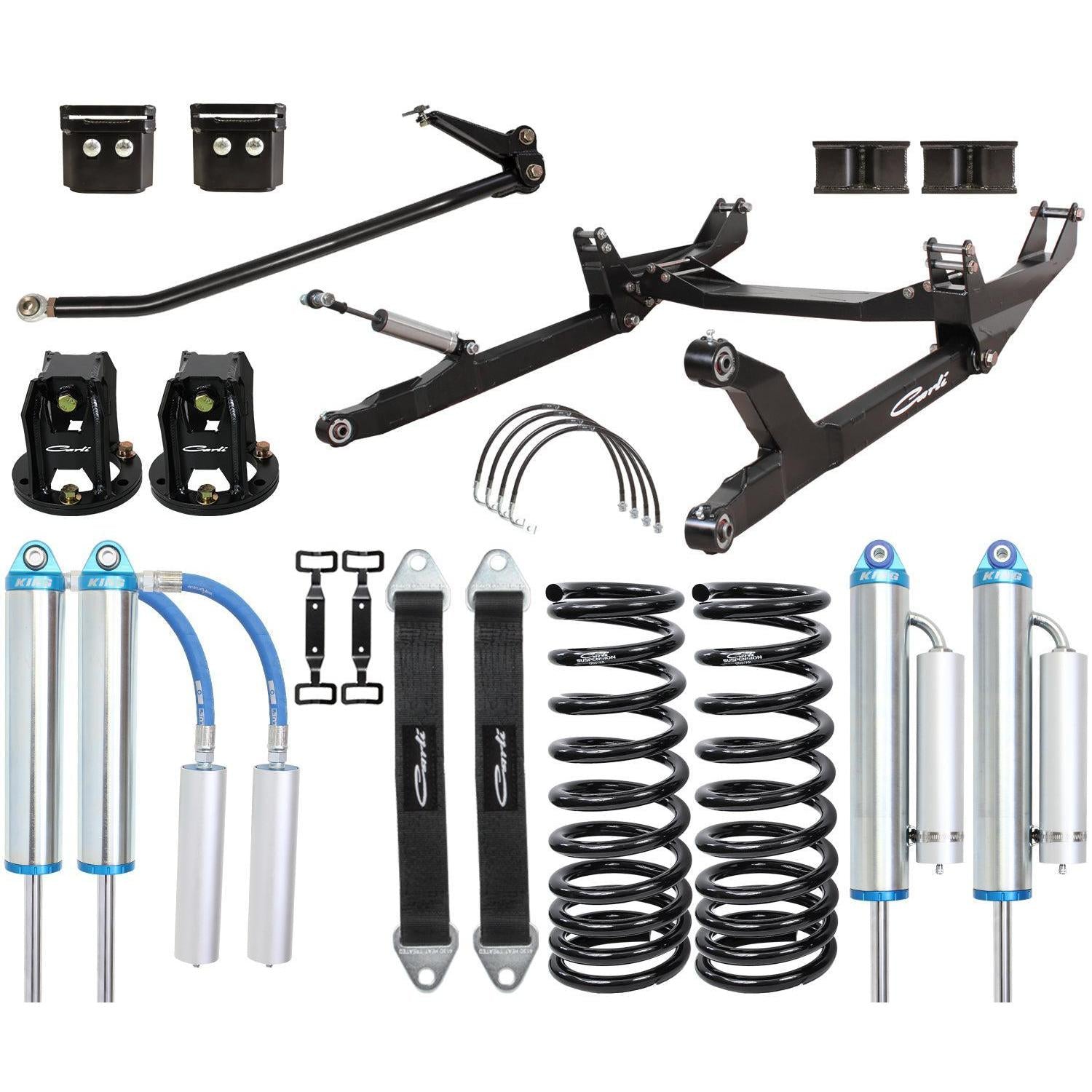

2012-2013 Ram HD 4x4 Diesel SRW 6.0" Lift Dominator 3.0 System (CS-DD30-6-12)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$15,063.03 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Custom Tuned King 3.0 Remote Reservoir Shocks. This big boy lift kit is loaded with features to maximize capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Sway Bar Options

Required

Rear Leaf Spring

Required

Leaf spring Shackle

Optional

Much of the jarring ride of the leaf-spring rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Long Travel Airbags

Optional

Airbag Spacer

Optional

Pitman Arm

Optional

Carrier Bearing Drop

Optional

Steering Stabilizer

Optional

Axle Truss

Optional

Driver Side Rear Shock Mounts

Optional

Rear Shock Mount Passenger

Optional

Hydro Bump Kit - Front

Optional
Part Specs
Warranty
Description

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Custom Tuned King 3.0 Remote Reservoir Shocks. This big boy lift kit is loaded with features to maximize capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Part Number: CS-DD30-6-12

Features
  • Carli-tuned King 3.0 shocks paired with a fabricated radius arm system that provides a fantastic on-road ride and superior off-road performance
  • Multi-rate front springs, front and rear shock package, fabricated radius arm system, fabricated shock towers, brake lines, adjustable track bar, front and rear bump drops, and track bar drop bracket
  • Allows for 12" of front suspension travel and 12.5" rear suspension travel
Notes
  • A "Base Kit" SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system
  • Rear crossmember gusset requires welding
  • All Carli 6" systems require the truck's front driveshaft to be extended by 2 inches

Warranty
Limited 1 (One) Year Warranty
