2012-2018 Wrangler 4" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1714FPE)

BDS 4" lift kit for the 2012-2018 Jeep Wrangler JK 2-Door, clearing up to 37" tires. The front runs 4" Pro-Ride coil springs capable of full coil bind with 3" bump stop extensions, fixed-length lower control arms, a forged drop pitman arm and front track bar relocation bracket for steering geometry, brake line brackets, and sway bar links. The rear uses Pro-Ride coil springs, sway bar drop brackets, a frame-mounted track bar relocation bracket, fixed-length lower control arms, and adjustable upper arms to correct axle position and pinion angle. Topped with FOX 2.5 Performance Elite shocks.

Features

• ProRide coil springs improve ride quality and articulation
• Quick-disconnect sway bar links and extended rear link for improved offroad flex
• New control arms properly control front and rear axle positions
• Rear track bar bracket repositions the rear axle under the vehicle
• FOX 2.5 Performance Elite shocks with Dual Speed Compression adjuster
• 2.5" Impact extruded aluminum body with 7/8" hard chrome plated alloy steel shaft
• External reservoir separates shock oil from high-pressure nitrogen
• Fully serviceable for a lifetime of use
• Gain 30% more axle articulation by disconnecting the front sway bar
• Spherical bushings provide 360 degrees of rotation and 11 degrees of misalignment
• FMVSS No.126 compliant
• 1-year manufacturer's warranty

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• Will not fit 2WD models.
• The fixed front and rear lower control arms can be upgraded to the flex or adjustable arms listed in the accessories.
• The front driveshaft is maxed out at full droop, and on certain models the driveshaft boot can contact the transmission pan. Front driveshaft replacement is recommended.
• Exhaust modification may be required.

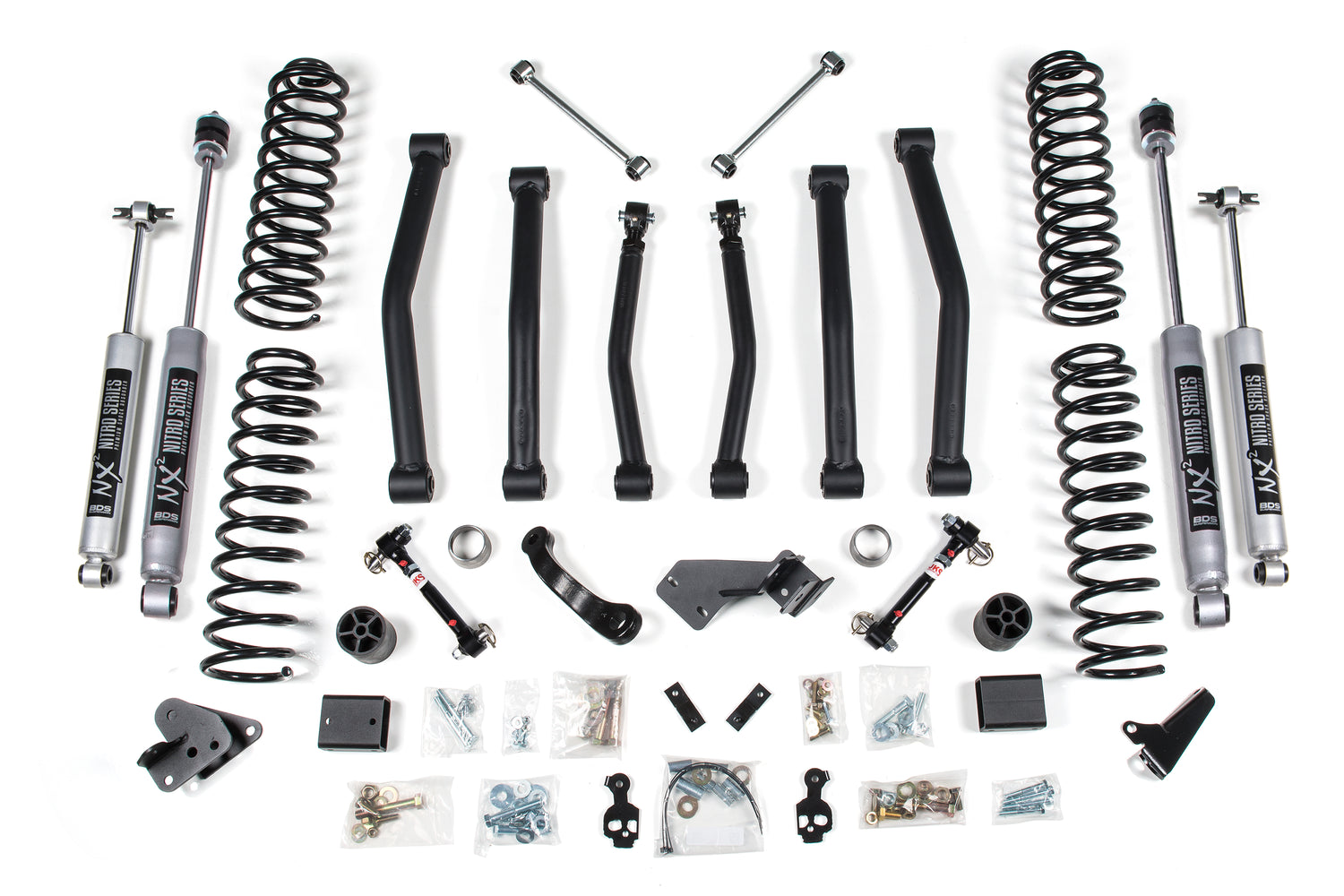

Includes

• BDS014454, 2007-2018 Jeep Wrangler JK 4.5in Box Kit (UPC 658848614172)
• BDS034311, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Front Coil Springs (UPC 658848616770)
• BDS034319, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Rear Coil Springs (UPC 658848616794)
• BDS124314, 2012-18 Jeep Wrangler JK Exhaust Extension Kit (UPC 711745605015)
• BDS124331, 2007-2018 Jeep Wrangler (JK) Front Fixed LCA Kit (UPC 711745605114)
• BDS124339, Jeep Wrangler JK Rear Fixed LCA Kit (UPC 711745605169)
• FOX88326091, Kit: 07-18 Jeep Wrangler JK Front, 2.5 Truck Fox Performance Elite Series, R/R, 2.5-4 inchРЎСљ Lift, Dual Speed Compression Adjust
• FOX88326092, Kit: 07-18 Jeep Wrangler JK Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2.5-4 inchРЎСљ Lift, Dual Speed Compression Adjust
