2012-2018 Wrangler 4" Lift Kit with FOX 2.0 Performance Shocks (BDS1417FS)

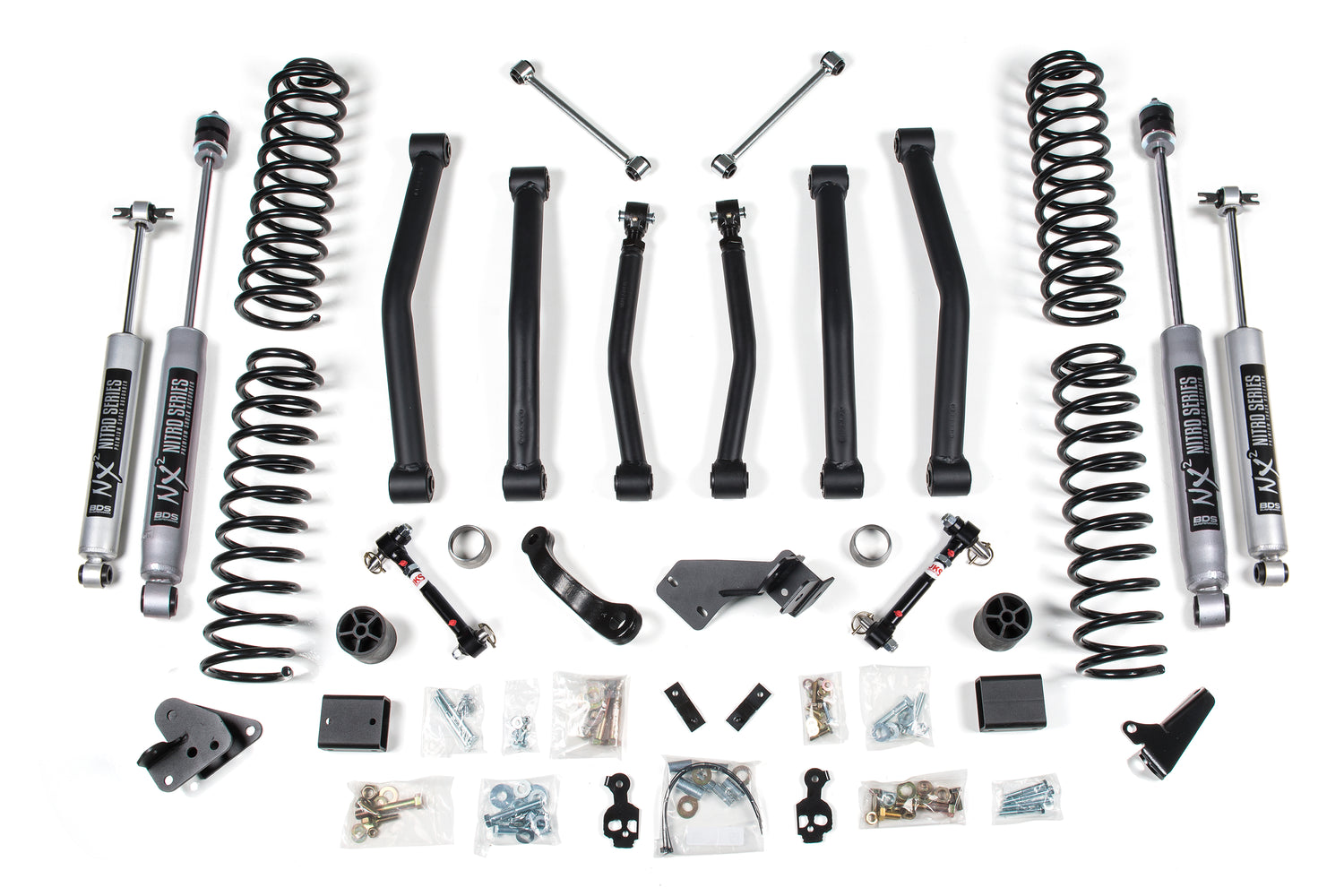

Take your 2012-2018 Jeep Wrangler JK 2 Door to the next level with this BDS 4" lift kit, with clearance for up to 37" tires. Up front are 4" Pro-Ride coil springs, 3" bump stop extensions, brake line brackets, sway bar links, a front track bar relocation bracket and drop pitman arm, and fixed length lower control arms with OE-grade bushings. The rear uses Pro-Ride coil springs, sway bar drop brackets, a frame-mounted track bar relocation bracket, fixed length lower control arms and adjustable upper arms for proper axle position and pinion angle. Finish with your choice of NX2 Nitro or FOX 2.0 IFP performance series shocks.

Features

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quick disconnects and extended rear link for improved offroad flex
• New control arms to properly control the front and rear axle positions
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
• Allows clearance for 37" tires
• 2" impact extruded aluminum body, IFP monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Convenient grease fittings for smooth, silent bushing operation
• Spherical bushings provide 360 degrees of rotation and 11 degrees of misalignment capability

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• Will not fit 2wd models.
• The fixed front and rear lower control arms can be upgraded to the flex or adjustable arms listed in the accessories.
• The front driveshaft is maxed out at full droop and on certain models the driveshaft boot can contact the transmission pan; replacement of the front driveshaft is recommended.
• Exhaust modification may be required.
• This kit is FMVSS No.126 compliant.

Includes

• BDS014454, 2007-2018 Jeep Wrangler JK 4.5in Box Kit (UPC 658848614172)
• BDS034311, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Front Coil Springs (UPC 658848616770)
• BDS034319, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Rear Coil Springs (UPC 658848616794)
• BDS124314, 2012-18 Jeep Wrangler JK Exhaust Extension Kit (UPC 711745605015)
• BDS124331, 2007-2018 Jeep Wrangler (JK) Front Fixed LCA Kit (UPC 711745605114)
• BDS124339, Jeep Wrangler JK Rear Fixed LCA Kit (UPC 711745605169)
• FOX98224921, Fox 2.0 Shock 25.12 x 15.55 x 2- S50/EB1
• FOX98224951, Fox 2.0 Shock 26.35 x 16.75 x 2-BP18/EB1
