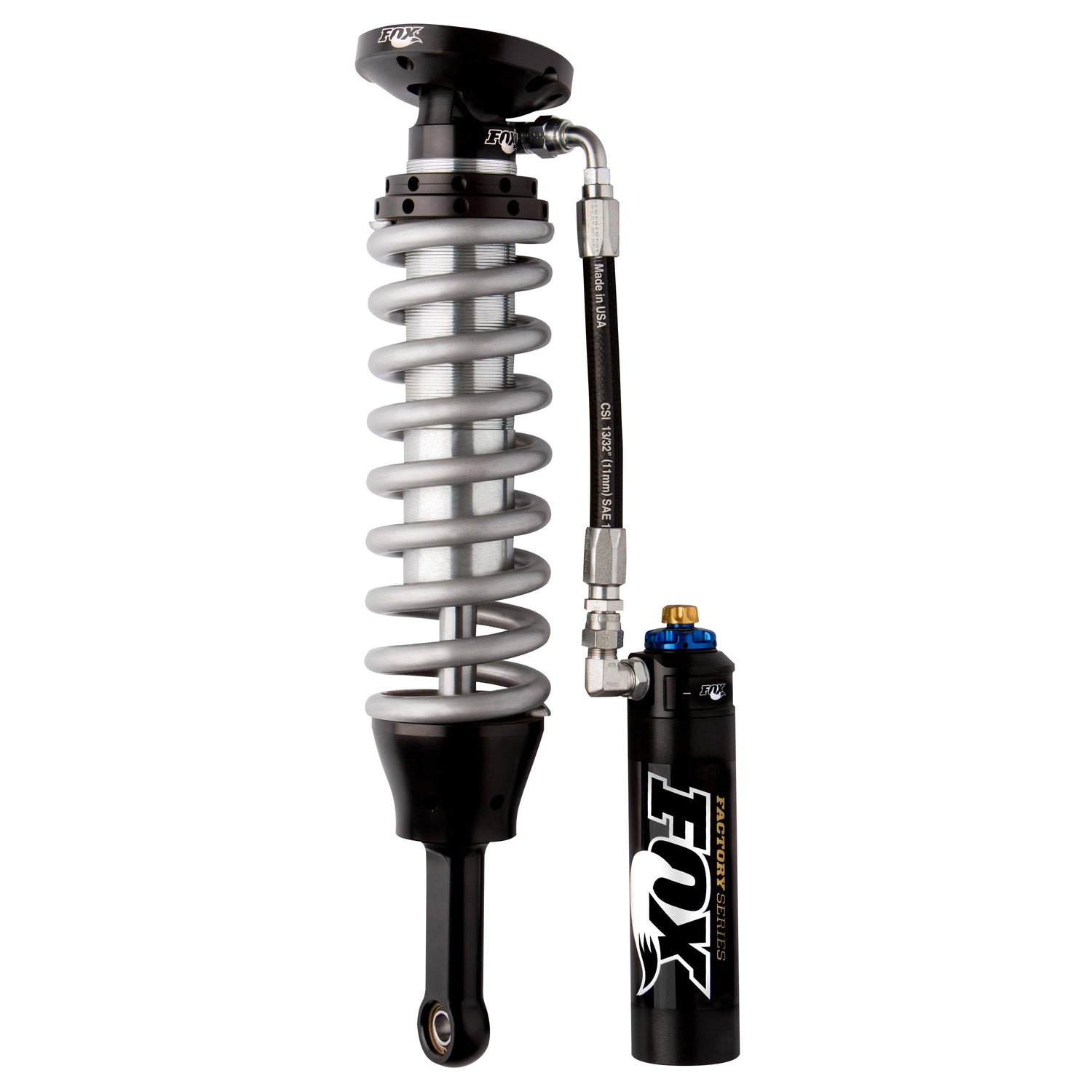

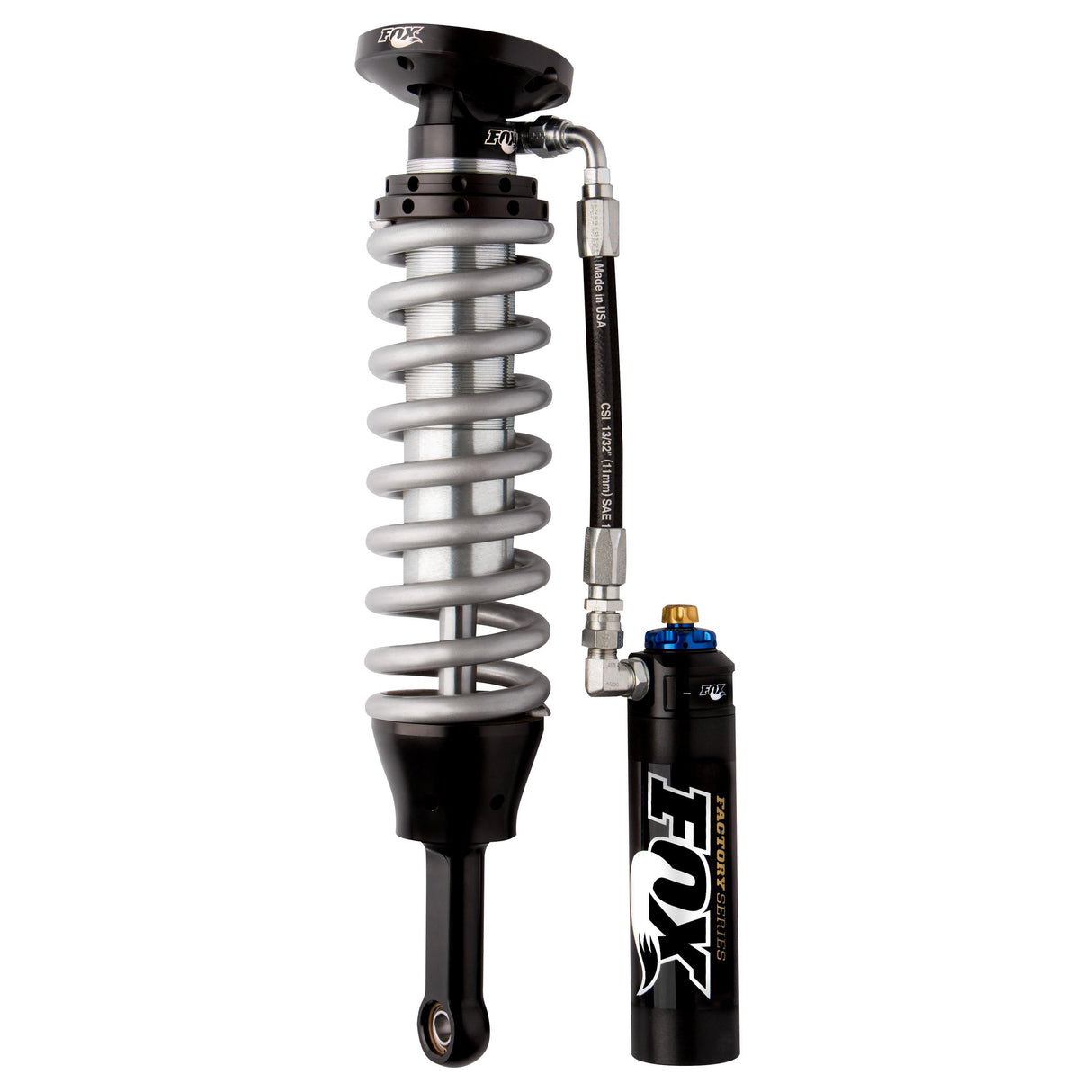

2012-2018 Ranger 2.5 Series 0-2" Lift Factory Race Front Coilover w/ DSC (883-06-093)

Description

Note: T6 Hi Rider Models Only

These FOX Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box. Experience the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

Part Number: 883-06-093

Features

• Durable Zinc Plated Seamless Alloy Body
• External Reservoir System Dissipates Heat Fast

• Zinc-plated and double-clear coated for long lasting finish
• 2.5" Smooth bore and honed seamless alloy Reservoir
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated steel Shafts
• 6061-T6 hard-anodized, high flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical

Specs:

• Extended Length: 20.7"
• Compressed Length: 15.6"
• Top Mount: TM
• Bottom Mount: Eylet
• Travel: 5.1"
• Front Lift Height: 0-2"
