2012-2012 Ram 1500 4" Lift Kit with FOX 2.0 Performance Shocks (BDS1752FS)

BDS steps up the performance and capability of the 2012 Ram 1500 4WD with a 4" suspension lift that clears up to 35" tires. Up front it runs top-mounted strut spacers, high-arched 1/4" steel crossmembers, multi-piece differential relocation brackets, and heavy-duty skid plates, with CNC-machined ductile iron steering knuckles and replacement tie rod ends to correct steering geometry and keep ESC compatibility. The rear uses a 2" coil spacer, upper control arm and track bar relocation brackets, bump stop extensions, and sway bar links, topped with your choice of NX2 nitrogen gas shocks or FOX 2.0 IFP performance shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Choice of BDS NX2 gas or FOX 2.0 IFP performance series gas shocks
• Factory Protection Plus drivetrain warranty included
• Kit is FMVSS No. 126 compliant
• Full replacement progressive-rate rear coil springs built to handle heavy loads without sagging
• Shot peened for increased tensile strength and wheel travel; powder coated for durability
• FOX 2.0: 2" Impact extruded aluminum body, IFP monotube design
• CNC-machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston, application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Spacers
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• These trucks vary from 1" to 3" tail high from the factory. Measure before ordering. BDS offers 3" rear coil springs (standard) or 2" rear coil spring spacers; the 022209, 022309, and 022509 can be substituted to achieve the desired stance.
• Not recommended for AWD models.
• Stock 17" and 18" wheels cannot be re-installed. Stock 20" can be reinstalled with a factory tire.
• The rack and pinion steering is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. Larger tire diameter or reduced wheel backspacing increases sensitivity and can cause minor steering wheel shimmy.

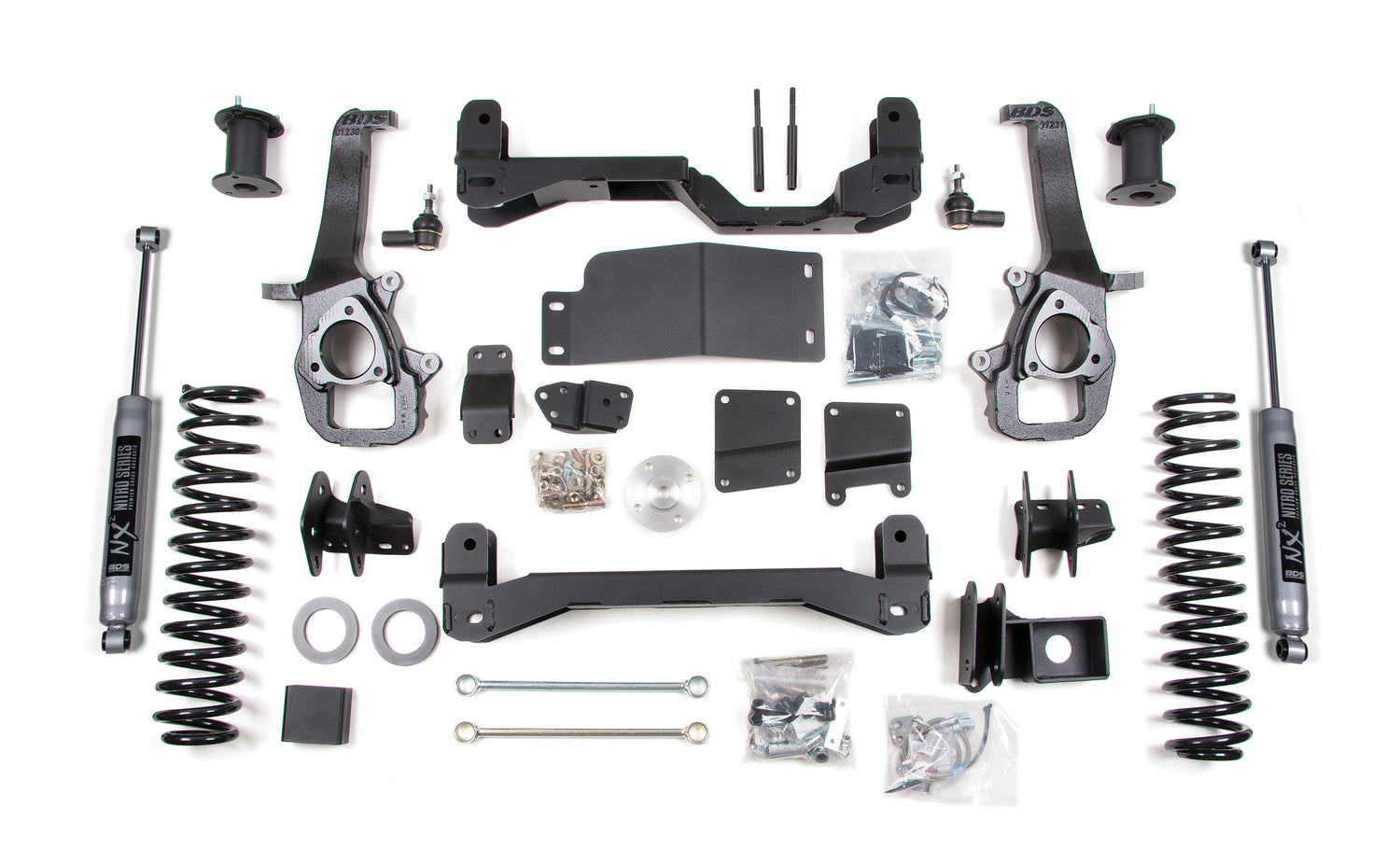

Includes

• BDS022309, 09-18 Dodge 1500 3in Rear Box Kit (UPC 658848615353)
• BDS022402, 2012 Dodge 1500 4 Inch Frnt Box Kit 3of4 (UPC 658848615377)
• BDS022620, 06-10 Dodge 1500 6 Inch Front Box Kt (1of4) (UPC 658848615452)
• BDS022621, 06-10 Dodge 1500 6 Inch Front Box Kt (2of4) (UPC 658848615469)
• BDS022625, 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4 (UPC 658848615490)
• FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 (UPC 692878899062)
