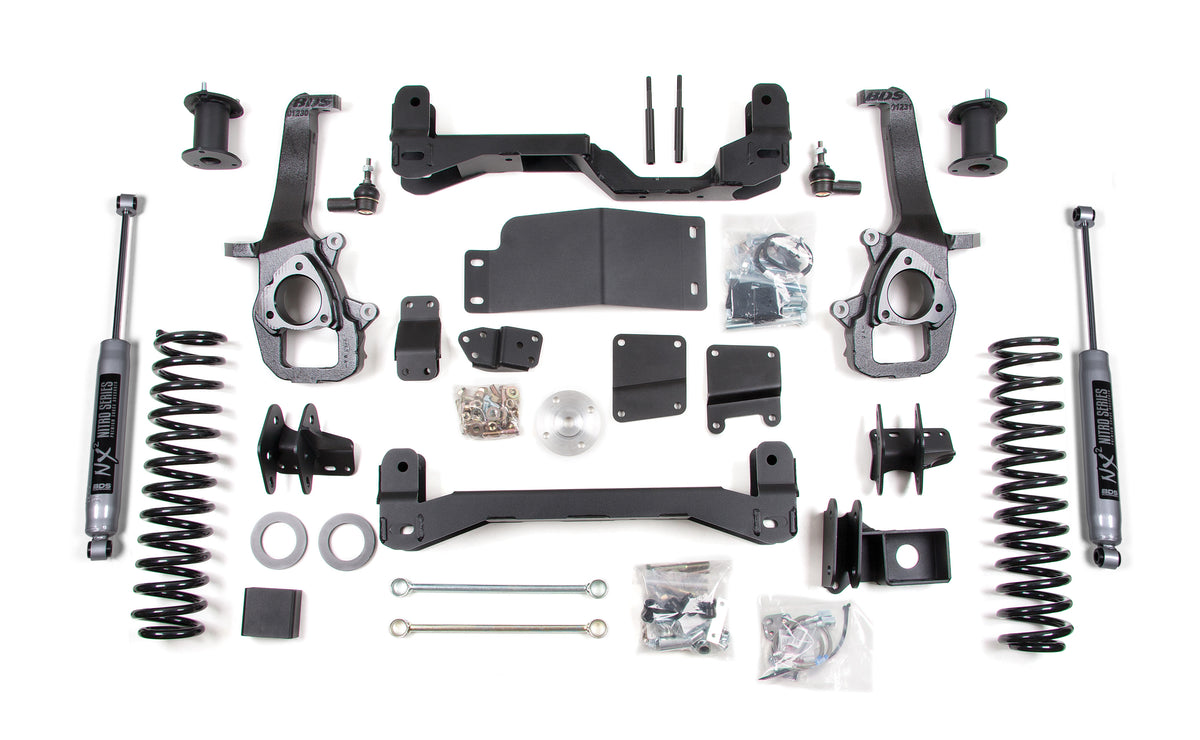

2012-2012 Ram 1500 4" Lift Kit with NX2 Nitro Shocks (BDS664H)

This BDS 4" suspension lift kit steps up the 2012 Ram 1500 4WD with clearance for up to 35" tires. Up front it uses top-mounted strut spacers, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets and HD skid plates, plus CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility. The rear runs a 2" coil spacer, upper control arm relocation brackets to correct pinion angle, a track bar relocation bracket, bump stop extensions and sway bar links. This kit ships with NX2 Nitro shocks: nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving.

These trucks vary from 1" to 3" tail high from the factory. BDS offers 3" rear coil springs (standard) or 2" rear coil spring spacers, so measure your truck and order the rear lift height that matches your desired stance.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• NX2 Nitro gas shocks for improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• Heavy-duty steel construction with powdercoat finish
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• FMVSS No.126 Compliant

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Spacers
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• These trucks vary from 1 inch to 3 inch tail high from the factory. Measure your vehicle before ordering. The 022209, 022309, and 022509 can all be substituted to achieve the desired stance.
• The rack and pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. Larger tire diameter and/or reduced wheel backspacing increases sensitivity and can cause minor steering wheel shimmy.
• Not recommended for AWD models.
• Stock 17 inch and 18 inch wheels cannot be re-installed. Stock 20 inch can be reinstalled with factory tire.

Includes

• BDS022209, 09-12 Dodge 1500 2 Inch Rear Spacer Kit (UPC 658848615315)
• BDS022402, 2012 Dodge 1500 4 Inch Frnt Box Kit 3of4 (UPC 658848615377)
• BDS022620, 06-10 Dodge 1500 6 Inch Front Box Kt (1of4) (UPC 658848615452)
• BDS022621, 06-10 Dodge 1500 6 Inch Front Box Kt (2of4) (UPC 658848615469)
• BDS022625, 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4 (UPC 658848615490)
• BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (UPC 711745609679)
