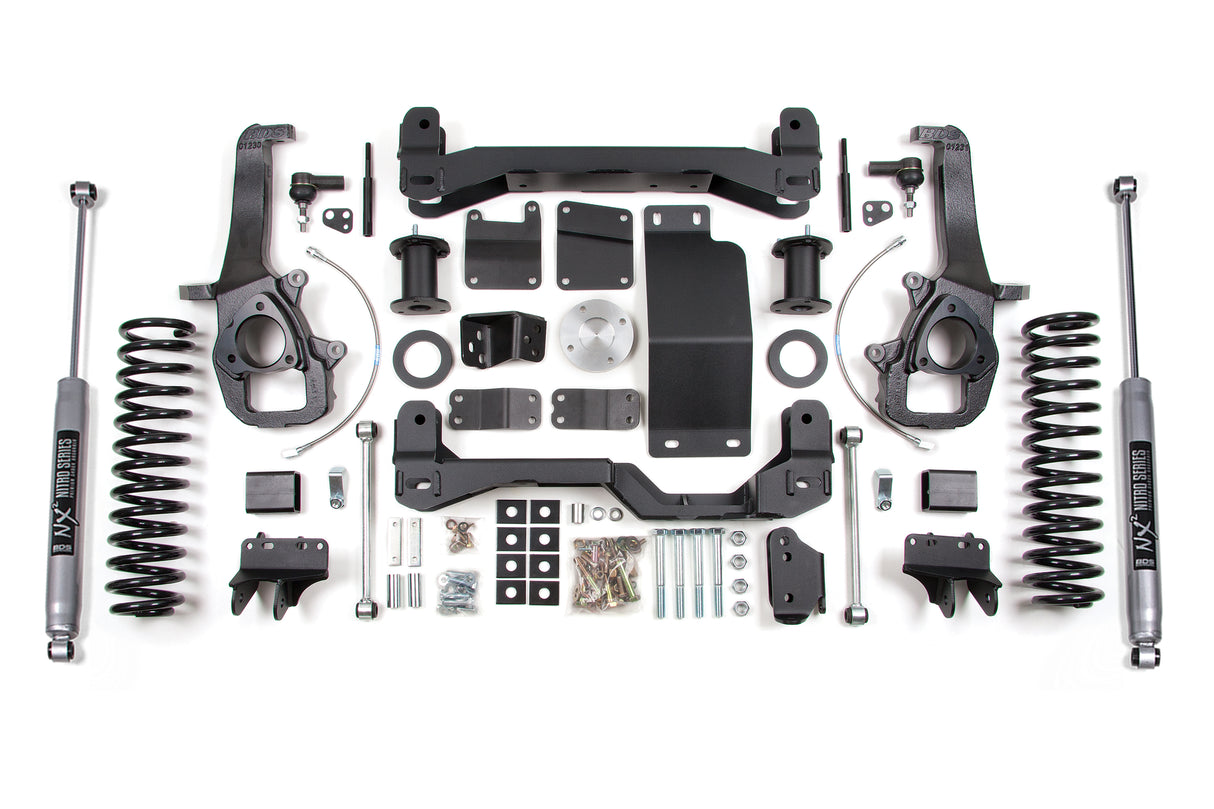

2012-2012 Ram 1500 6" Lift Kit with NX2 Nitro Shocks (BDS663H)

BDS steps up your 2012 Ram 1500 4WD with this 6" suspension lift kit, with clearance for up to 37" tires. The high-clearance design improves ground clearance, strength, and offroad protection while correcting suspension and steering geometry for solid on-road handling. Up front it uses top mounted strut spacers, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates, with CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility, plus sway bar drops, bump stop extensions, stainless braided brake lines, and CV spacers. The rear uses progressive rate Pro-Ride coil springs, upper control arm relocation brackets, a track bar relocation bracket, bump stop extensions, sway bar links, and your choice of NX2 Nitro or FOX 2.0 IFP shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX performance series IFP gas shocks for improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• FMVSS No.126 Compliant
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x13.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• THIS KIT DOES NOT FIT 2013 MODELS.
• These trucks vary from 1 inch to 3 inch tail high from the factory. Be sure to measure your vehicle before ordering. The 022209, 022309, and 022509 can all be substituted to achieve the desired stance.
• 3 inch coil springs: use if your vehicle is 3 inch tail high from the factory.
• 5 inch coil springs: use if your vehicle is level to 1 inch tail high from the factory.
• The rack and pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. Larger tire diameter and/or decreased wheel backspacing can cause minor steering wheel shimmy.
• Not recommended for AWD models.
• Stock 17 inch and 18 inch wheels cannot be reinstalled. Stock 20 inch can be reinstalled with a factory tire.
• TRX models will achieve approximately 1 inch of additional lift. This lift is not recommended for use on TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider the 4 inch lift system for 5 inch of lift or replace the TRX struts with standard struts for use with this system.
• Will not fit adjustable air suspension equipped models.

Includes

• BDS022309, 09-18 Dodge 1500 3in Rear Box Kit (UPC 658848615353)
• BDS022620, 06-10 Dodge 1500 6 Inch Front Box Kt (1of4) (UPC 658848615452)
• BDS022621, 06-10 Dodge 1500 6 Inch Front Box Kt (2of4) (UPC 658848615469)
• BDS022624, 2012 Dodge 1500 6 Inch Frnt Box Kit 3 of 4 (UPC 658848615483)
• BDS022625, 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4 (UPC 658848615490)
• BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (UPC 711745609679)
