2013-2023 Ram 1500 4" Lift Kit with FOX 2.0 Performance Shocks (BDS670FS)

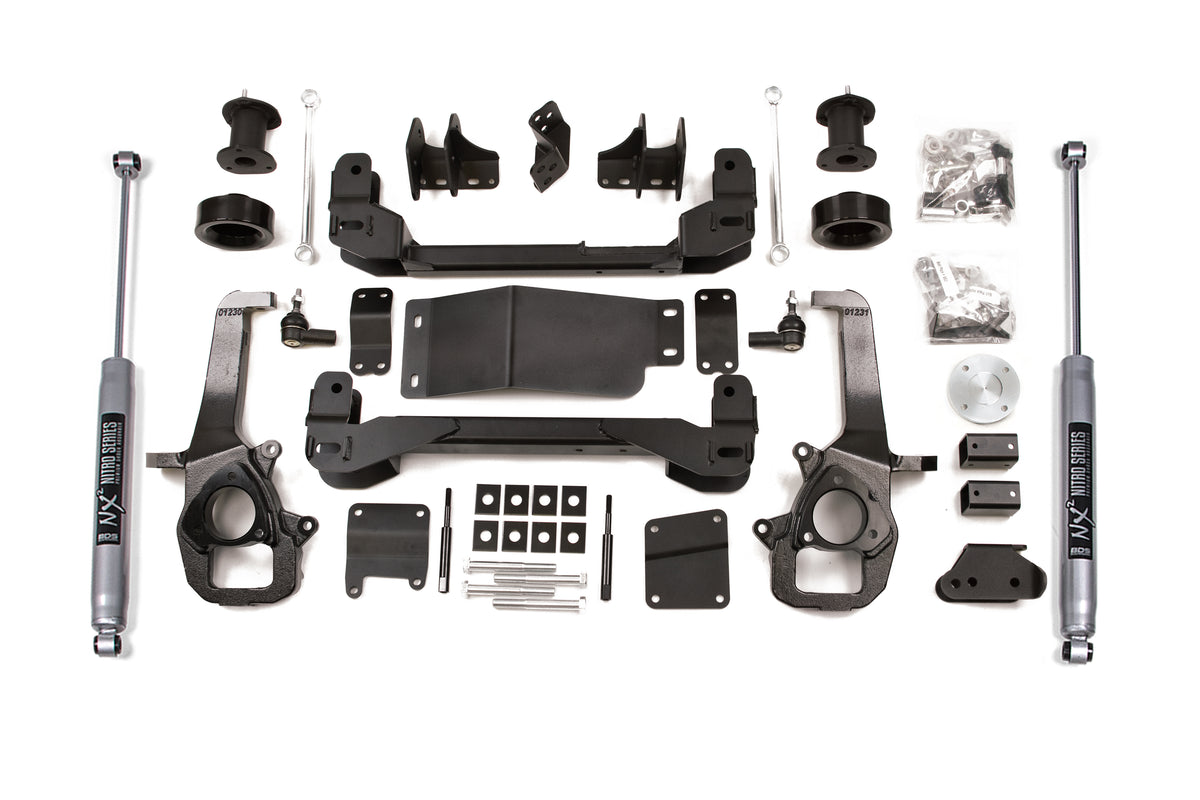

This BDS 4" suspension lift kit steps up the 2013-2023 Ram 1500 4WD with clearance for up to 35" tires. Up front it uses top-mounted strut spacers, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets and HD skid plates, plus CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility. The rear runs a 2" coil spacer, upper control arm relocation brackets to correct pinion angle, a track bar relocation bracket, bump stop extensions and sway bar links. This kit ships with FOX 2.0 Performance Series shocks: 2" extruded aluminum body, internal floating piston monotube design, 5/8" hard chrome heat-treated shaft and application-specific valving.

These trucks vary from 1" to 3" tail high from the factory. BDS offers 3" rear coil springs (standard) or 2" rear coil spring spacers, so measure your truck and order the rear lift height that matches your desired stance.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• FOX 2.0 performance series gas shocks for improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• Heavy-duty steel construction with powdercoat finish
• 2-inch impact extruded aluminum body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving
• Long-lasting clear anodized finish
• FMVSS No.126 Compliant

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• The rack and pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. Larger tire diameter and/or reduced wheel backspacing increases sensitivity and can cause minor steering wheel shimmy.
• Not recommended for AWD models.
• Stock 17 inch and 18 inch wheels cannot be re-installed. Stock 20 inch can be reinstalled with a factory tire.
• Will not fit adjustable air suspension equipped models.
• This kit will bolt on Eco-Diesel models but requires an aftermarket front drive shaft.
• These vehicles vary 1 inch to 3 inch tail high from the factory. Measure and order the appropriate rear lift height for your desired stance.

Includes

• BDS022209, 09-12 Dodge 1500 2 Inch Rear Spacer Kit (UPC 658848615315)
• BDS022402, 2012 Dodge 1500 4 Inch Frnt Box Kit 3of4 (UPC 658848615377)
• BDS022625, 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4 (UPC 658848615490)
• BDS022630, 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4) (UPC 658848615506)
• BDS022631, 2013 DODGE 4WD FRONTBOXKIT (2 OF 4) (UPC 658848615513)
• FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 (UPC 692878899062)
