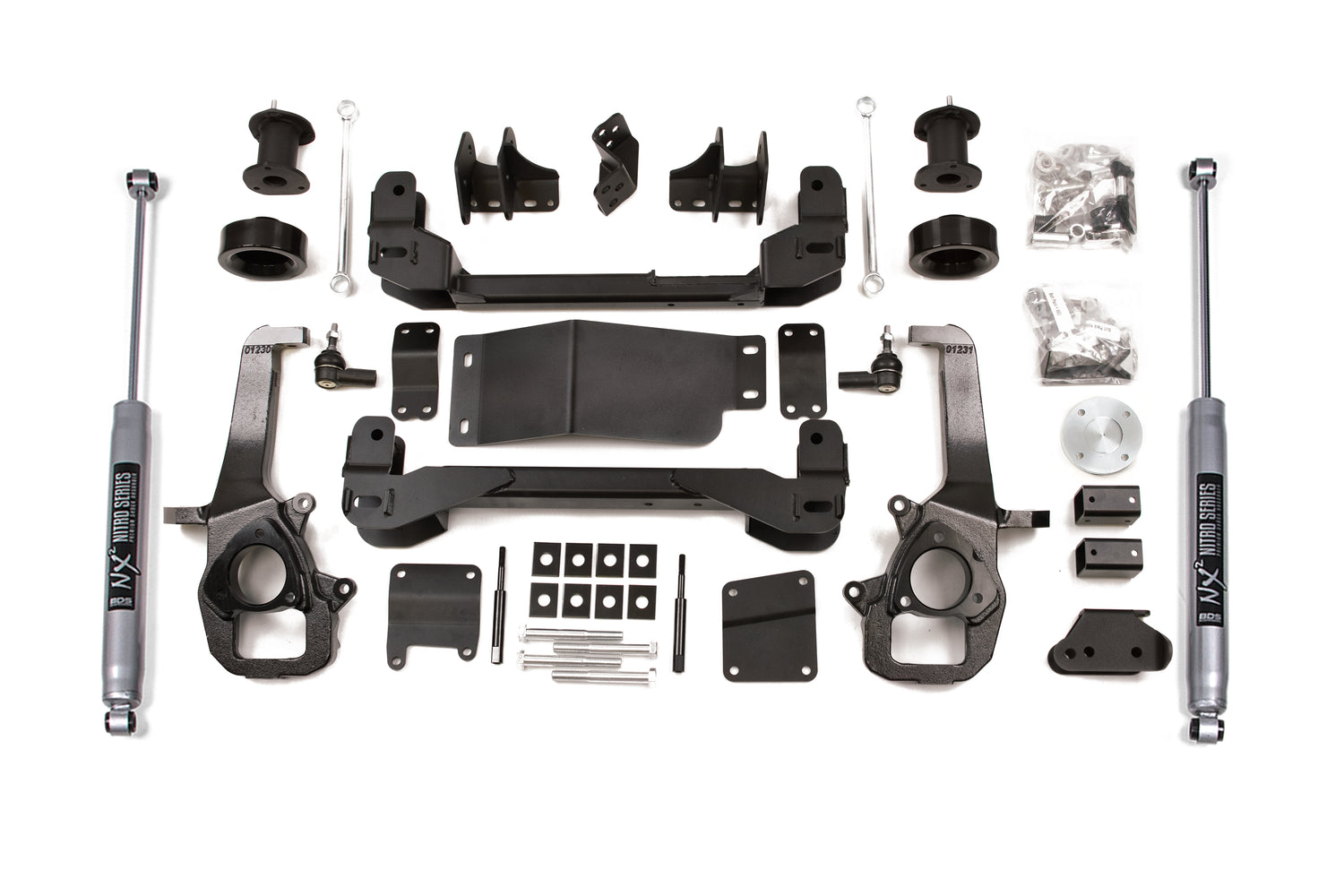

2013-2023 Ram 1500 4" Lift Kit with NX2 Nitro Shocks (BDS670H)

BDS steps up your 2013-2018 Ram 1500 4WD with this 4" suspension lift kit, with clearance for up to 35" tires. The high-clearance design improves ground clearance, strength, and offroad protection while correcting suspension and steering geometry for solid on-road handling. Up front it uses top mounted strut spacers, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates, with CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility, plus sway bar drops, bump stop extensions, stainless braided brake lines, and CV spacers. The rear uses a 2" coil spacer, upper control arm relocation brackets, a track bar relocation bracket, bump stop extensions, sway bar links, and your choice of NX2 Nitro or FOX 2.0 IFP shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX performance series IFP gas shocks for improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• Maintains factory ride quality
• Made with heavy-duty steel construction
• Powdercoat finish for long-lasting durability
• FMVSS No.126 Compliant
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• The rack and pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. Larger tire diameter and/or decreased wheel backspacing can cause minor steering wheel shimmy.
• Not recommended for AWD models.
• Stock 17 inch and 18 inch wheels cannot be reinstalled. Stock 20 inch can be reinstalled with a factory tire.
• Will not fit adjustable air suspension equipped models.
• This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
• These vehicles vary from 1 inch to 3 inch tail high from the factory. BDS offers 3 inch rear coil springs (standard) or 2 inch rear coil spring spacers. Measure your vehicle and order the appropriate rear lift height to get your desired stance.

Includes

• BDS022209, 09-12 Dodge 1500 2 Inch Rear Spacer Kit (UPC 658848615315)
• BDS022402, 2012 Dodge 1500 4 Inch Frnt Box Kit 3of4 (UPC 658848615377)
• BDS022625, 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4 (UPC 658848615490)
• BDS022630, 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4) (UPC 658848615506)
• BDS022631, 2013 DODGE 4WD FRONTBOXKIT (2 OF 4) (UPC 658848615513)
• BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (UPC 711745609679)
