2013-2023 Ram 1500 4" Lift Kit with NX2 Nitro Shocks (BDS1754H)

BDS 4" suspension lift kit for the 2013-2023 Ram 1500, clearing up to 35" tires. The high-clearance front end uses top-mounted strut spacers, 1/4" thick steel crossmembers, a multi-piece differential relocation bracket, and heavy duty skid plates that bolt together into a rigid protective subframe. CNC-machined ductile iron steering knuckles and replacement tie rod ends correct steering geometry and keep the ESC system compliant, joined by sway bar drops, bump stop extensions, stainless braided brake lines, and CV spacers. The rear runs a 2" coil spacer, upper control arm and track bar relocation brackets, bump stop extensions, and sway bar links.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Progressive rate coils ride well loaded or unloaded and handle heavy loads without sagging
• Shot peened and powder coated for spring life and durability
• BDS NX2 nitrogen-charged gas shocks
• Twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston and self-lubricating seals
• Silver powder coat finish
• FMVSS No.126 compliant
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• Not recommended for AWD models.
• Will not fit adjustable air suspension equipped models.
• This kit will bolt on EcoDiesel models but requires an aftermarket front driveshaft.
• The rack and pinion steering is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination; larger tire diameter and/or reduced backspacing increase sensitivity and can cause minor steering wheel shimmy.
• Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be reinstalled with a factory tire.

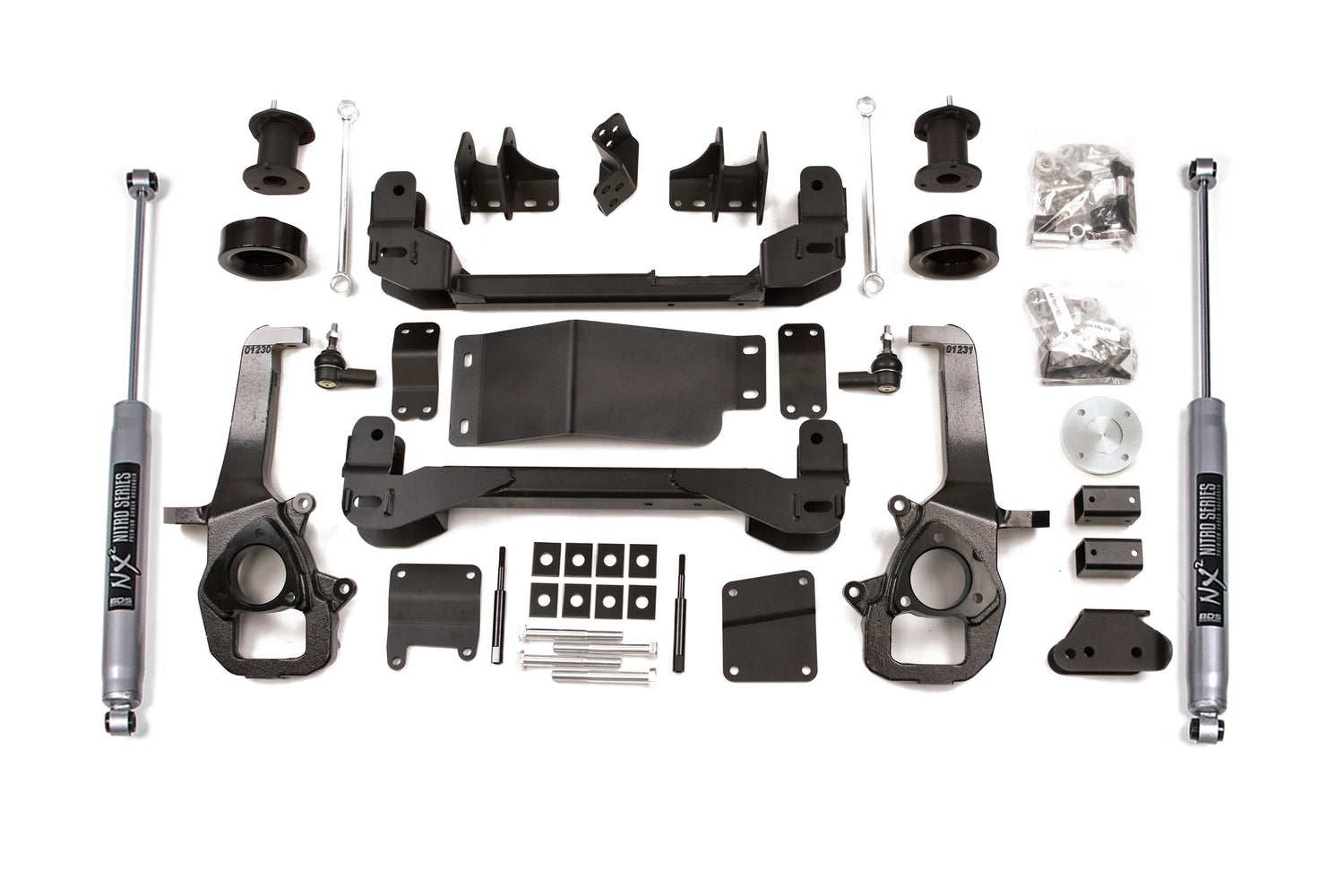

Includes

• BDS022309, 09-18 Dodge 1500 3in Rear Box Kit (UPC 658848615353)
• BDS022402, 2012 Dodge 1500 4 Inch Frnt Box Kit 3of4 (UPC 658848615377)
• BDS022625, 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4 (UPC 658848615490)
• BDS022630, 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4) (UPC 658848615506)
• BDS022631, 2013 DODGE 4WD FRONTBOXKIT (2 OF 4) (UPC 658848615513)
• BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (UPC 711745609679)
